SPECIFICATIONS
Aerial Photography: Yes
Anti-wind Ability: As the Manual
Brand Name: FEICHAO
Camera Mount Type: Other
Charging Time: As the Manual
Control Channels: 4 channels
Controller Battery: As the Manual
Controller Mode: MODE2
Drone Weight: As the Manual
Features: App-Controlled
Flight Time: 5~10
High-concerned chemical: None
Indoor/Outdoor Use: Indoor-Outdoor
Is Batteries Included: No
Is Electric: No Battery
Material: Plastic
Motor: Brush Motor
Origin: Mainland China
Package Includes: Original Box
Plugs Type: As the Manual
Power Source: Electric
Recommend Age: 14+y
Remote Control: Yes
Remote Distance: As the Manual
State of Assembly: Ready-to-Go
Takeoff Weight: As the Manual
Transit Time (Days): As the Manual
Type: HELICOPTER
Video Capture Resolution: Other

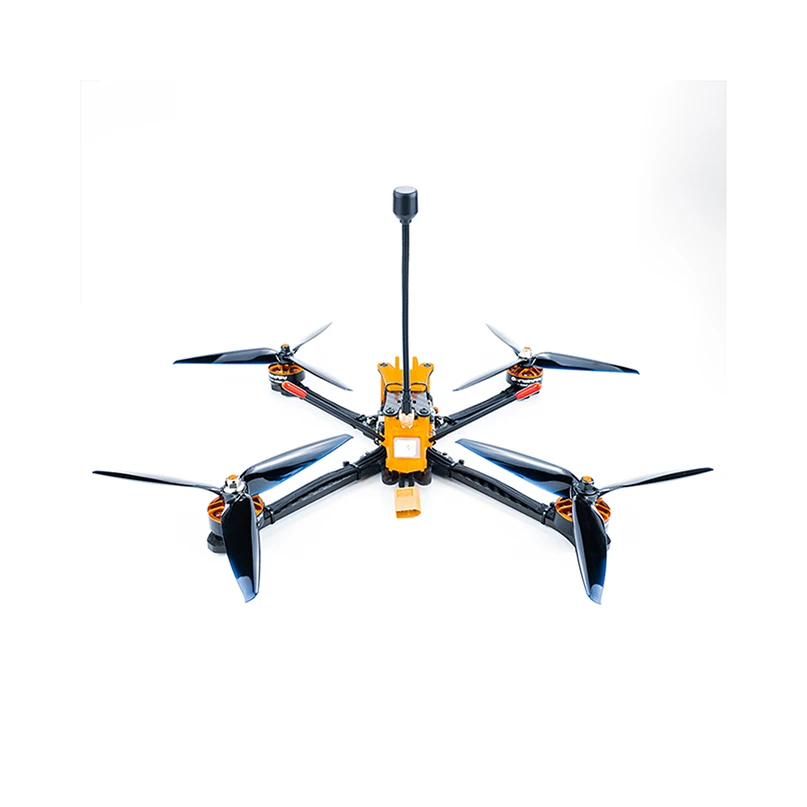

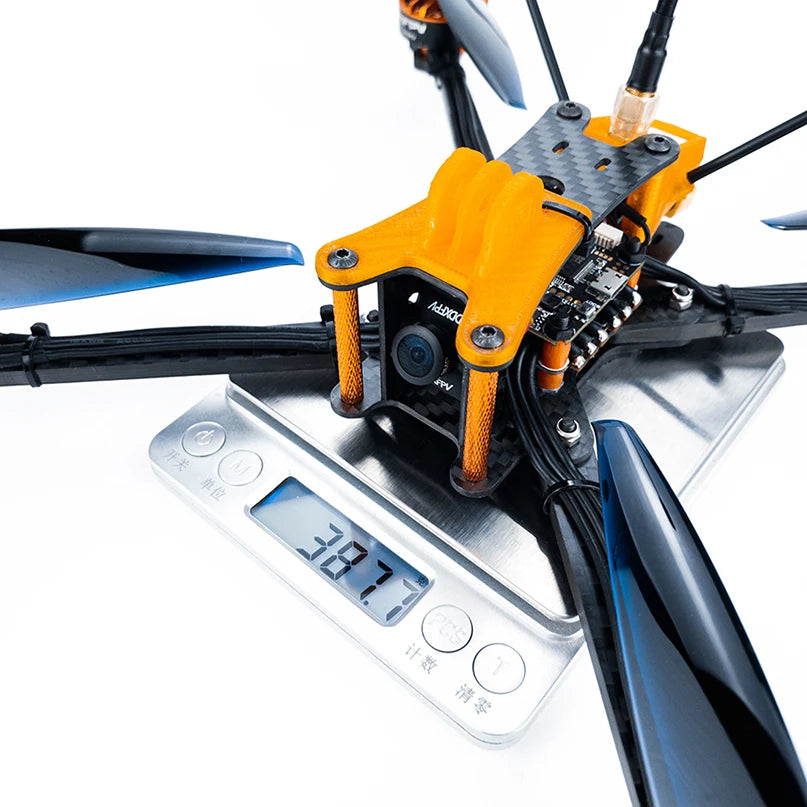

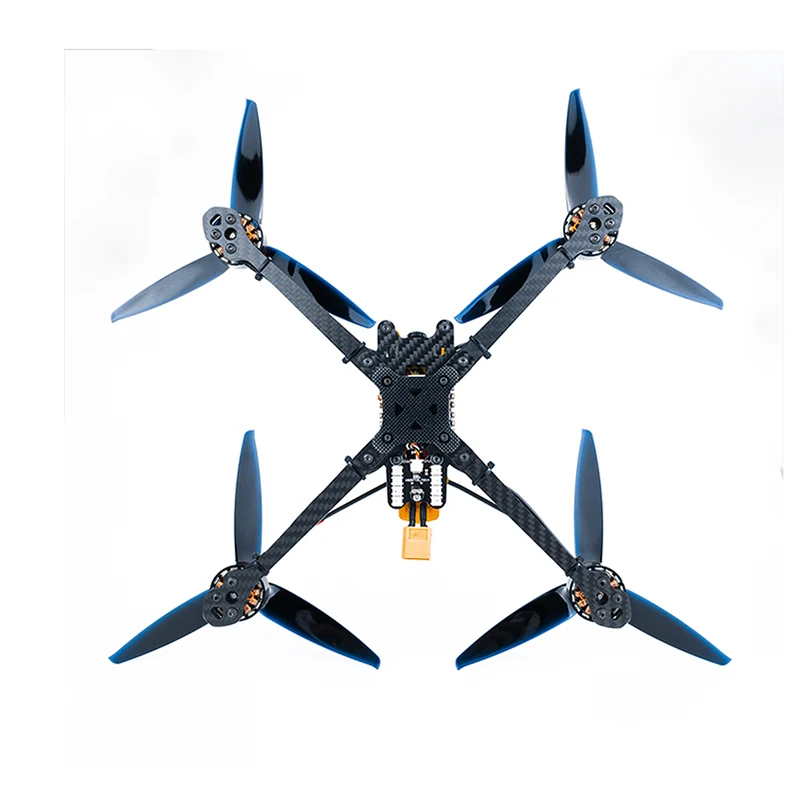

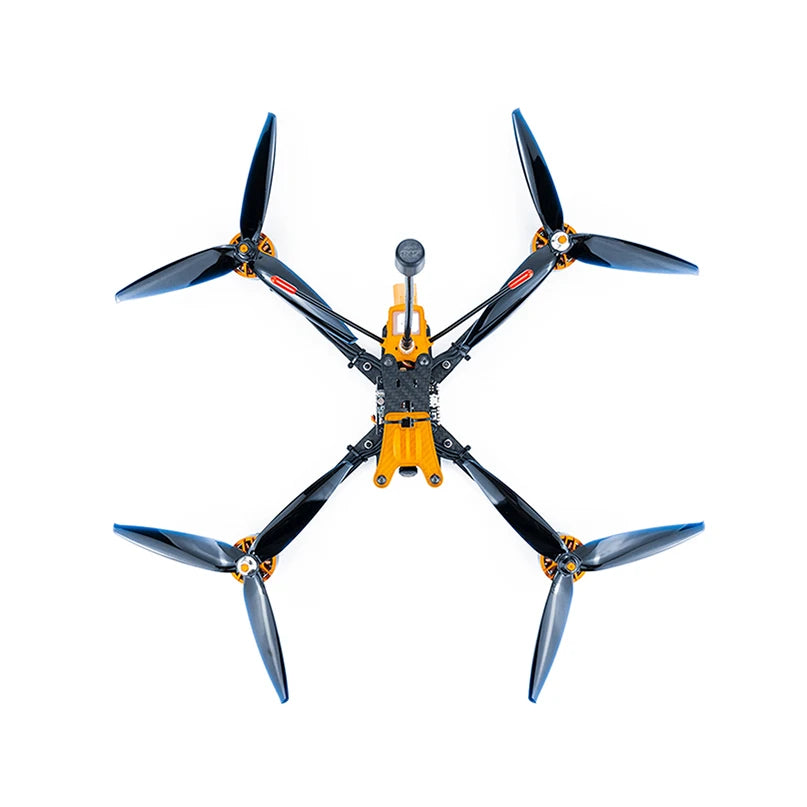

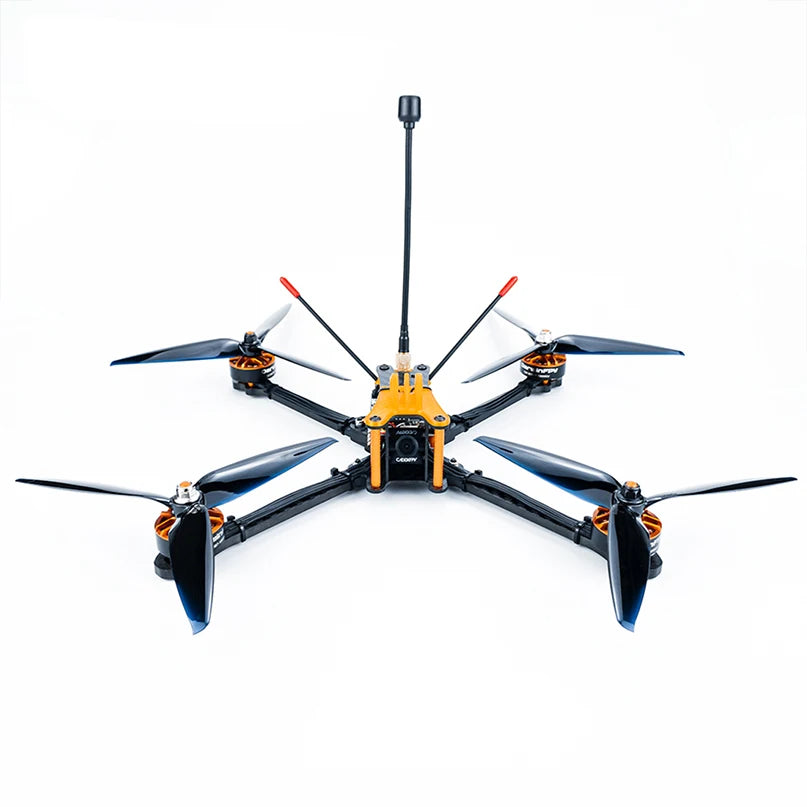

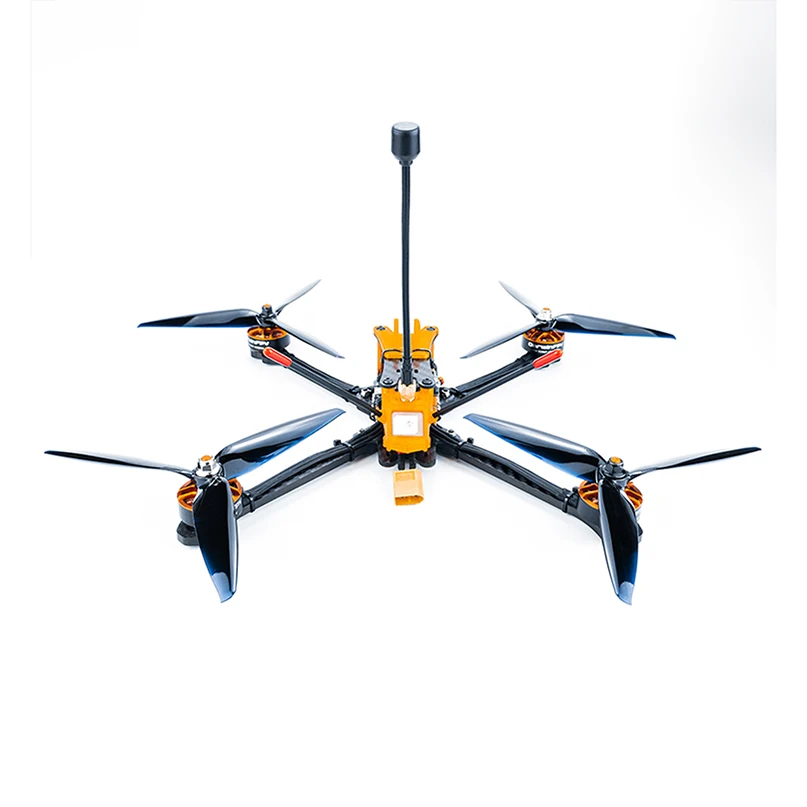

DarwinFPV Darwin129 280mm 7 Inch FPV Drone Quadcopters PNP BNF ELRS 2.4G Receiver F4 OSD 50A BLHeli_S Dshot600 800mW 1200TVL Camera FPV Quadcopter
Darwin129 280mm 7 Inch FPV Drone
Wheel base: 280mm
Darwin129
Frame arm thickness:5mm
Frame kit material: 3K carbon fiber
2507 1800KV 3-5S Brushless Motors
Motor KV:1800KV
Idle Current (Io/10V):0.89A
Lipo Cell:3-5S
Weight:39g
Max Continuous Current:42A
Max Continuous Power:840W
Max thrust:1488g(4S/7")
Configu-ration:12N/14P
Motor Resistance (RM):0.0586Ω
Stator Diameter:25mm
Stator Thickness:7mm
Motor Diameter:30.8mm
Motor Body Length:20mm
Overall Shaft Length:35mm
Prop adapter shaft:M5
Bolt holes spacing:16mm
Bolt thread:M3
Propeller:7"
4IN1 50A BLHeli-S ESC

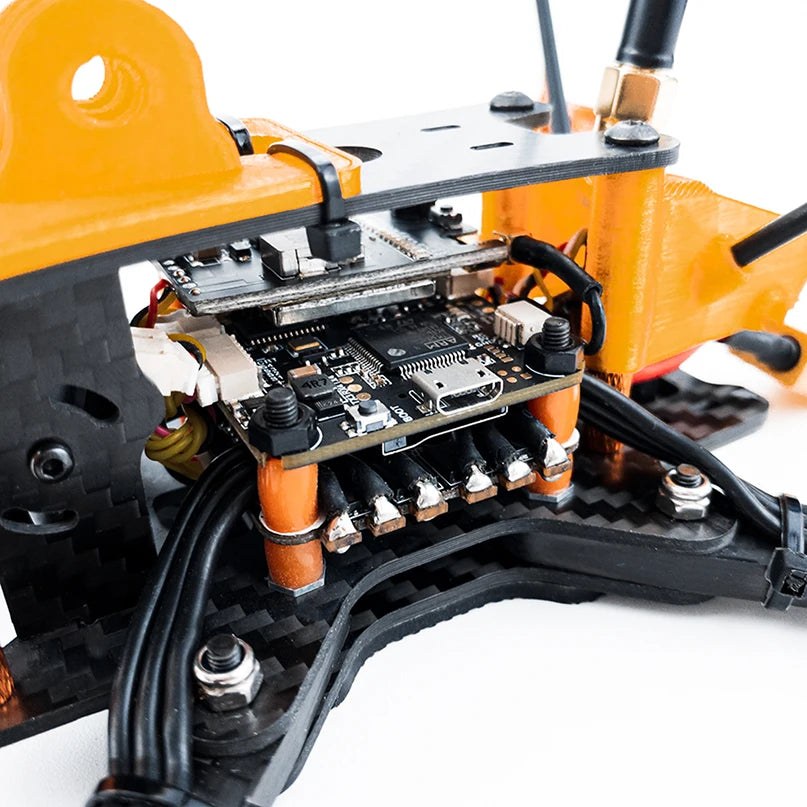

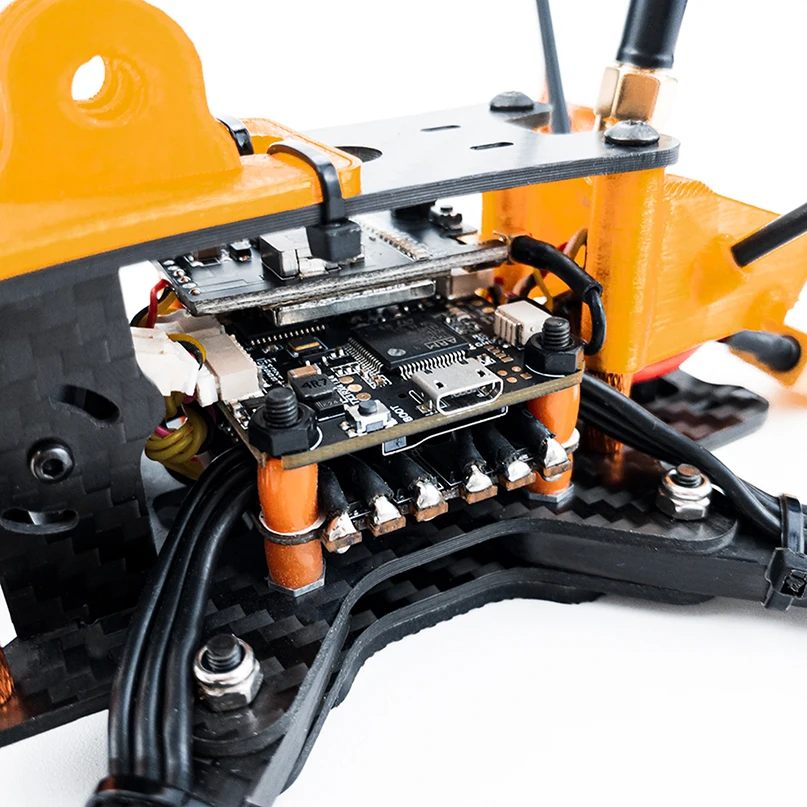

F4-50A stack
Continuous current: 50A
Peak current: 60A(10S)
Lithium battery section number: 2-6S
BEC:5V 2A
ESC weight: 10.8g
Fimware: BL_S
Maximum support throttle signal: DSHOT600
Mounting hole: M3 30.5*30.5mm
F4 Flight controller
Lithium battery section number: 3-6S
BEC: 10V1A,4.5V, 3.3V
MCU: STM32F405
F4 Flight Controller
Gyro: MPU6000
OSD:AT7456E
Firmware: MATEKF405
Weight: 7.2g
Mounting hole: M3 30.5*30.5mm
Support barometer, black box
5.8G 40CH 800MW TX805 FPV Transmitter VTX
Frequency: 5.8G
Channels: 40CH
Input voltage: 7V~24V
5V camera supply:120mA(MAX)----25mW@12V 5V
camera supply: 200mA(MAX)----200mW@12V 5V
camera supply: 300mA(MAX)----600mW@12V5V
camera supply: 350mA(MAX)----800mW@12VExtra
features: Smart audio
Power supply: 5V output for Camera
Output power:25mW/200mW/600mW/800mW
switchable Antenna connector: MMCX
Cable connector: Solder pads
Dimensions: 36mm*22mm*5mm,30.5 stackable hole
Weight: 8g(excluding antenna)
CADDXFPV Turbo Micro F2
Image Sensor:1/3"COMS Sensor
Horizontal Resolution:1200 TVL
TV System:NTSC/PALchangeable
Image:16:9/4:3
WDR:D-WDR
Min, Illumination:0.001Lux F1.2
Lens:2.1mm lens
Synchronization:Intemal
Electronics Shutter:PAL:1/50~100,000;
NTSC:1/60~100,000
S/N Ratio:>52dB(AGC OFF)
Turbo Micro F2
Video Output:CVBS
Audio:YES
Auto Gain Control:YES
BLC:YES
Camera OSD:YES
DNR:2 DNR
Language:ENG/CHN
Image Flip:Support
Day/Night:Auto/Color/B&W
Dimension:19mm*19mm*19mm
Wide Power Input:DC4.5-40V
Work Temperature:-20℃~+60℃
Work Humidity:20%~80%
Weight:5.5g (N.W.)
Color:Black
Darwin M80 GPS
Item Nome:GPS+GLONASS
Power Supply:5V
Support Rate:115200dps
Receiving Sensitivity:Trace-167dBmCapture-160dBm
Size:18mm*18mm*7.1mm

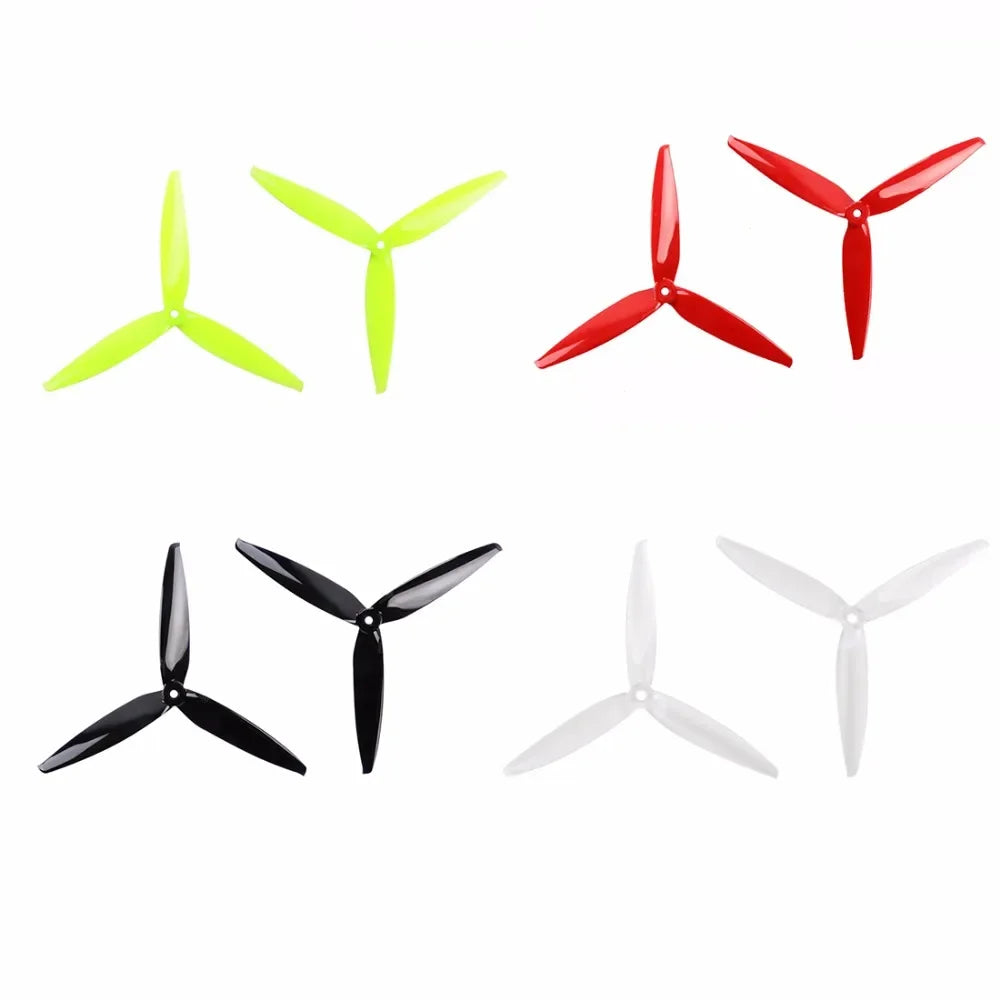

Gemfan Flash 7040-3 Flash Durable 2L2R
Material: PC
Mounting hole:5mm
Center thickness: 8mm
Weight: 7.9g
Color:Black or Transparent at random
Lipo Battery
Recommend 4S
Not included
