SPECIFICATIONS
Aerial Photography: Yes
Aircraf Operating Frequency: 2.4 GHz
Brand Name: DJIRCTOY
Camera Features: 1080p HD Video Recording
Camera Integration: Camera Included
Camera Mount Type: Other
Category: Camera Drone
Connectivity: WiFi
Display Control: No
Drone Weight: 263.8g
Equipped with Aerosol Spraing System/Spread Tank Volume: No
Flight Time: 12min
GPS: No
High-concerned chemical: None
Integrated propeller guard: Include
Max Takeoff Weight: 2-3KG
Max Wind Speed Resistance: < 10 KM/H
Motor Type: Brush Motor
Obstacle avoidance types: Tof Avoidance
Origin: Mainland China
Remote Distance: 50m
Sensor Size: 1/1.5 inches
Video Maximum Resolution[Pixel X Pixel]: 1080i/P（1920*1080）
Origin : Mainland China
Recommend Age : 14+y
Use : Vehicles & Remote Control Toys
Summary:

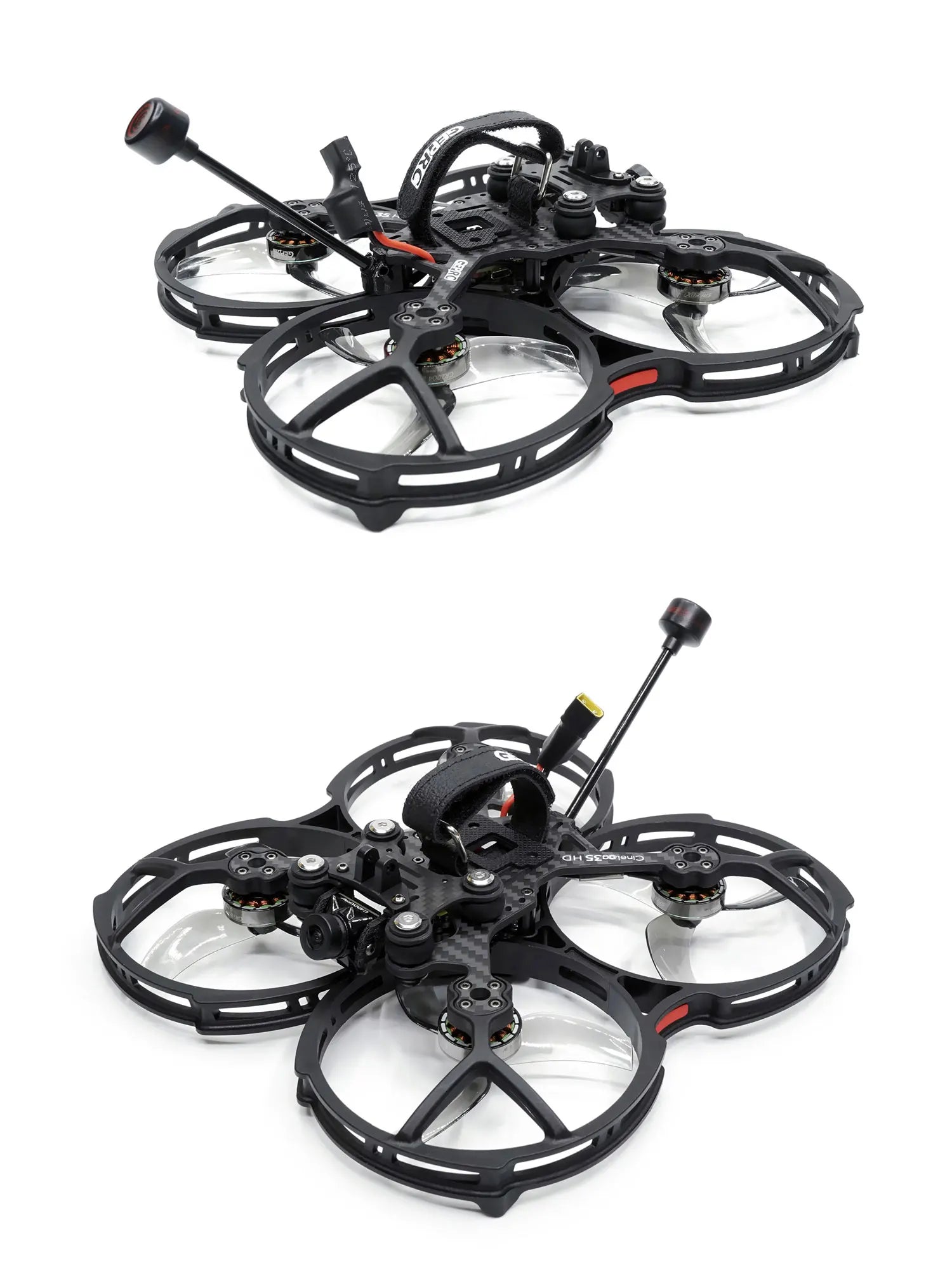

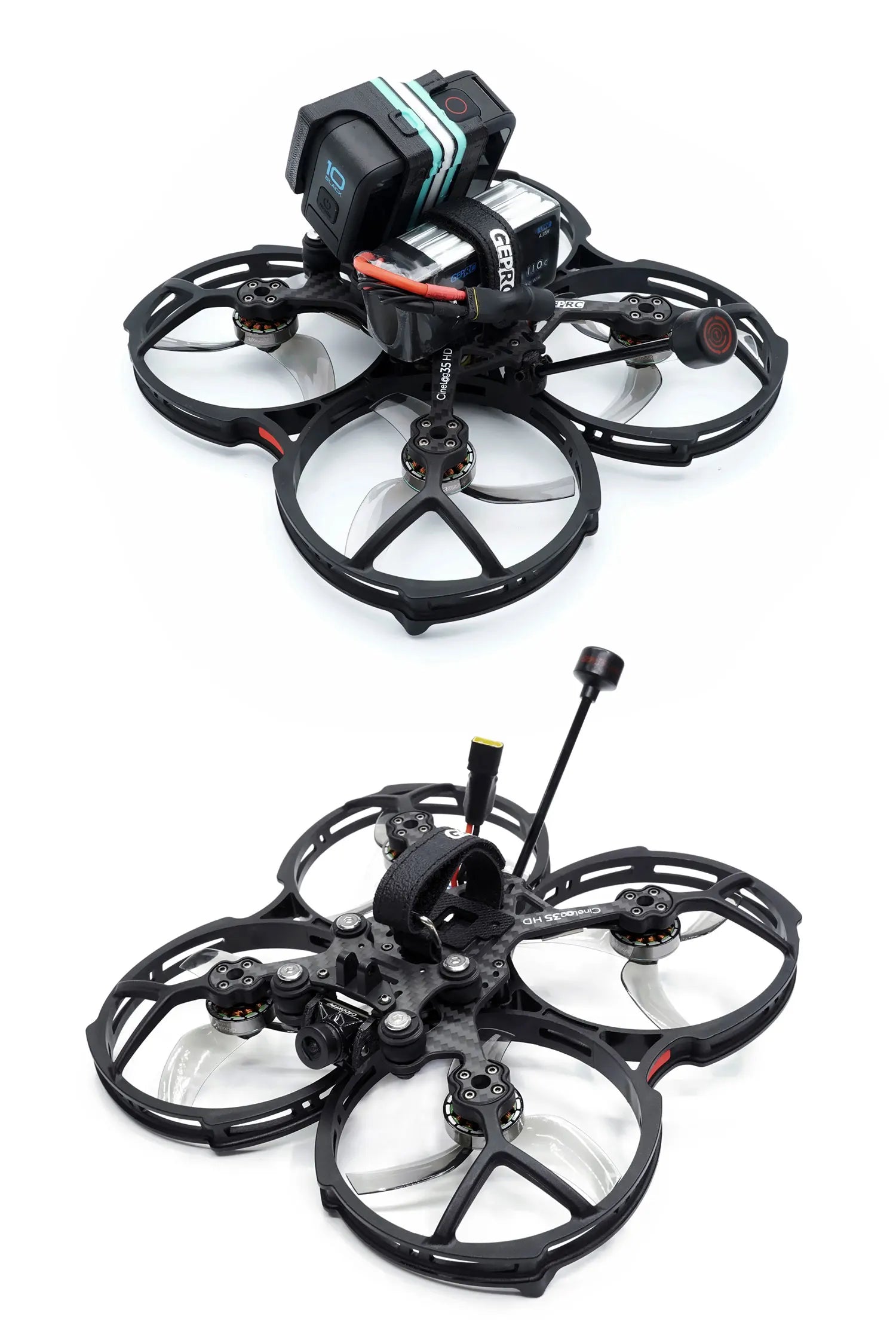

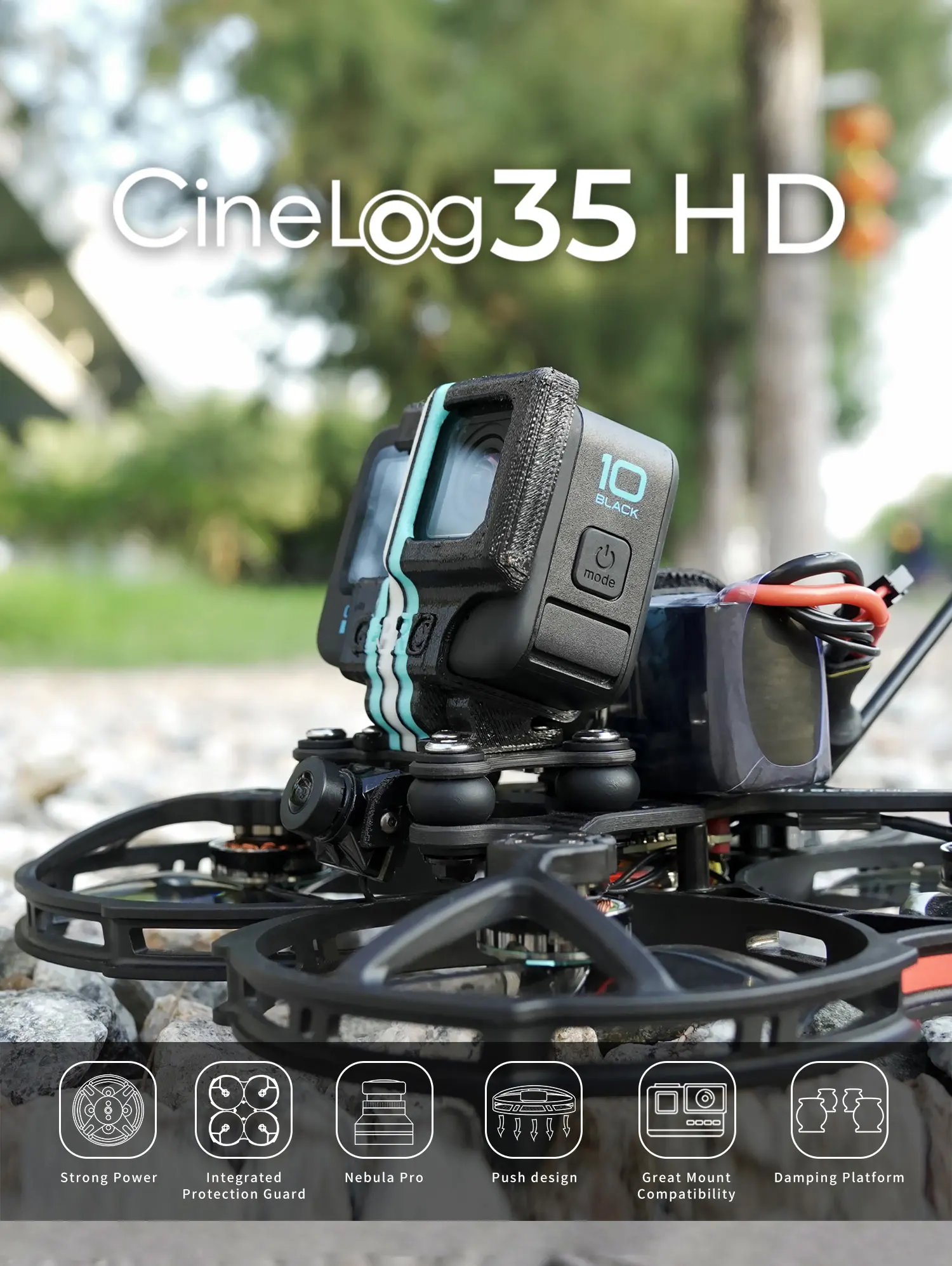

The CineLog35 HD developed by GEPRC specifically for mounting complete GoPro HD camera is now officially released, There are two versions are currently available: HD VISTA Nebula Pro and Analog.

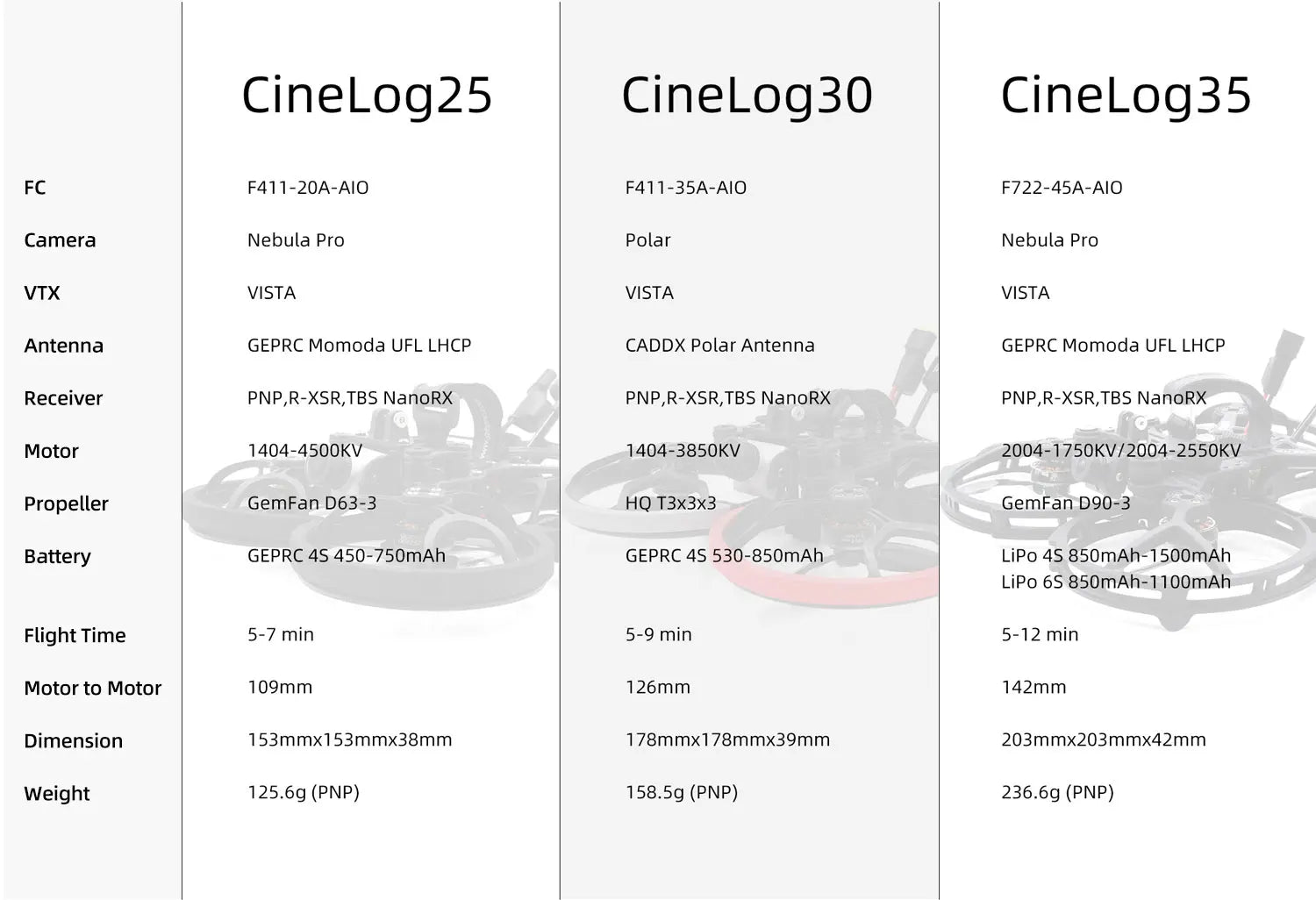

CineLog35 is improved and developed on the basis of CineLog30. Integrated protection guard design, the overall structure is firmer and durable. We adopts latest GEP F722-35A-AIO FC with higher calculation speed and high efficiency, the 5 UART Ports bring perfect performance and sufficient extended function. and the electronic system runs more stable.
CineLog35 equips with VISTA HD VTX and the Nebula Pro camera, and the picture quality is extreme clear and clean. Upgraded power system, 2004 motor with D90-3 propeller has stronger power output. It comes with a 3D Print mount to install the GoPro 9 & GoPro 10. and the Incidental base can carry Insta360 GO2 camera/ Naked GoPro Hero 8/Caddx Peanut camera.
We are pursuing lighter weight, better flying feel, and more extended functions of Quadcopters.It can bring great visual experience and happiness to every pilot.
Feature:

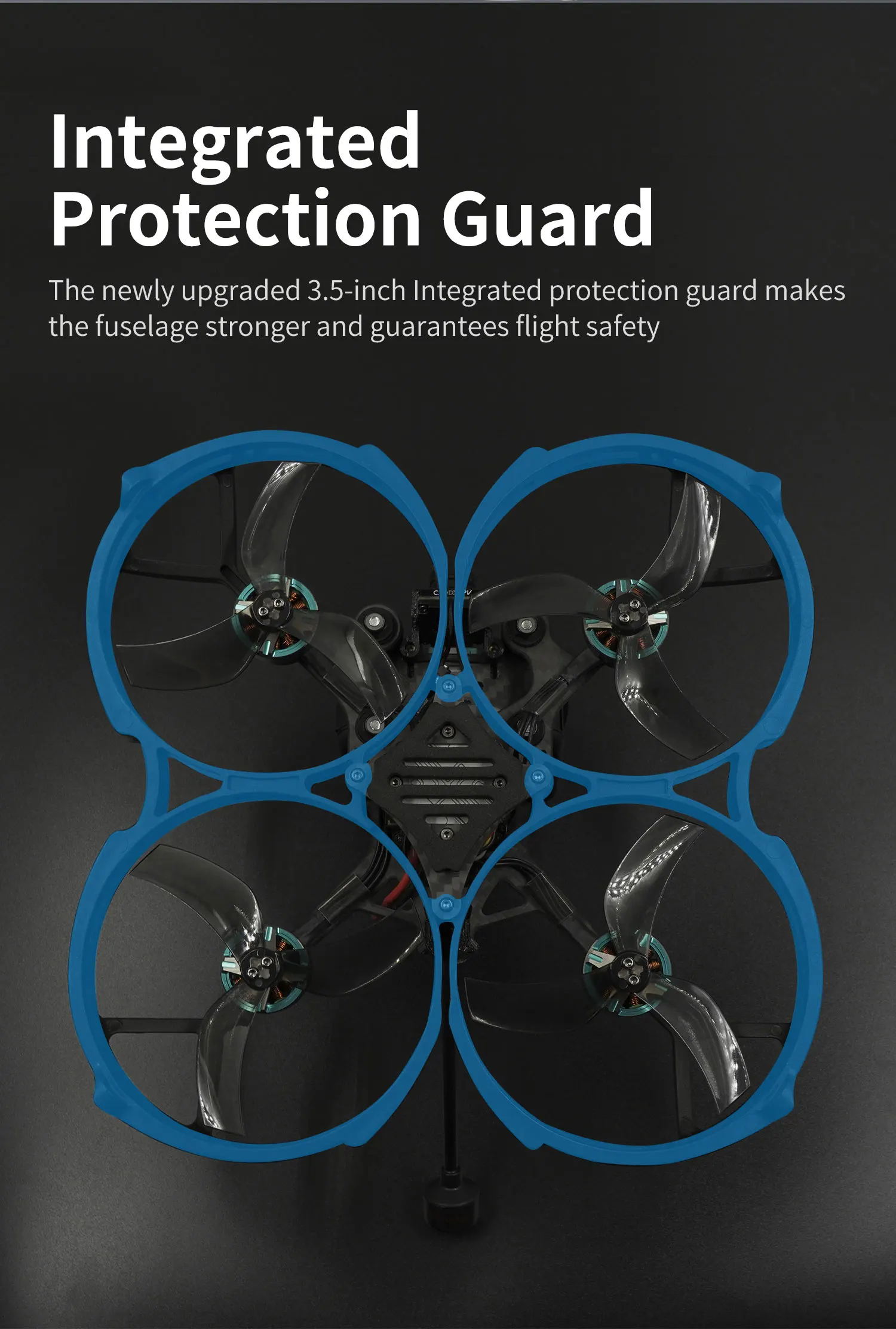

Upgrade 3.5-inch integrated protection guard to ensure flight safety.The new design has significant roles at many aspects such as Low noise, Vibration and noise reduction, durable high-strength structural design.

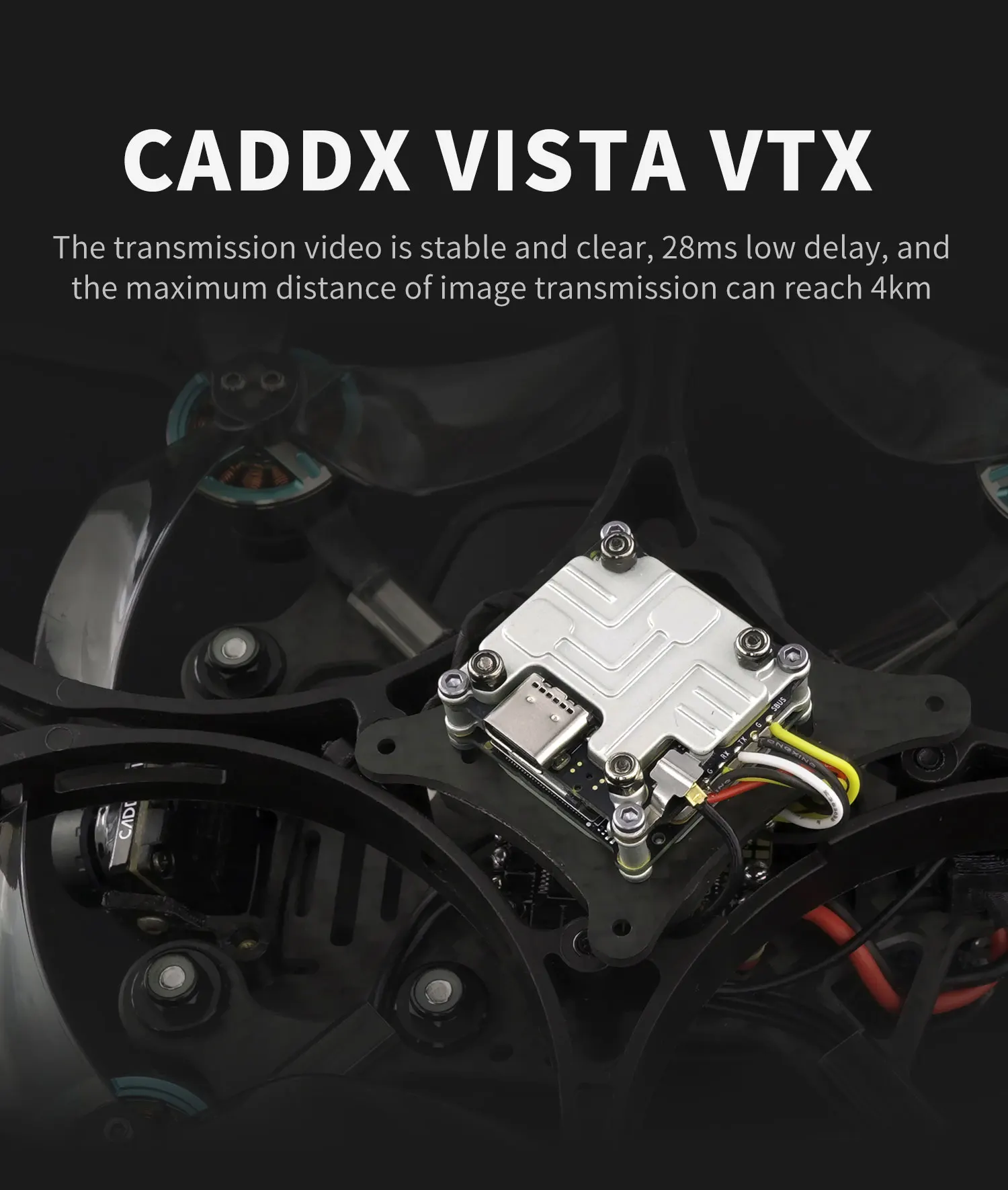

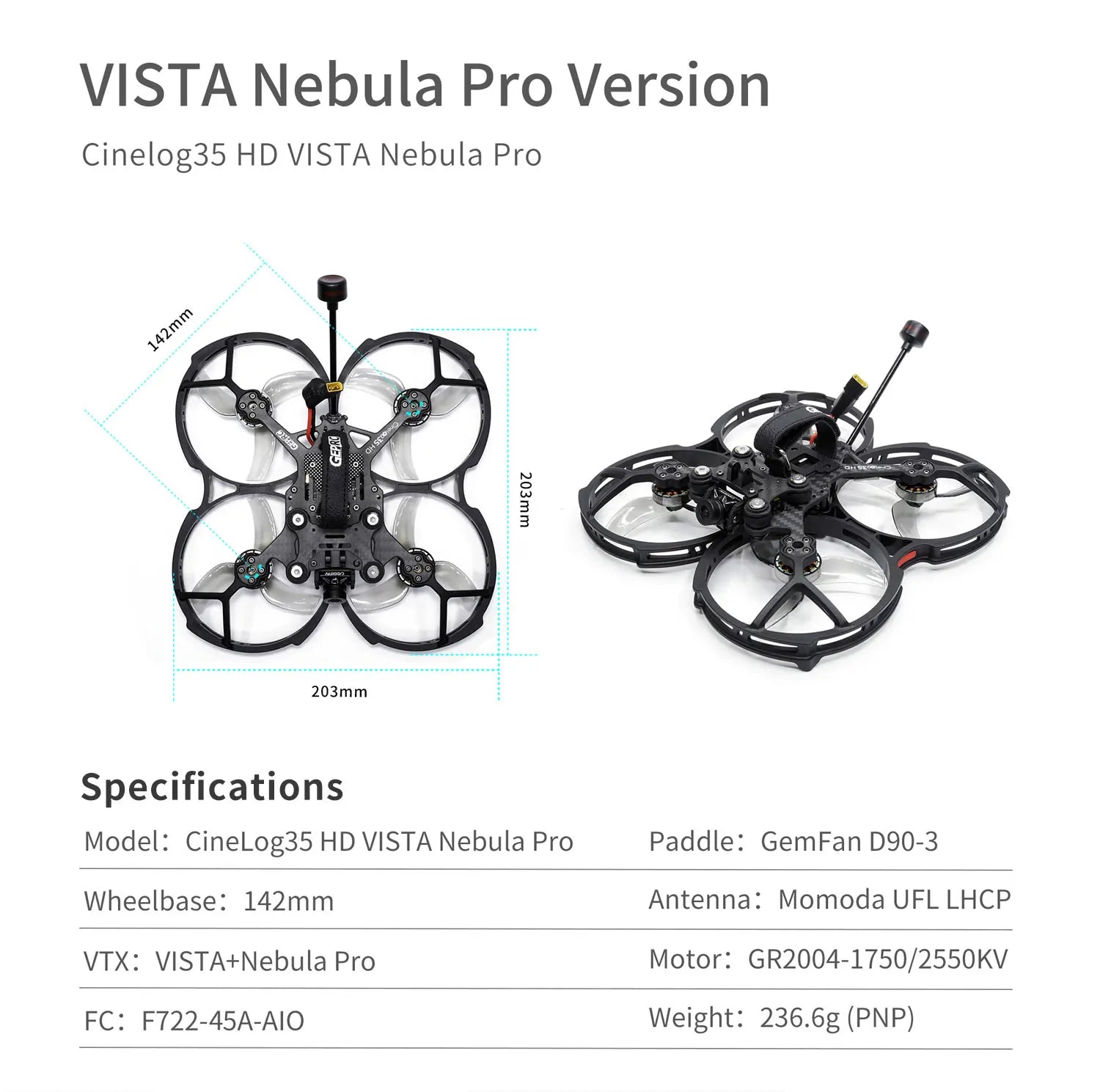

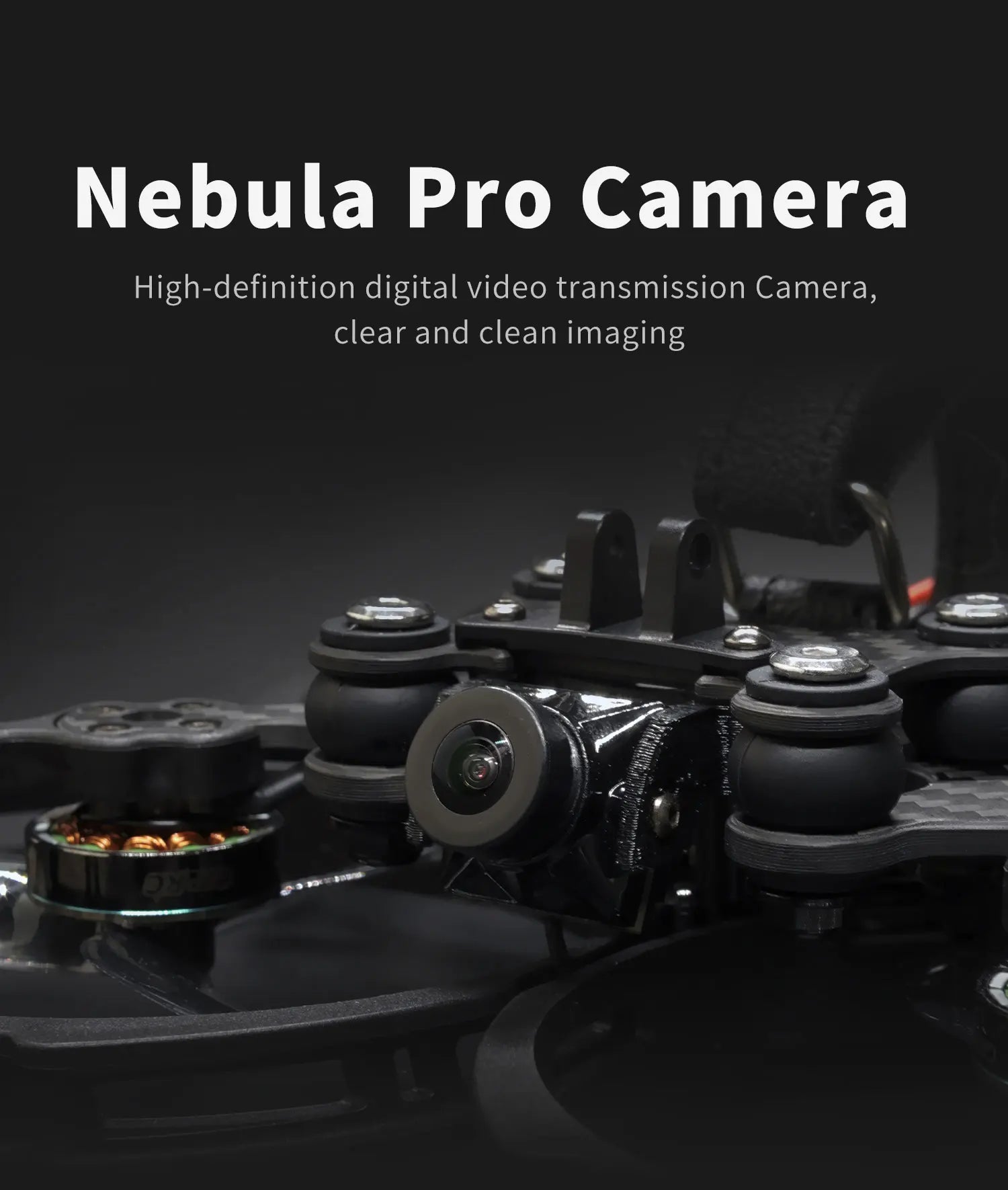

Equipping with VISTA HD VTX and the Nebula Pro camera.

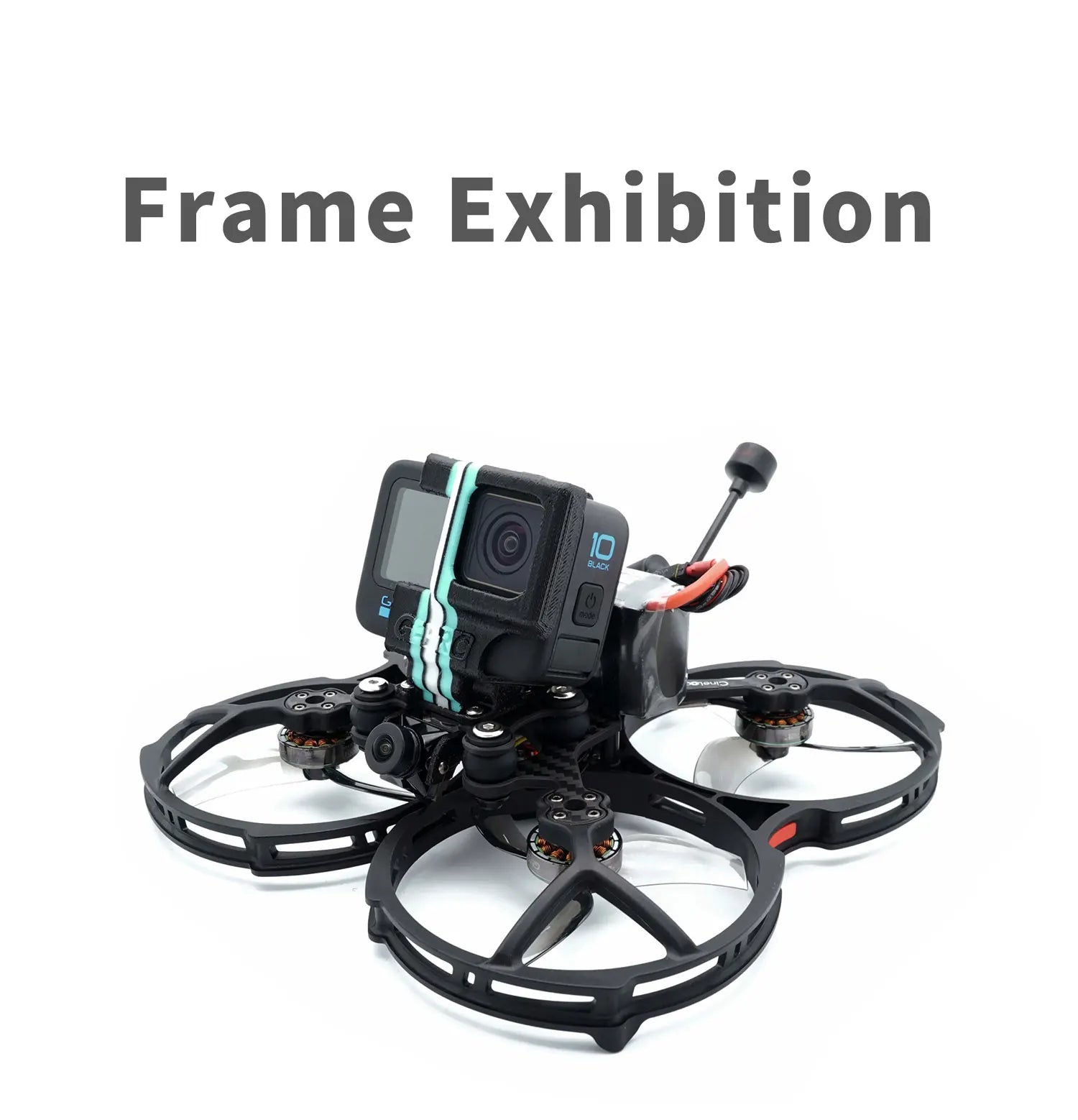

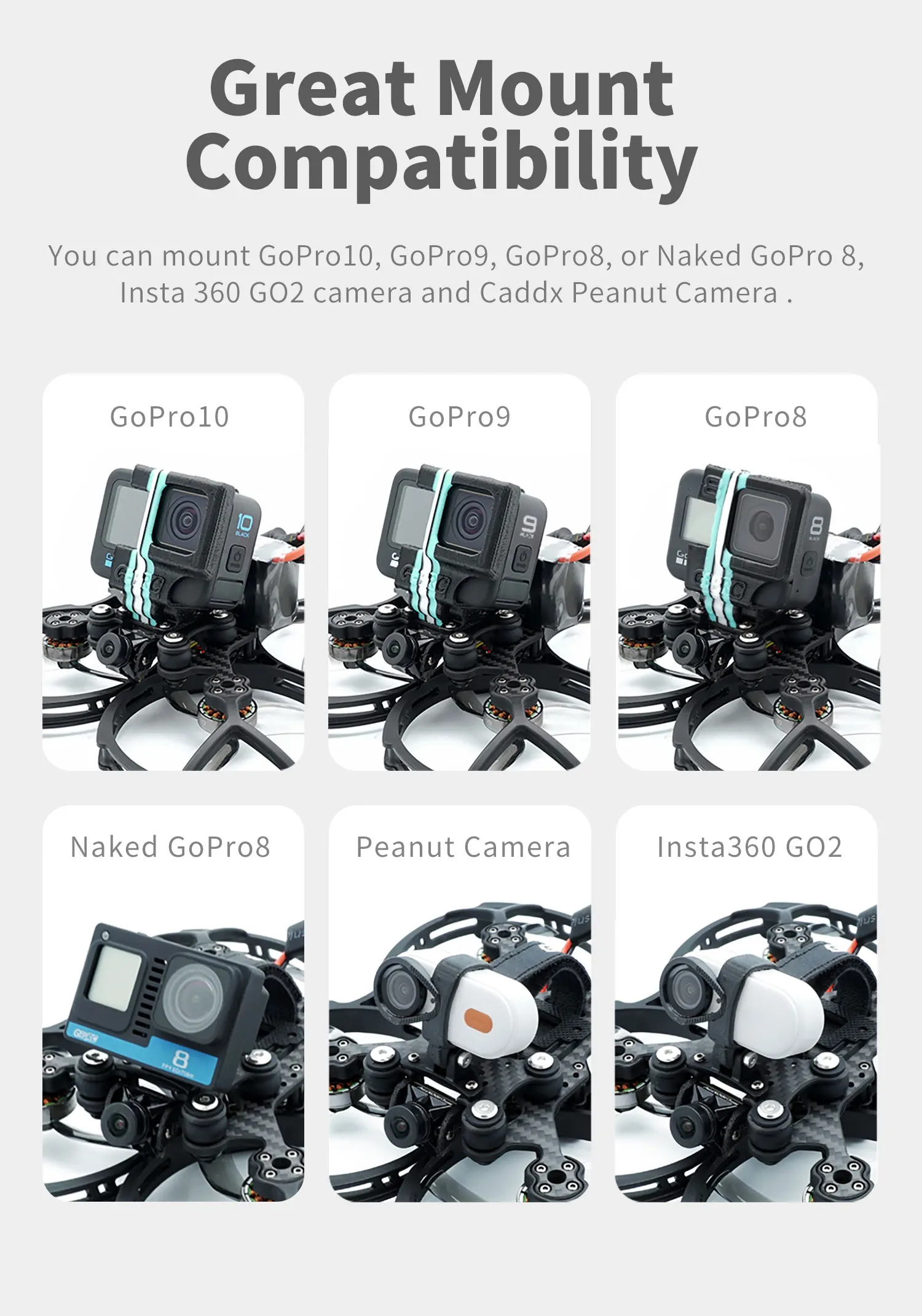

It comes with a 3D Print mount to install the GoPro 9 & GoPro 10. and the Incidental base can carry Insta360 Go2 camera/Naked GoPro Hero 8/Caddx Peanut camera.

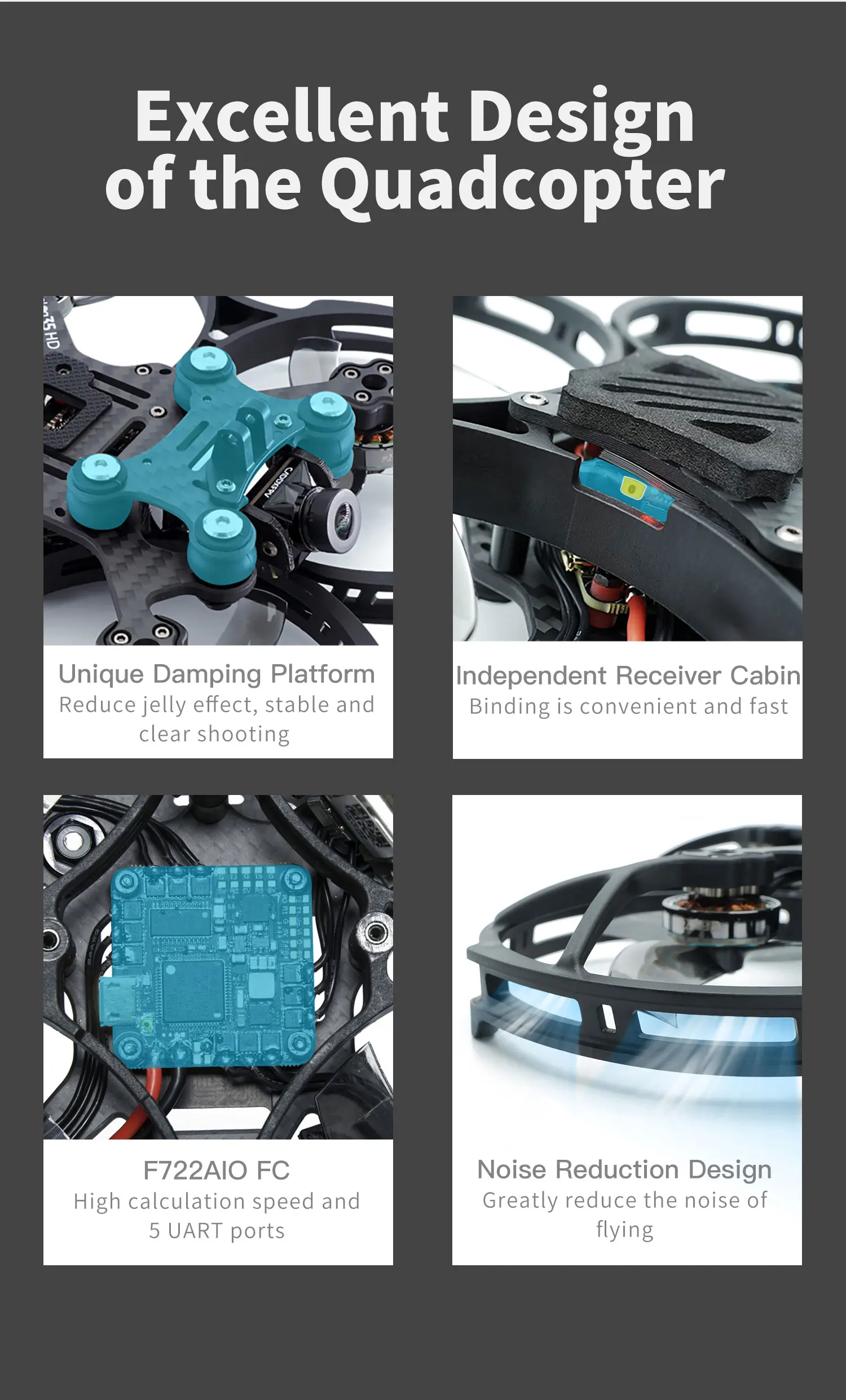

Improving the damping rings, the shooting effect is more stable,clearer and reduce jelly.

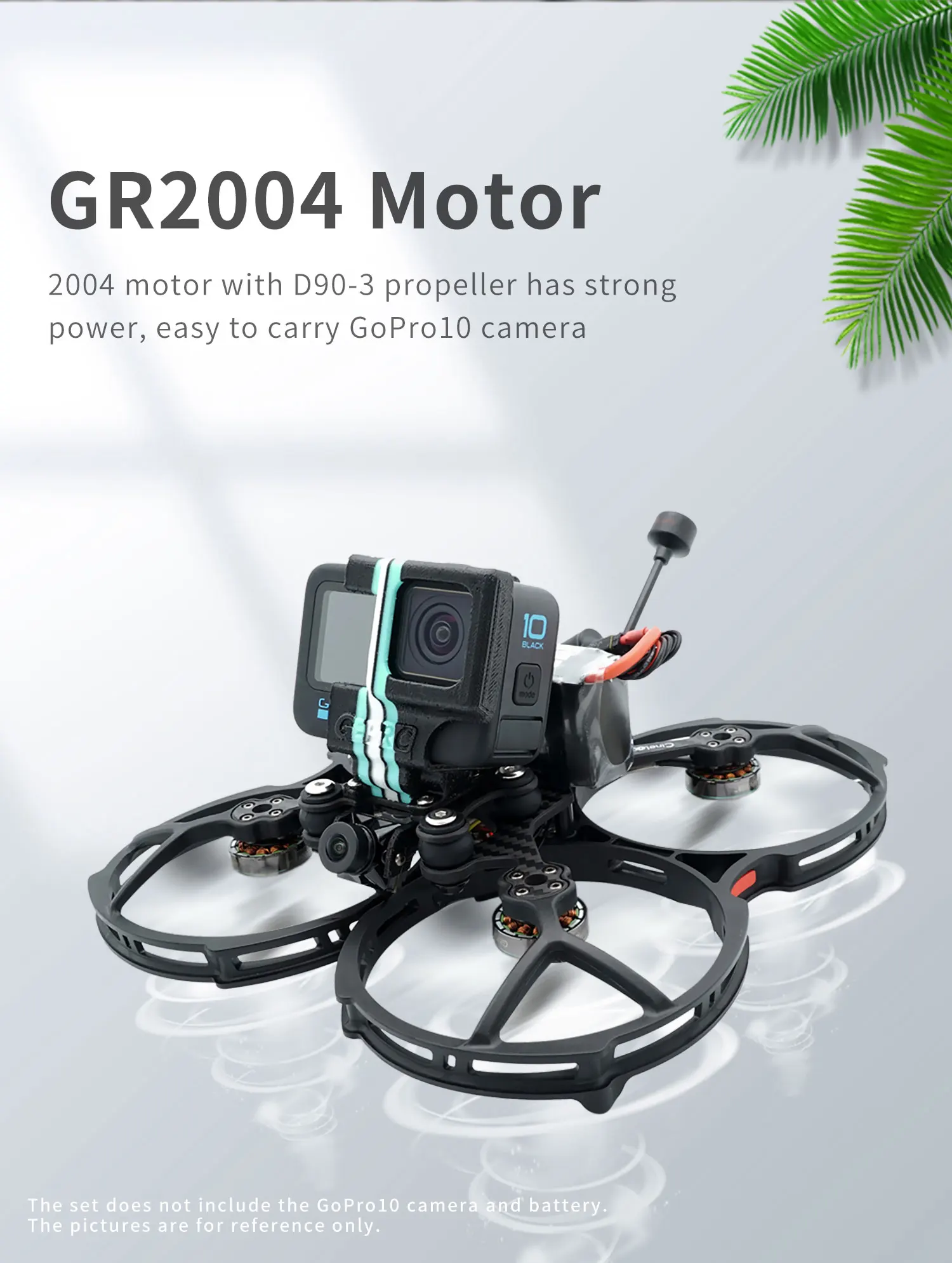

2004 motor with D90-3 propeller has stronger power output.
Independent receiver cabin, conveniently and quickly to binding.
The GEPRC Team's Splendid Tuning and the overall flight feel is delicate and flexible.

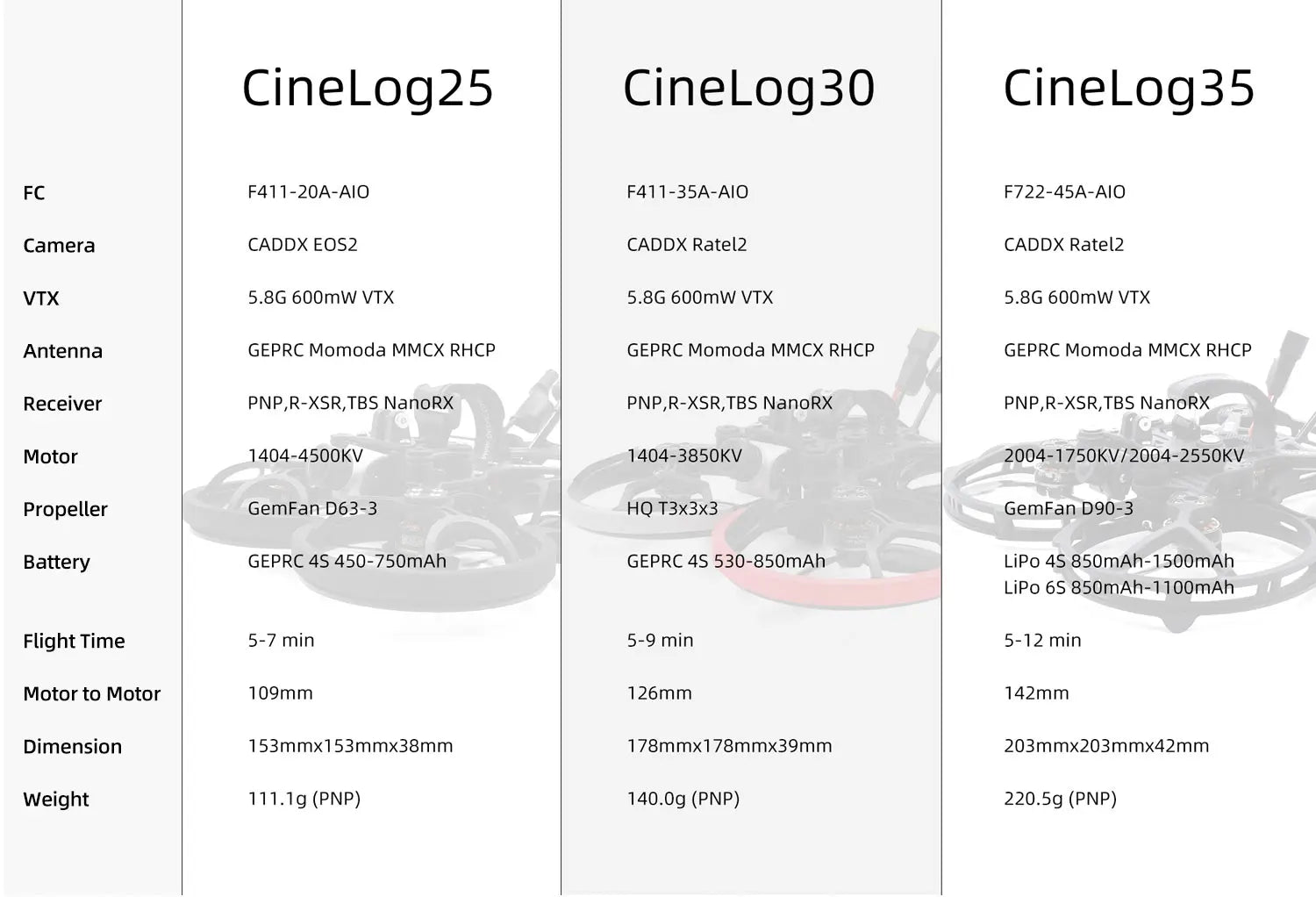

Specifications:

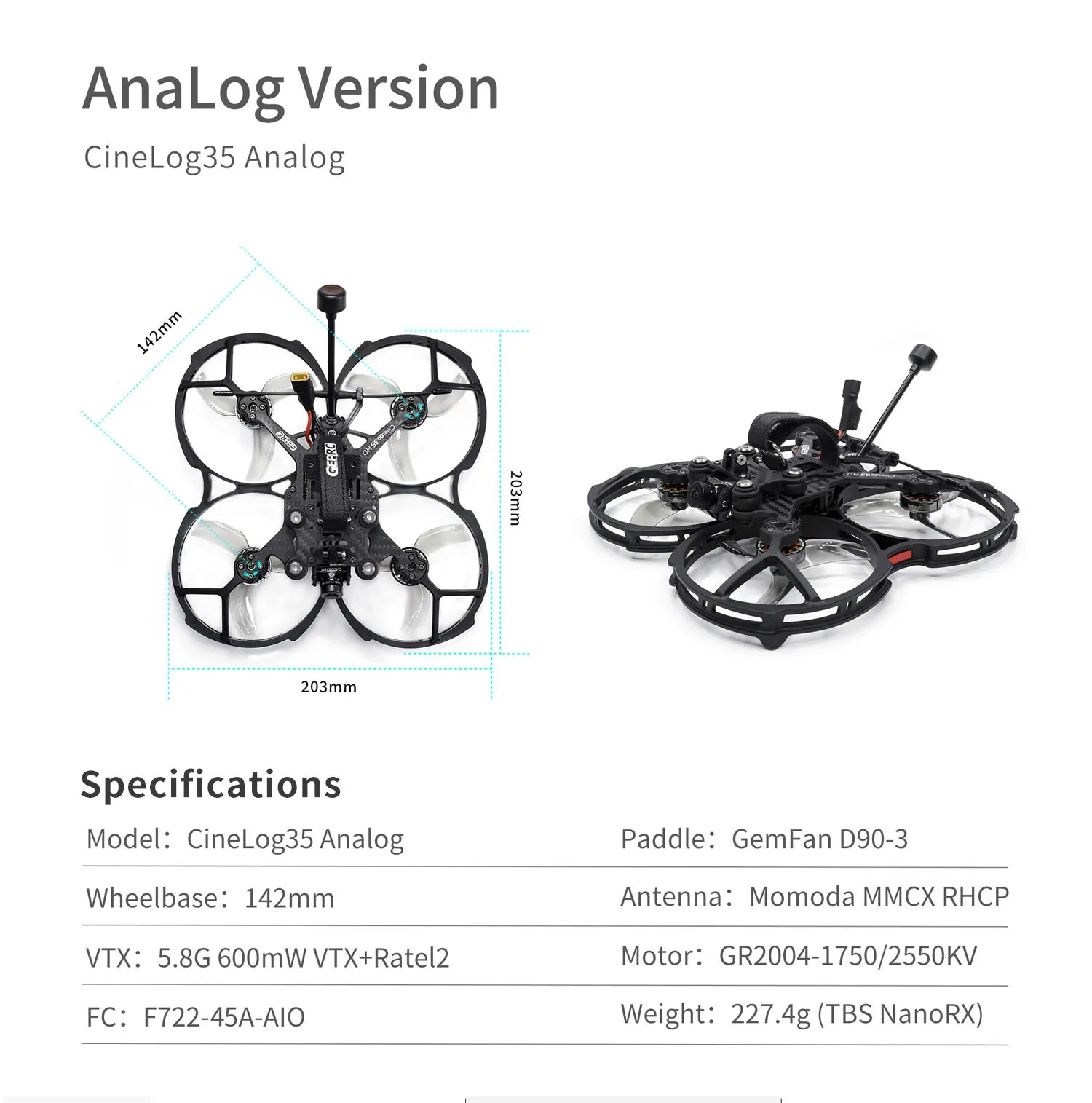

Model: CineLog35 Analog
Brand: GEPRC
Frame: GEP-CL35

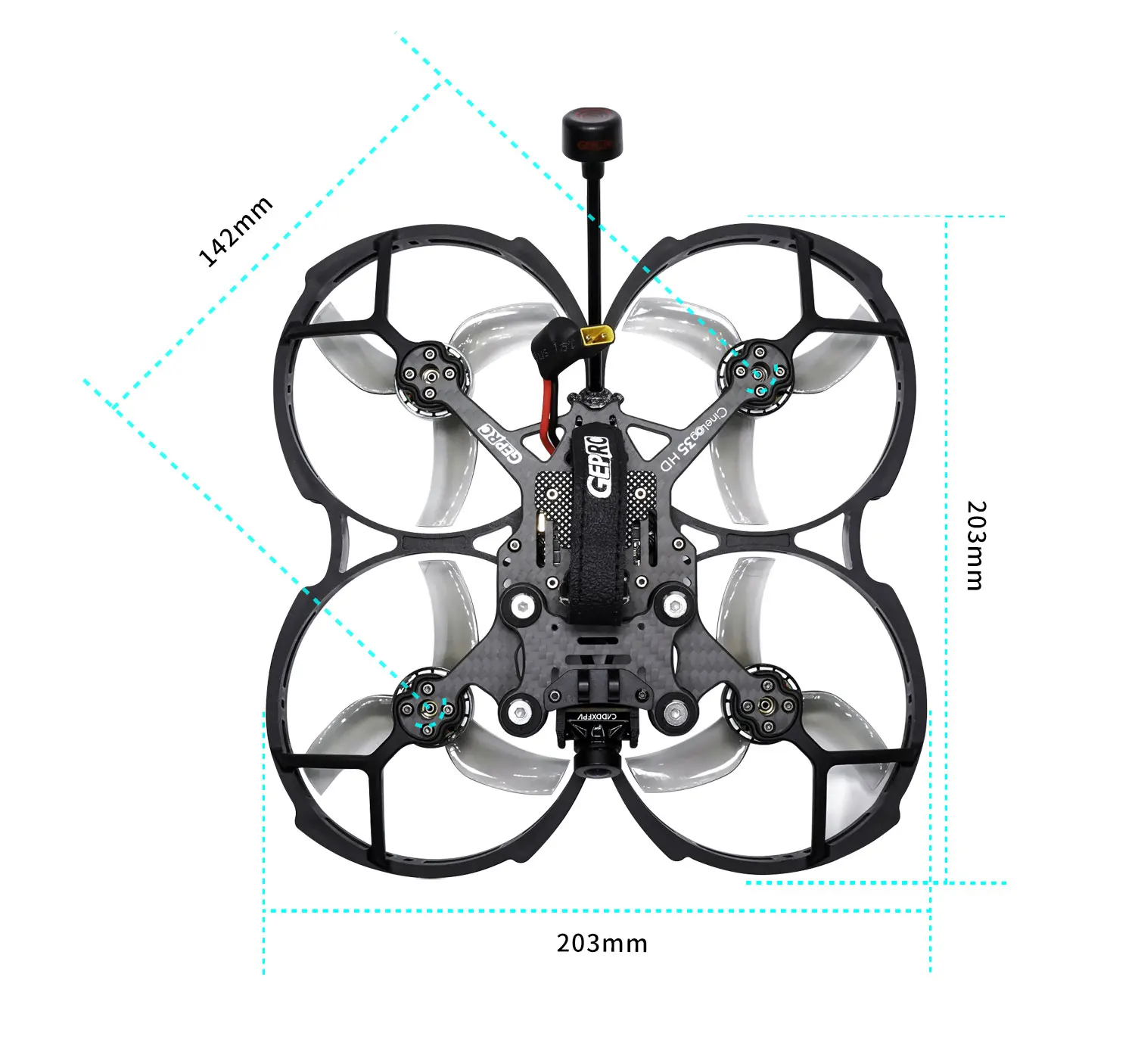

Wheelbase: 142mm
Top plate: 2.5mm
bottom plate: 2.0mm
Arm plate3.5mm
FC system: GEP-F722-45A AIO
MCU: STM32F722
IMU: MPU6000(SPI)
OSD: BetaFlight OSD w/AT7456E chip
ESC: BLheli_S 45A
VTX: 600mW VTX
Camera: Caddx Nebula Pro
Propeller: D90-3
Antenna: Momoda MMCX RHCP 195mm Antenna
Motor:
GR2004-1750KV 6S Version

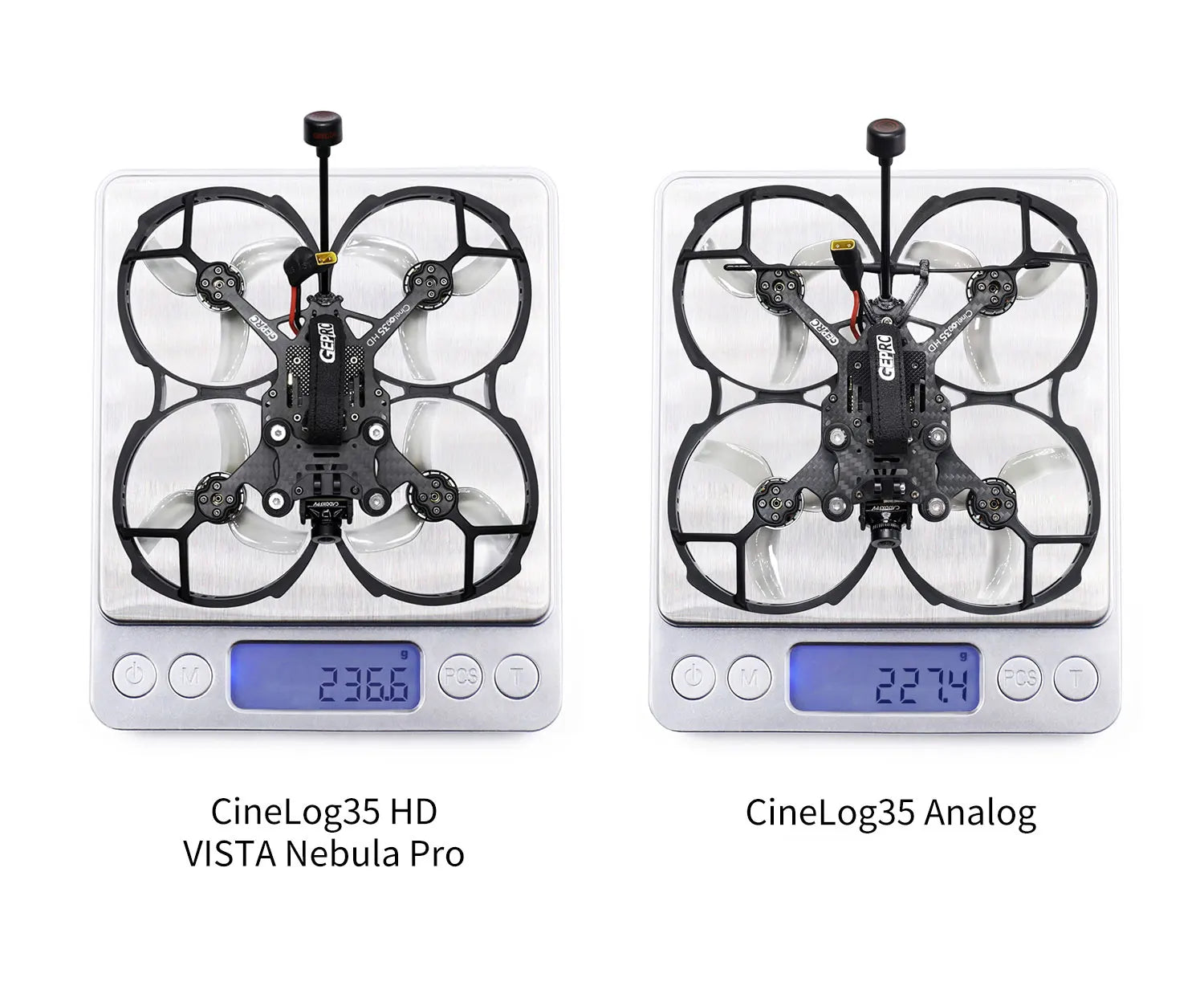

GR2004-2550KV 4S VersionWeight: 220.5g (CineLog35 Analog 4S PNP)
Receiver: PNP(Vista built-in DJI receiver)/Frsky R-XSR/TBS Nano RX
Battery:
LiPo 4S 850mAh-1500mAh
LiPo 6S 850mAh-1100mAh

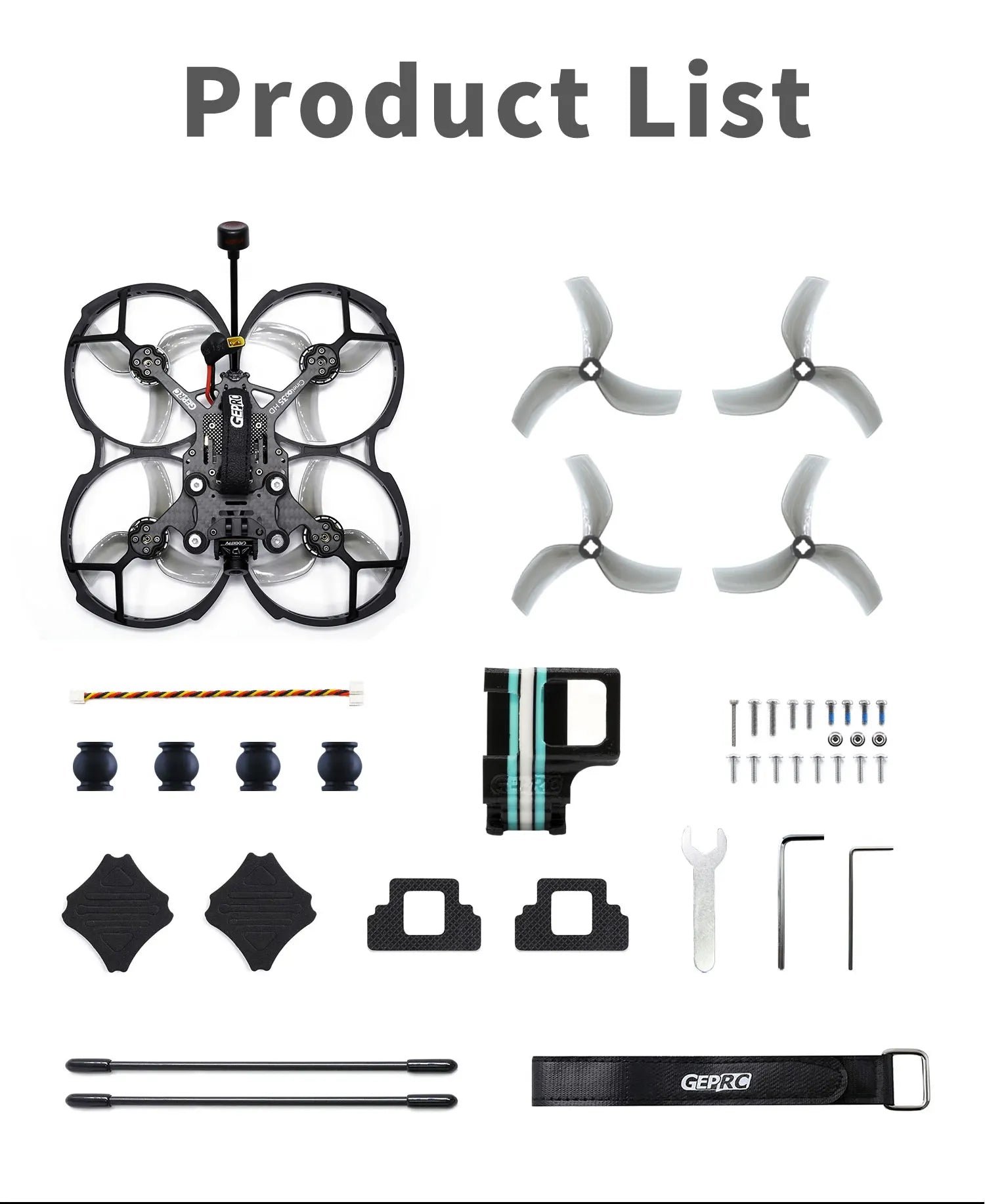

Include:
1 x CineLog35 HD VISTA Nebula Pro Quadcopter
2 x D90-3 propellers (pair)
1 x Battery strap M15x200mm
2 x Battery Silicone Pads
2 x Landing Pads
4 x 15 degree damping rings
1 x 3D print mountings combination
1 x screw combination
1 x screwdriver combination
1 x Antenna fixed tube
