SPECIFICATIONS
Aerial Photography: Yes
Anti-wind Ability: NO
Brand Name: YSRC
Camera Mount Type: Fixed Camera Mount,Other
Certification: CE
Charging Time: 30 minutes
Charging Voltage: 14.8V
Control Channels: 8 CHANNELS
Controller Battery: Not include
Controller Mode: MODE1,MODE2
Dimensions: 5 inch - 6 inch
Drone Weight: 400g
Features: App-Controlled,FPV Capable,Integrated Camera,Other
Flight Time: <5
High-concerned chemical: None
Indoor/Outdoor Use: Indoor-Outdoor
Is Batteries Included: No
Is Electric: No Battery
Material: Metal,Plastic,Carbon Fiber
Model Number: Vapor O4 Pro WTFPV
Motor: Brushless Motor
Operator Skill Level: Beginner,Intermediate,expert
Origin: Mainland China
Package Includes: Original Box,Operating Instructions
Plugs Type: XT60
Power Source: Electric
Recommend Age: 14+y
Remote Control: Yes
Remote Distance: 2000 meters
State of Assembly: Almost Ready
Takeoff Weight: 100g
Transit Time (Days): 1KM
Type: HELICOPTER
Video Capture Resolution: 1080p FHD,2K QHD,4K UHD
Warning: Minors please use under the supervision of an adult
Summary

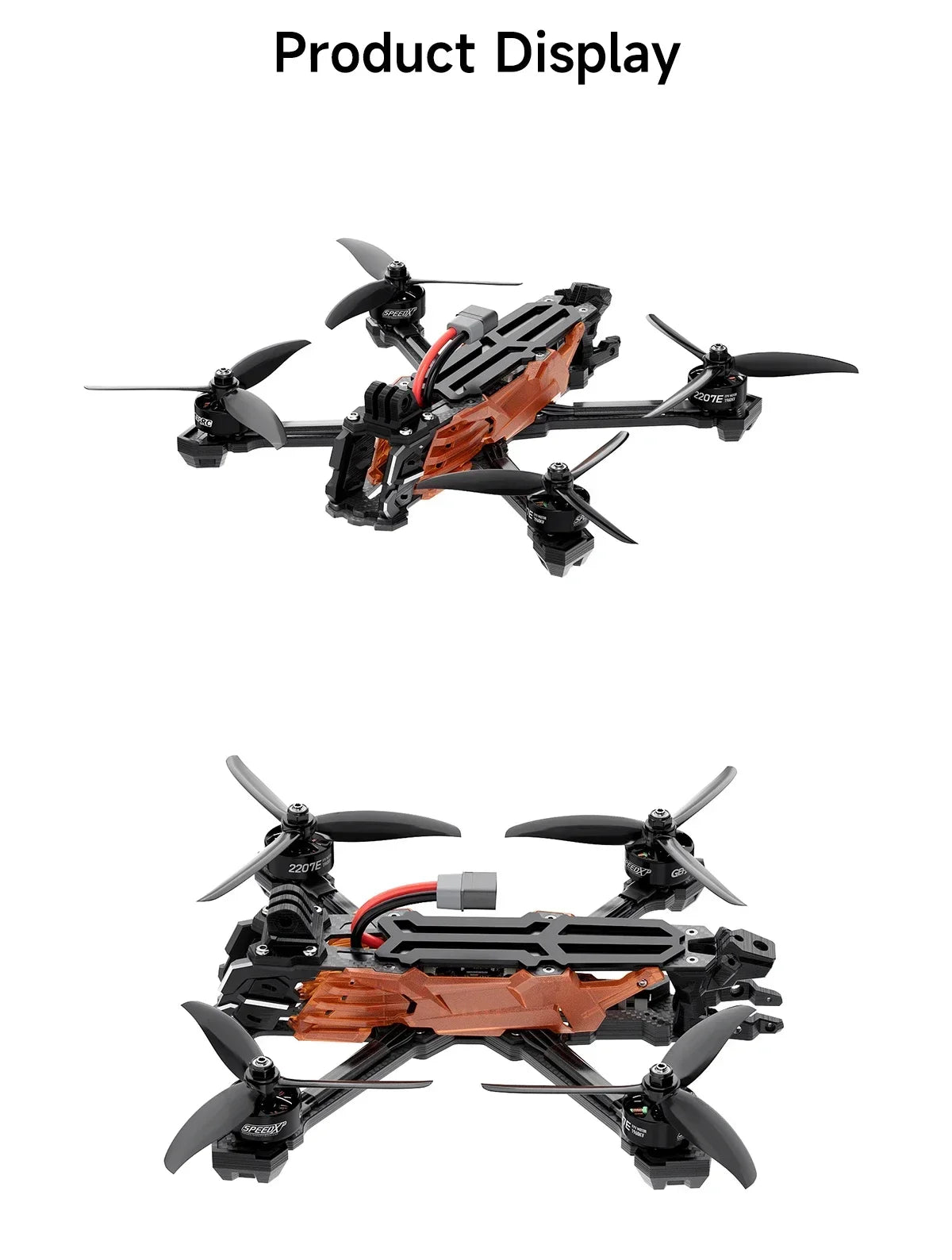

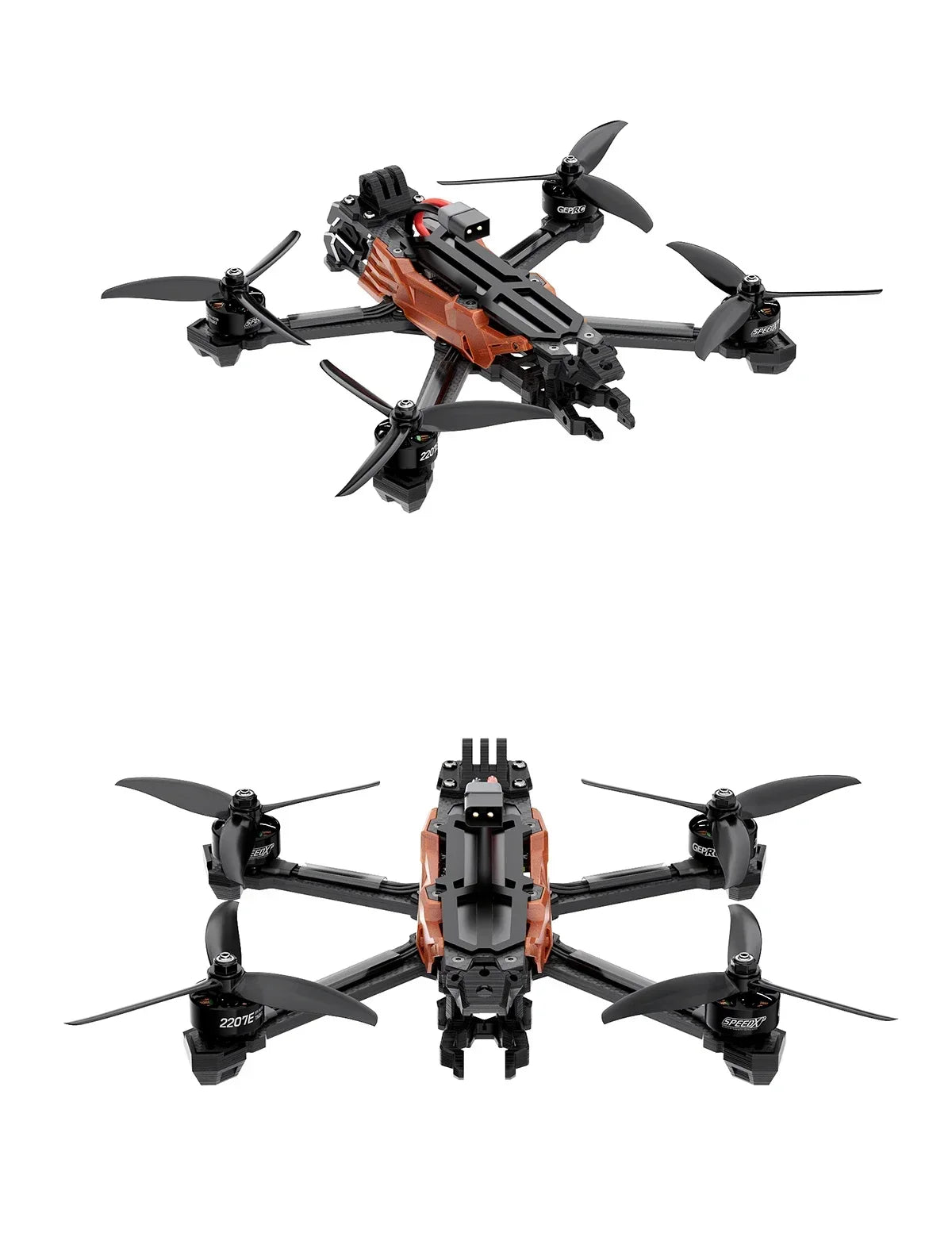

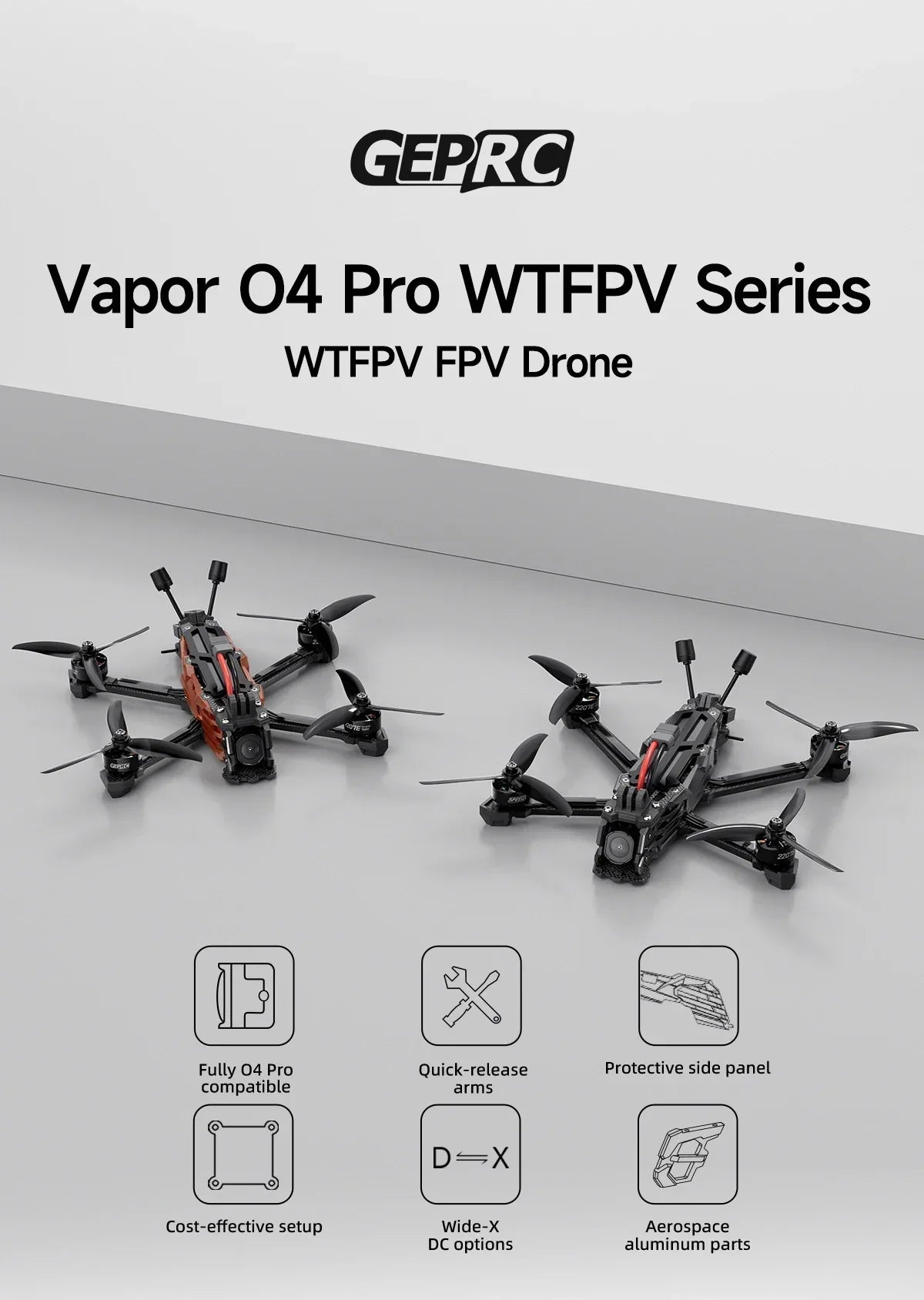

The Vapor Series continues to lead in innovation, now fully compatible with the O4 Air Unit Pro.

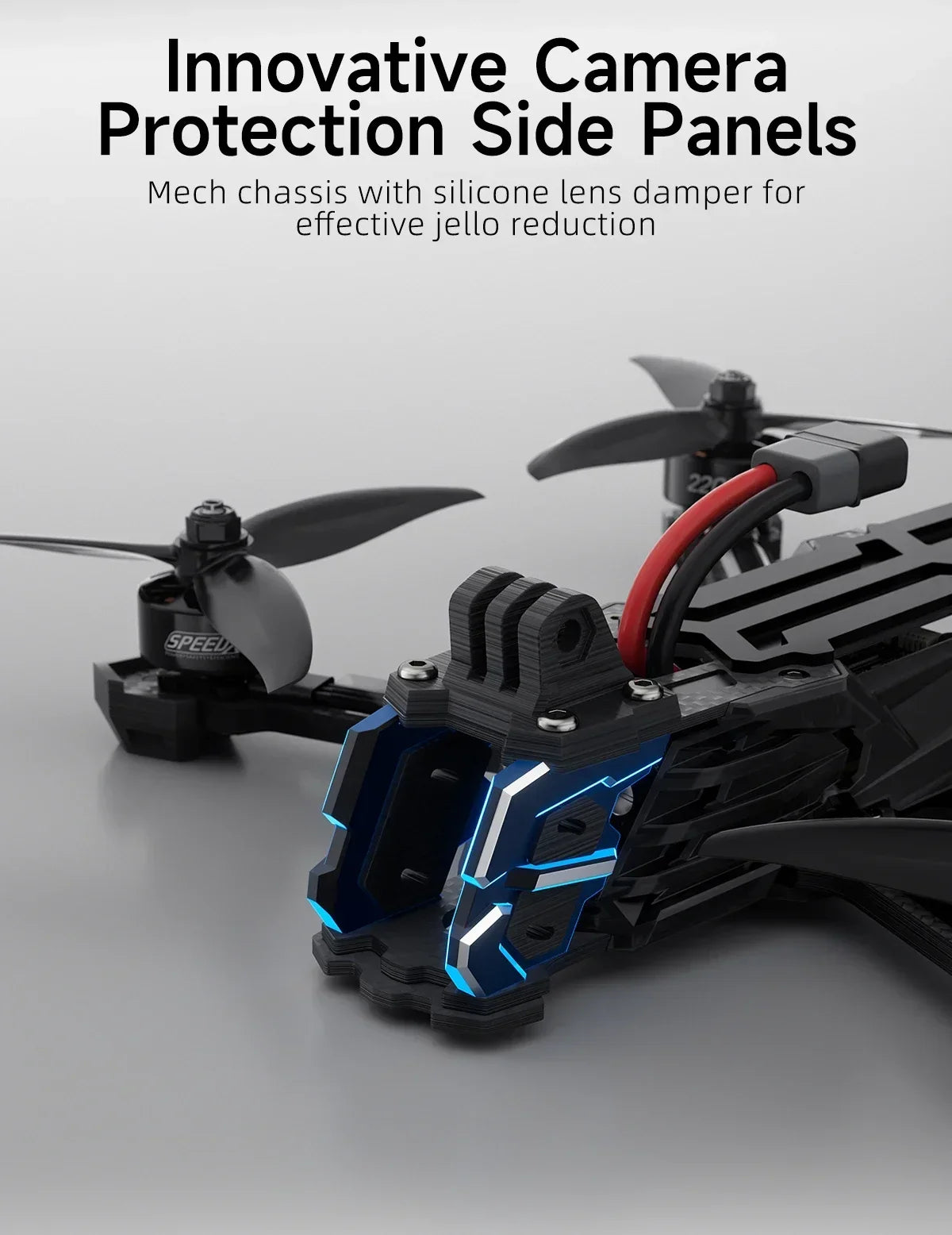

The GEPRC team has redesigned the lens mount and added vibration-damping silicone to minimize resonance. With newly designed side plates with a sharp, bold look, the frame is more striking and seamlessly integrates with the O4 Air Unit Pro.
Powered by the STM32F722 MCU and the TAKER H60_BLS 60A 4-in-1 ESC combo, it delivers quick, precise response and powerful output. Paired with SPEEDX2 E-series high-performance motors, the system offers smooth handling and explosive power, creating an immersive flying experience where the FPV drone feels like an extension of yourself.

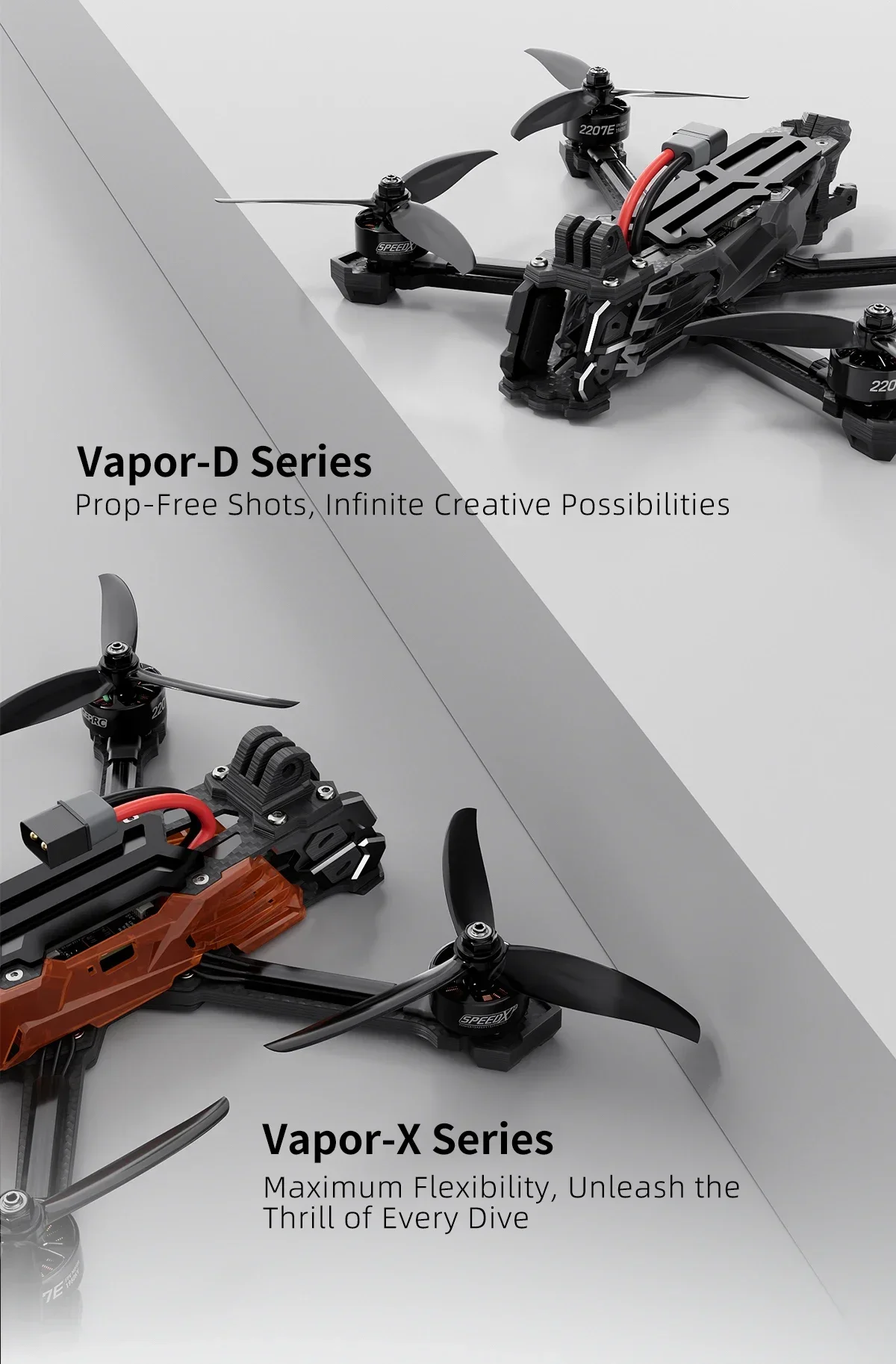

The Vapor O4 series is available in Wide X and DC models, with both 5-inch and 6-inch size options to suit every flying need.
Feature
Supports the O4 Air Unit Pro with a powerful CMOS sensor for better light sensitivity and sharper image detail.
CNC aluminum alloy lens mount enhances the bold, mech-style look.
Comes with GEPRC SPEEDX2 E series motors for strong, responsive power.
Front lip design adds extra protection for the lens, making it more crash-resistant.

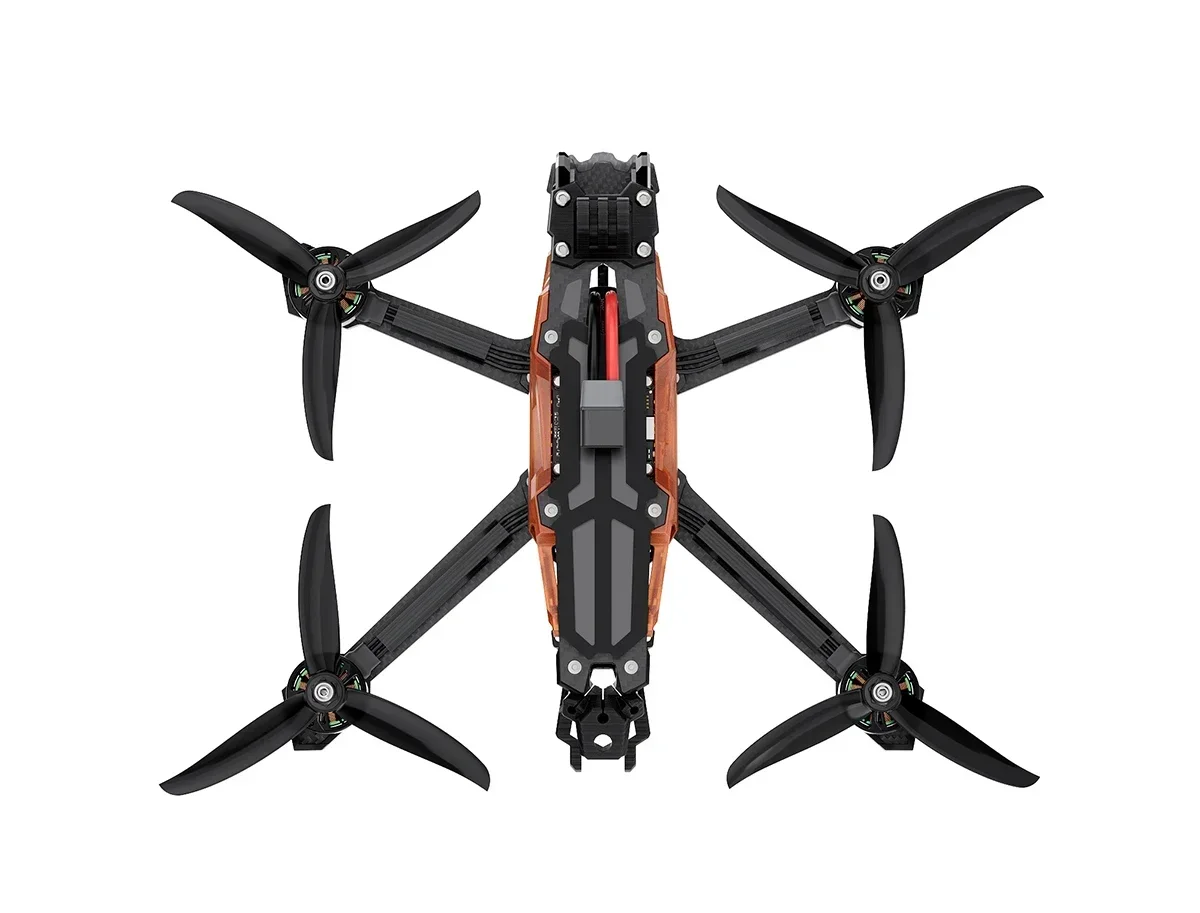

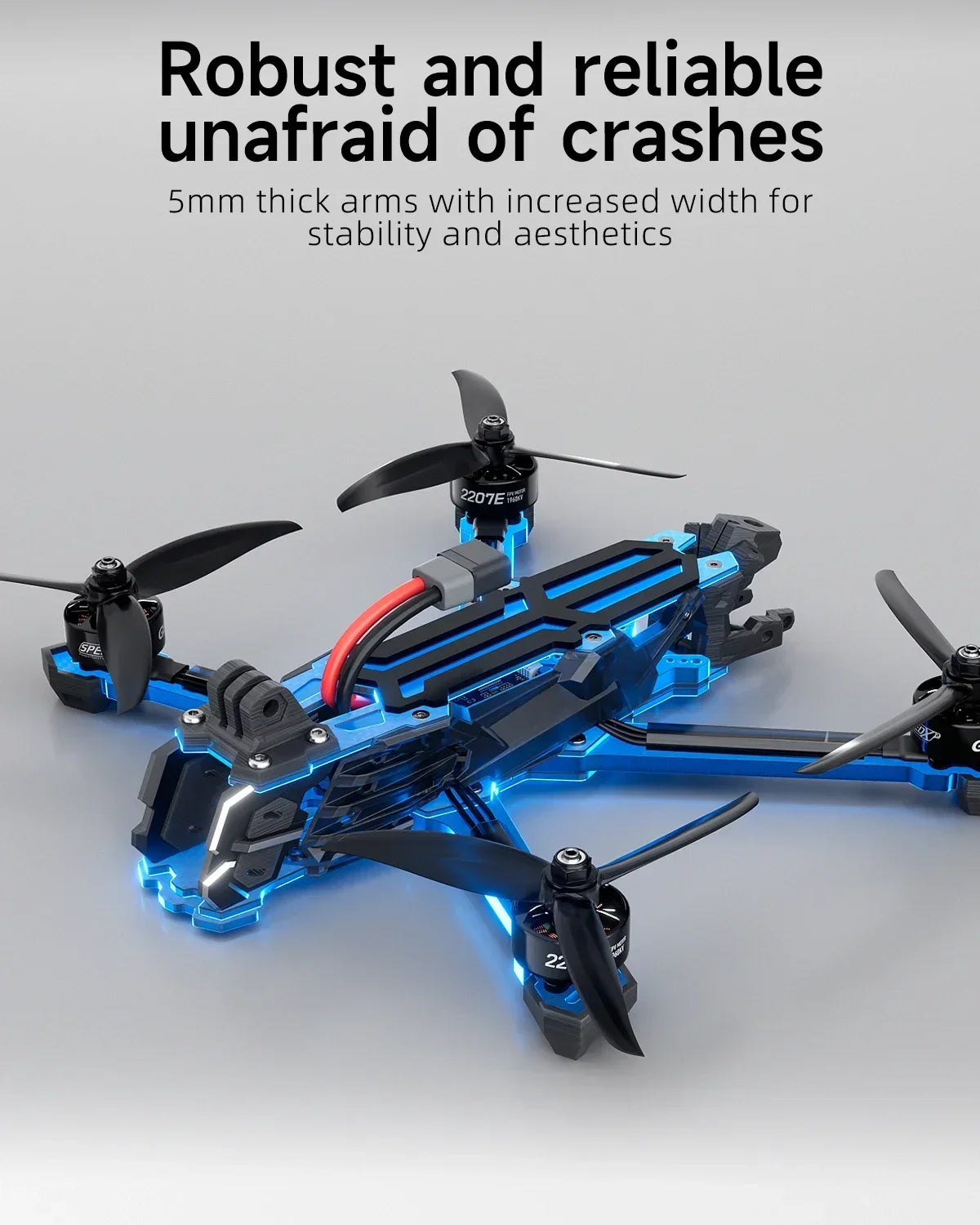

Classic 5mm carbon fiber arms with newly molded side plates for a tough, balanced frame.

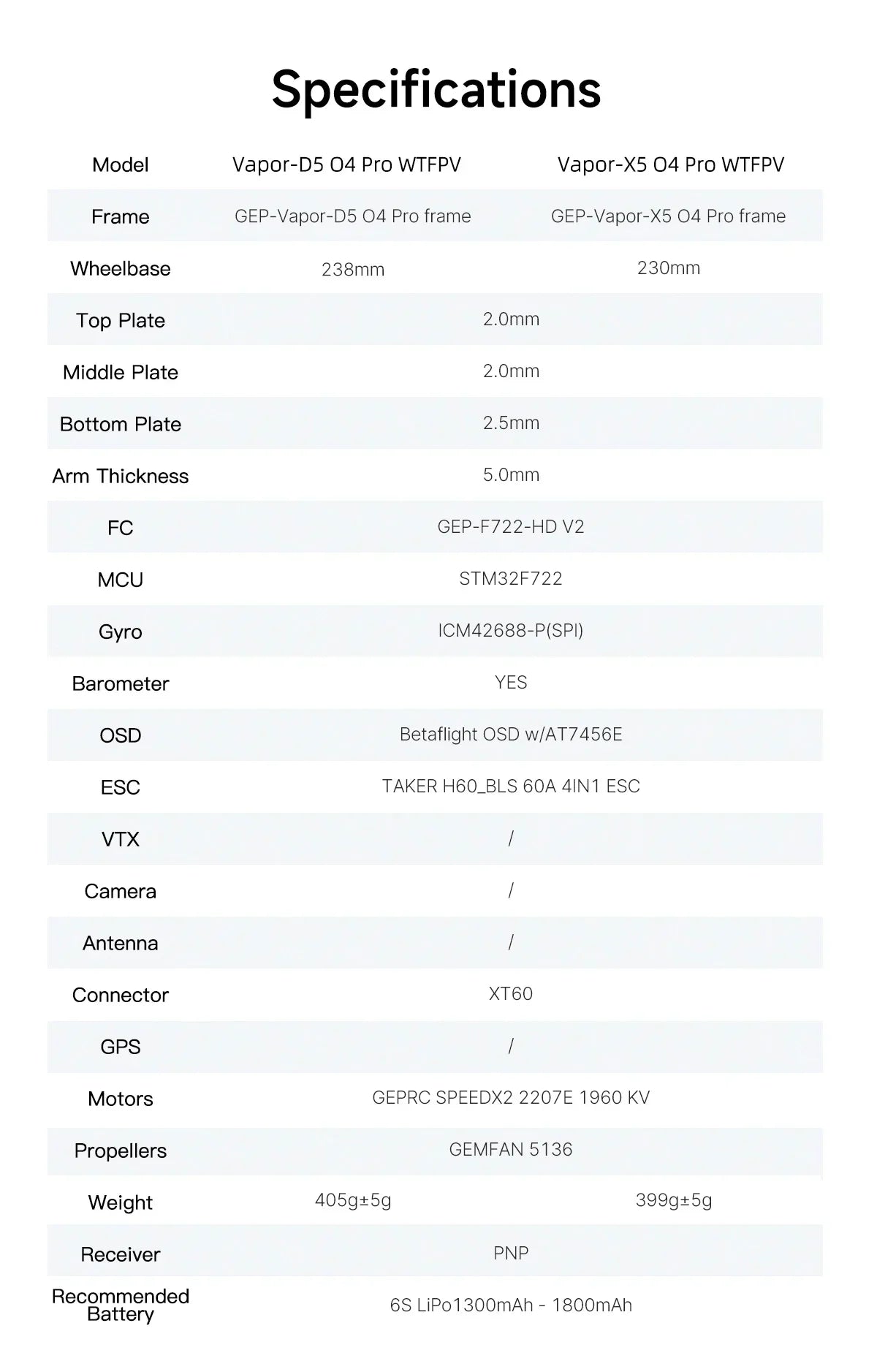

Specfication---Vapor-X5 O4 Pro WTFPV
Model: Vapor-X5 O4 Pro WTFPV
Frame: GEP-Vapor-X5 O4 Pro frame
Wheelbase: 230 mm
Top Plate: 2.0 mm
Middle Plate: 2.0 mm
Bottom Plate：2.5 mm
Arm Thickness：5.0 mm
FC: GEP-F722-HD v2
MCU: STM32F722
Gyro: ICM42688-P(SPI)
Barometer: BMP280
OSD: Betaflight OSD w/AT7456E
ESC: TAKER H60_BLS 60A 4IN1 ESC
VTX: /
Camera: /
Antenna: /
Connector: XT60
GPS：/
5-inch Motor: GEPRC SPEEDX2 2207E 1960 KV
5-inch Propeller: GEMFAN 5136
Vapor-X5 O4 Pro WTFPV PNP Version Weight: 399g±5g
Receiver: /
Recommended Battery: 6S LiPo 1550mAh - 2200mAh
Flight Time: 14-19 min

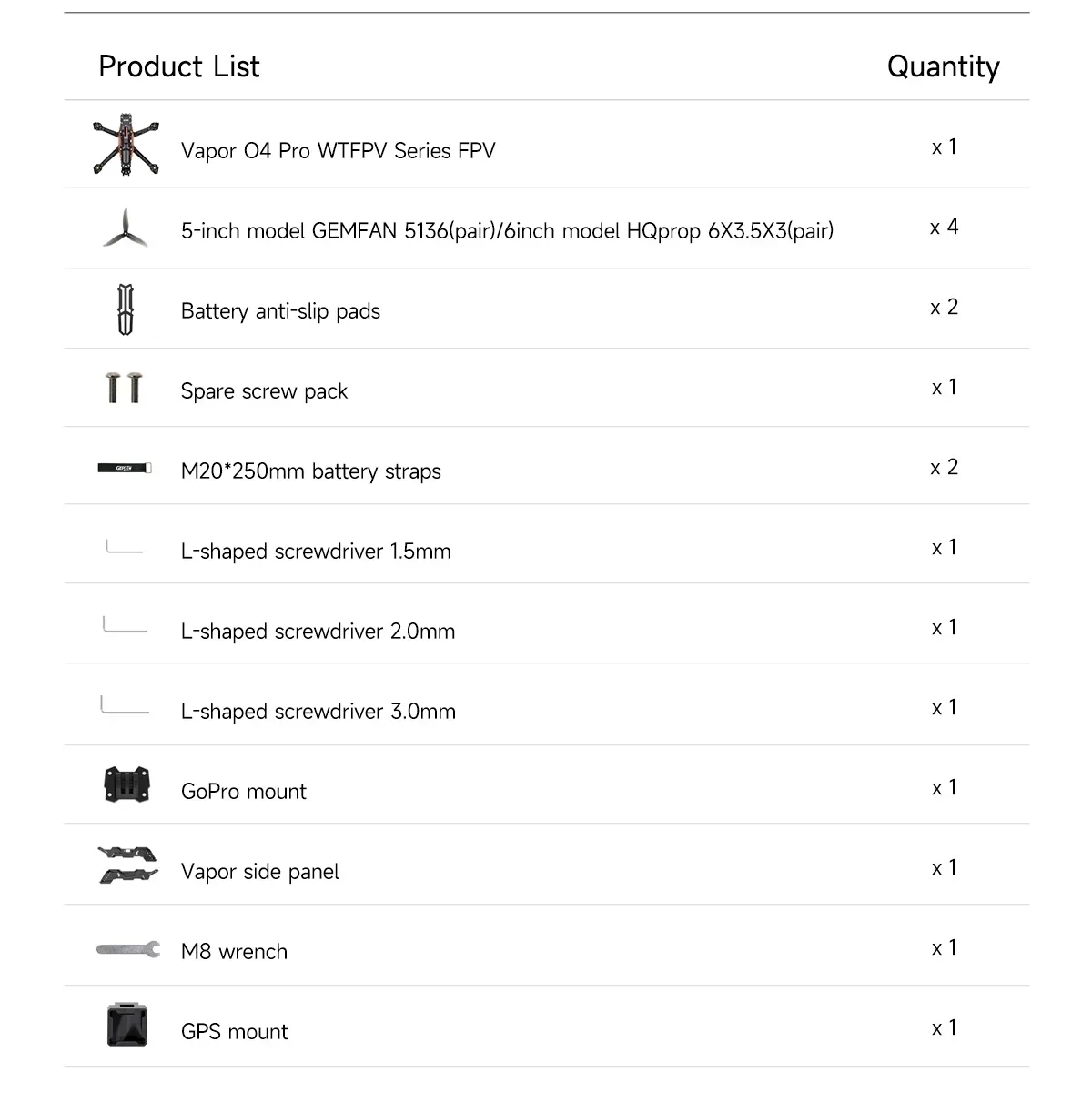

Product List:
1 x Vapor-X5 O4 Pro WTFPV
2 x GEMFAN 5136
2 x Battery anti-slip pads

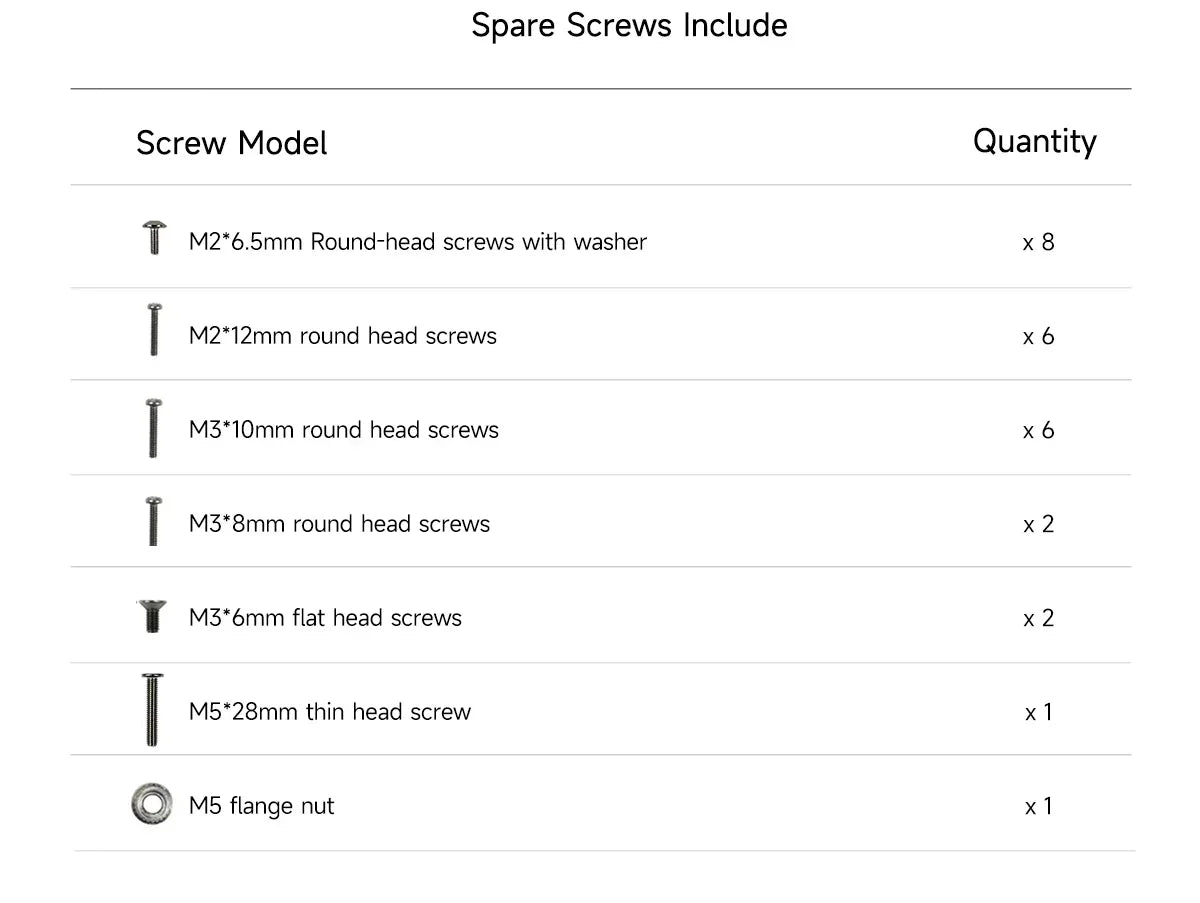

1 x Spare screw pack
2 x M20*250mm battery straps
1 x L-shaped screwdriver 1.5mm
1 x L-shaped screwdriver 2.0mm
1 x L-shaped screwdriver 3.0mm
1 x GoPro mount
1 x GPS mount
1 x Vapor side panel
---------------------------------------------------------------------

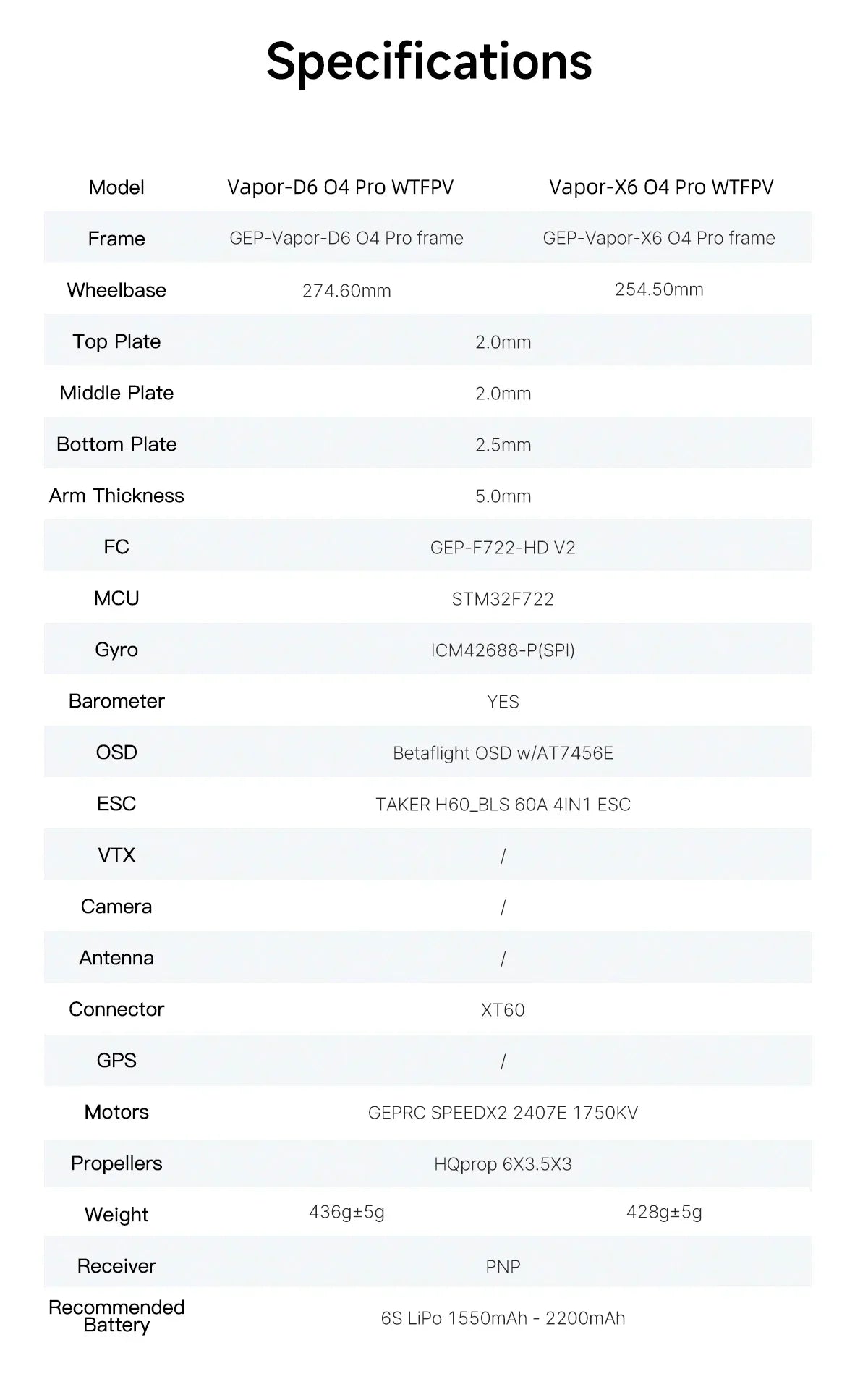

Specfication---Vapor-X6 O4 Pro WTFPV
Frame: GEP-Vapor-X6 O4 Pro frame
Wheelbase: 254.5 mm
Top Plate: 2.0 mm
Middle Plate: 2.0 mm
Bottom Plate: 2.5 mm
Arm Thickness: 5.0 mm
FC: GEP-F722-HD v2
MCU: STM32F722
Gyro: ICM42688-P(SPI)
Barometer: BMP280
OSD: Betaflight OSD w/AT7456E
ESC: TAKER H60_BLS 60A 4IN1 ESC
VTX: /
Camera: /
Antenna: /
Connector: XT60
GPS：/
6-inch Motor: GEPRC SPEEDX2 2407E 1750KV
6-inch Propeller: HQprop 6X3.5X3
Vapor-X6 O4 Pro WTFPV PNP Version Weight：428g±5g
Receiver: /

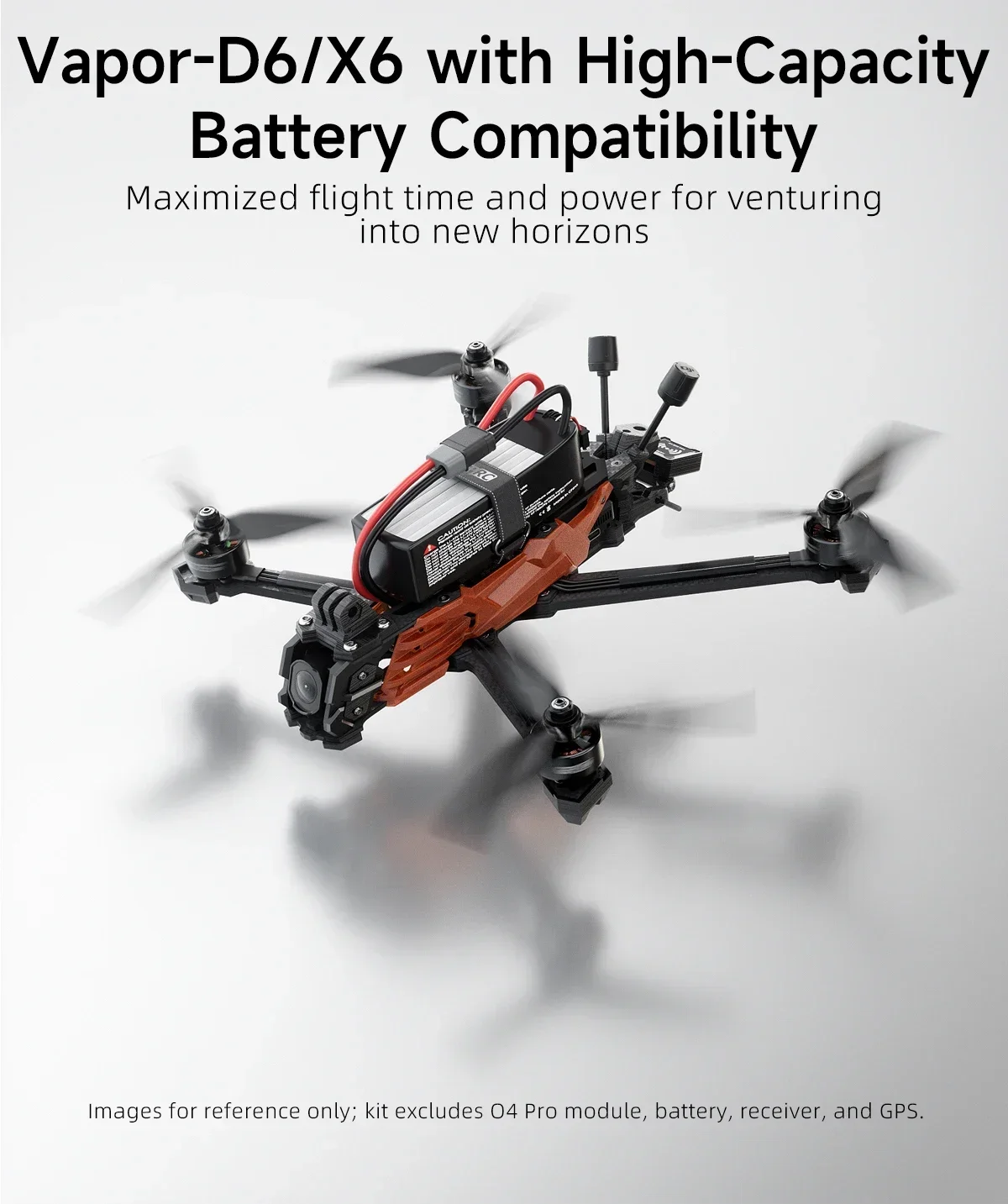

Recommended Battery: 6S LiPo 1550mAh - 2200mAh
Flight Time: 14-19 min
Product List:
1 x Vapor-X6 WTFPV
2 x HQprop 6X3.5X3
2 x Battery anti-slip pads
1 x Spare screw pack
2 x M20*250mm battery straps
1 x L-shaped screwdriver 1.5mm
1 x L-shaped screwdriver 2.0mm
1 x L-shaped screwdriver 3.0mm
1 x GoPro mount
1 x GPS mount
1 x Vapor side panel
---------------------------------------------------------------------
Specfication--- Vapor-D5 WTFPV
Frame: GEP-Vapor-D5 O4 Pro frame
Wheelbase: 238.43mm
Top Plate: 2.0 mm
Middle Plate: 2.0 mm
Bottom Plate：2.5 mm
Arm Thickness：5.0 mm
FC: GEP-F722-HD v2
MCU: STM32F722
Gyro: ICM42688-P(SPI)
Barometer: BMP280
OSD: Betaflight OSD w/AT7456E
ESC: TAKER H60_BLS 60A 4IN1 ESC
VTX: /
Camera: /
Antenna: /
Connector: XT60
GPS：/
5-inch Motor: GEPRC SPEEDX2 2207E 1960 KV
5-inch Propeller: GEMFAN 5136
Vapor-D5 WTFPV PNP Version Weight: 405g±5g
Receiver: PNP
Recommended Battery: 6S LiPo 1550mAh - 2200mAh
Flight Time: 13-17 min

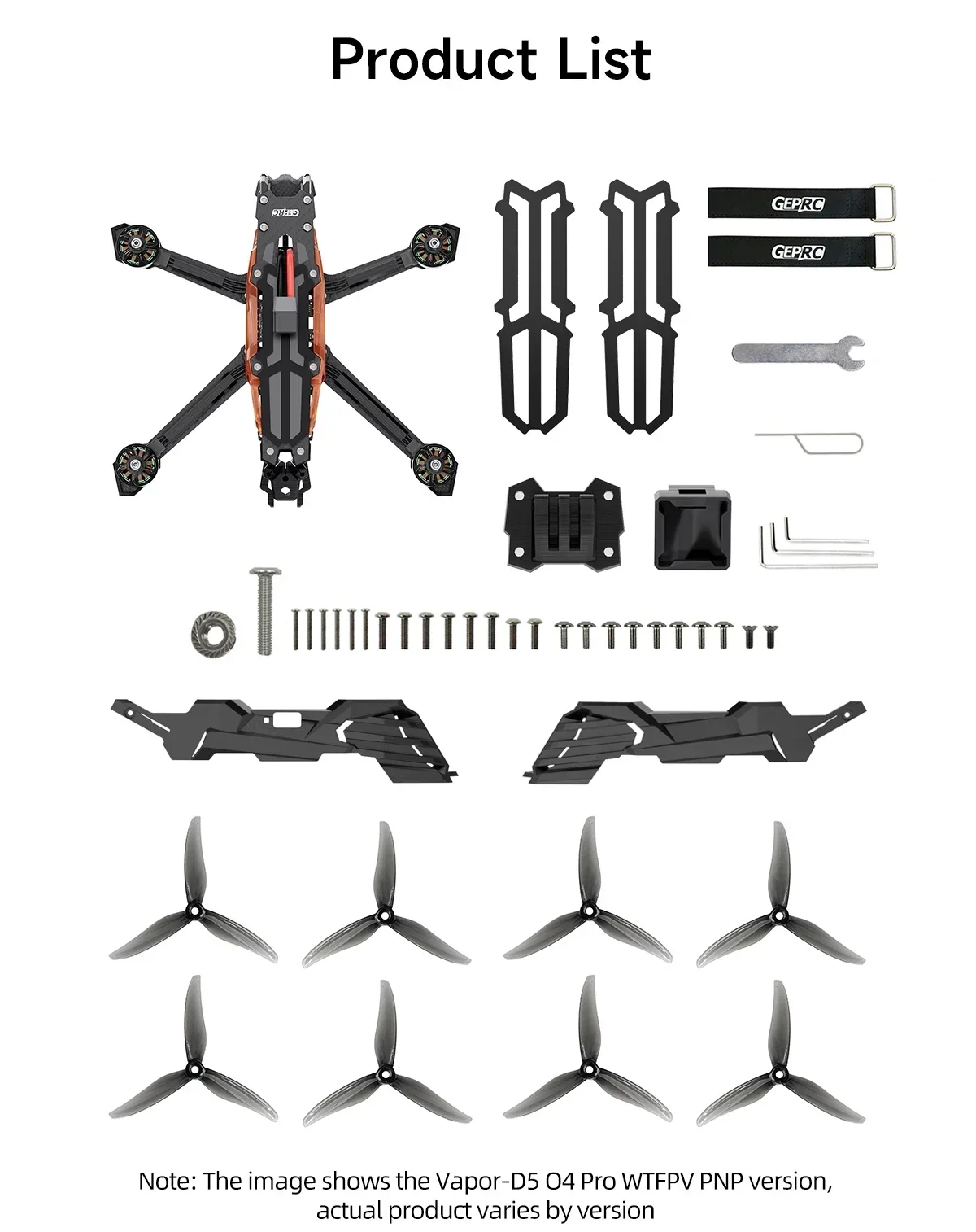

Product List:
2 x GEMFAN 5136
2 x Battery anti-slip pads
1 x Spare screw pack
2 x M20*250mm battery straps
1 x L-shaped screwdriver 1.5mm
1 x L-shaped screwdriver 2.0mm
1 x L-shaped screwdriver 3.0mm
1 x GoPro mount
1 x GPS mount
1 x Vapor side panel
Specfication--- Vapor-D6 WTFPV
Frame: GEP-Vapor-D6 O4 Pro frame
Wheelbase: 274.60mm
Top Plate: 2.0 mm
Middle Plate: 2.0 mm
Bottom Plate: 2.5 mm
Arm Thickness: 5.0 mm
FC: GEP-F722-HD v2
MCU: STM32F722
Gyro: ICM42688-P(SPI)
Barometer: BMP280
OSD: Betaflight OSD w/AT7456E
ESC: TAKER H60_BLS 60A 4IN1 ESC
VTX: /
Camera: /
Antenna: /
Connector: XT60
GPS：/
6-inch Motor: GEPRC SPEEDX2 2407E 1750KV
6-inch Propeller: HQprop 6X3.5X3
Vapor-D6 WTFPV PNP Version Weight：436g±5g
Receiver: /
Recommended Battery: 6S LiPo 1550mAh - 2200mAh
Flight Time: 13-17 min
Product List:
1 x Vapor-D6 WTFPV
2 x HQprop 6X3.5X3
2 x Battery anti-slip pads
1 x Spare screw pack
2 x M20*250mm battery straps
1 x L-shaped screwdriver 1.5mm
1 x L-shaped screwdriver 2.0mm
1 x L-shaped screwdriver 3.0mm
1 x GoPro mount
1 x GPS mount
1 x Vapor side panel
