SPECIFICATIONS
Aerial Photography: No
Anti-wind Ability: other
Brand Name: NoEnName_Null
Camera Mount Type: Other
Control Channels: 2 CHANNELS
Controller Battery: other
Controller Mode: MODE1,MODE2
Drone Weight: other
Flight Time: <5
High-concerned chemical: None
Indoor/Outdoor Use: Indoor-Outdoor
Is Batteries Included: No
Is Electric: No Battery
Material: Plastic
Model Number: Mobula6 ELRS
Origin: Mainland China
Package Includes: Original Box
Recommend Age: 14+y
Remote Control: No
Remote Distance: other
Takeoff Weight: other
Transit Time (Days): other
Video Capture Resolution: Other
Update log:
Mobula6 ELRS 2.4Ghz version comes with Updated ELRSF4 2G4 V3.1 flight controller since 25th Feb
V3.1 Version flight controller Updated
MPU6000 changed to ICM20689 because of MPU6000 discontinued
Onboard VTX changed to OPENVTX support 0mw~400mw
Pre-install Betaflight firmware which support ELRS V2.0 TX firmware
ExpressLRS is currently the most popular remote control link system. It has the characteristics of low latency and high packet rate, and its link quality is very reliable. Now we are about to release Mobula6 equipped with ExpressLRS RC link system, the new Mobula6 elrs would coming out with a new 0702 brushless motor, that would be the lightest brushless motors all over the world. We're sure this would be a good option for you in the Tiny Whoop Season.
Features:
AIO Flight controller with ELRS Receiver and 5.8G VTX
Super light 1S 65mm Brushless whoop only 18.7g
Equipment with the lightest brushless motors-SE0702 only 1.46gram
Runcam Nano3 The lightest 1/3 CMOS 800TVL Camera
Smooth and powerful
Compatible for 1S Lipo/LIHV
Specifications:
Brand Name: Happymodel

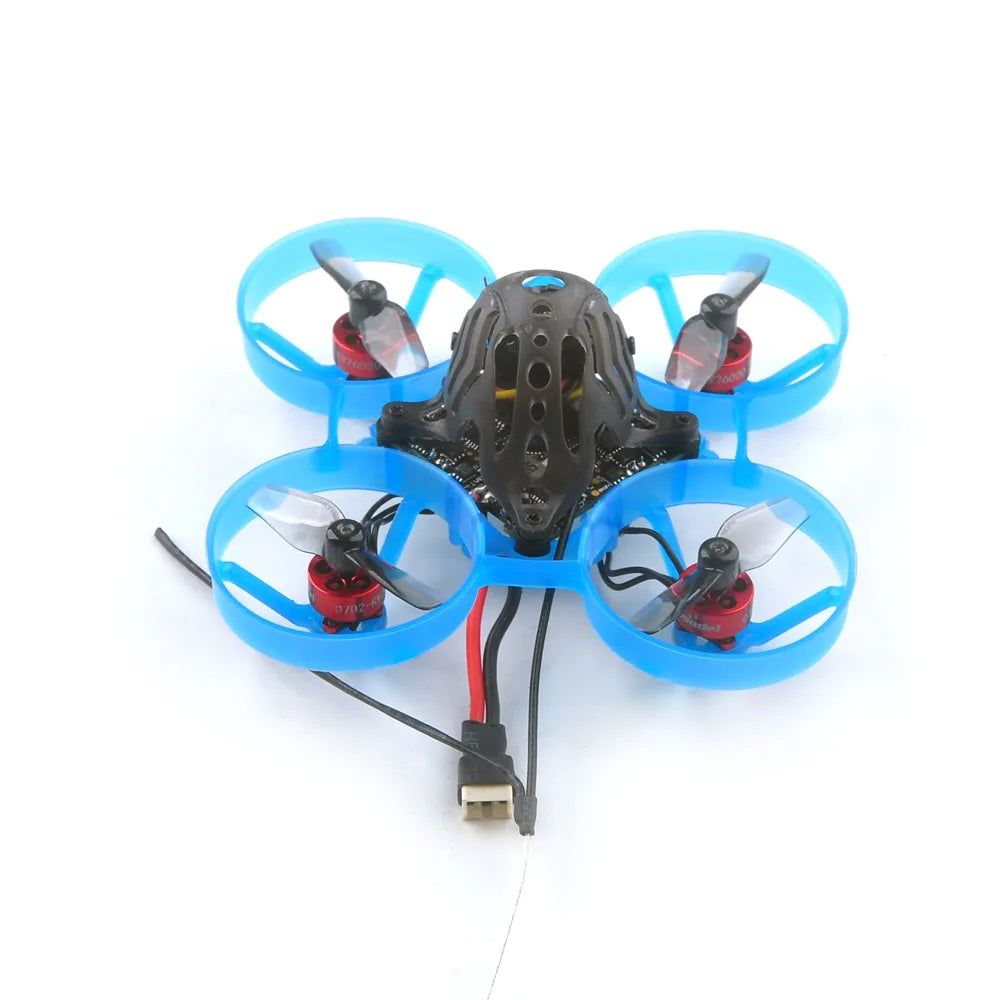

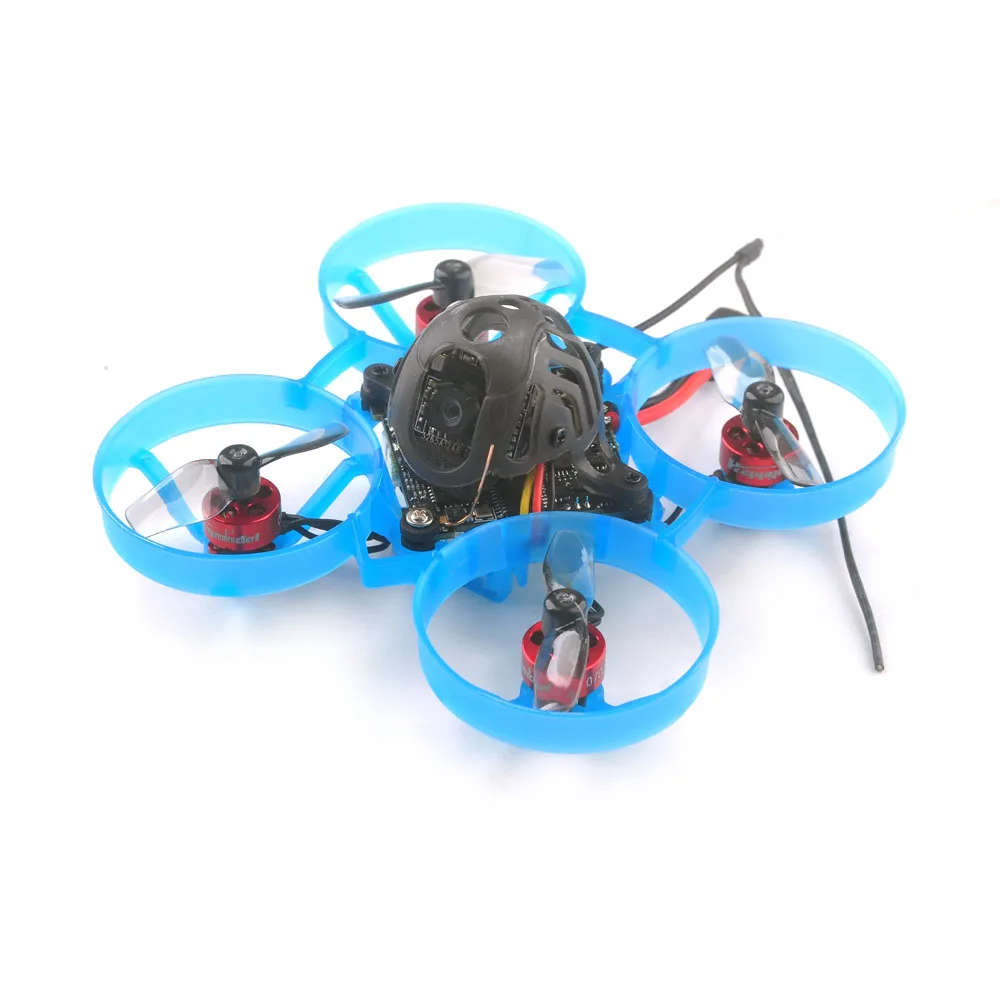

Item Name: Mobula6 ELRS 1S 65mm Brushless whoop drone BNF version
Wheelbase: 65mm
Size: 80mm*80mm*37mm

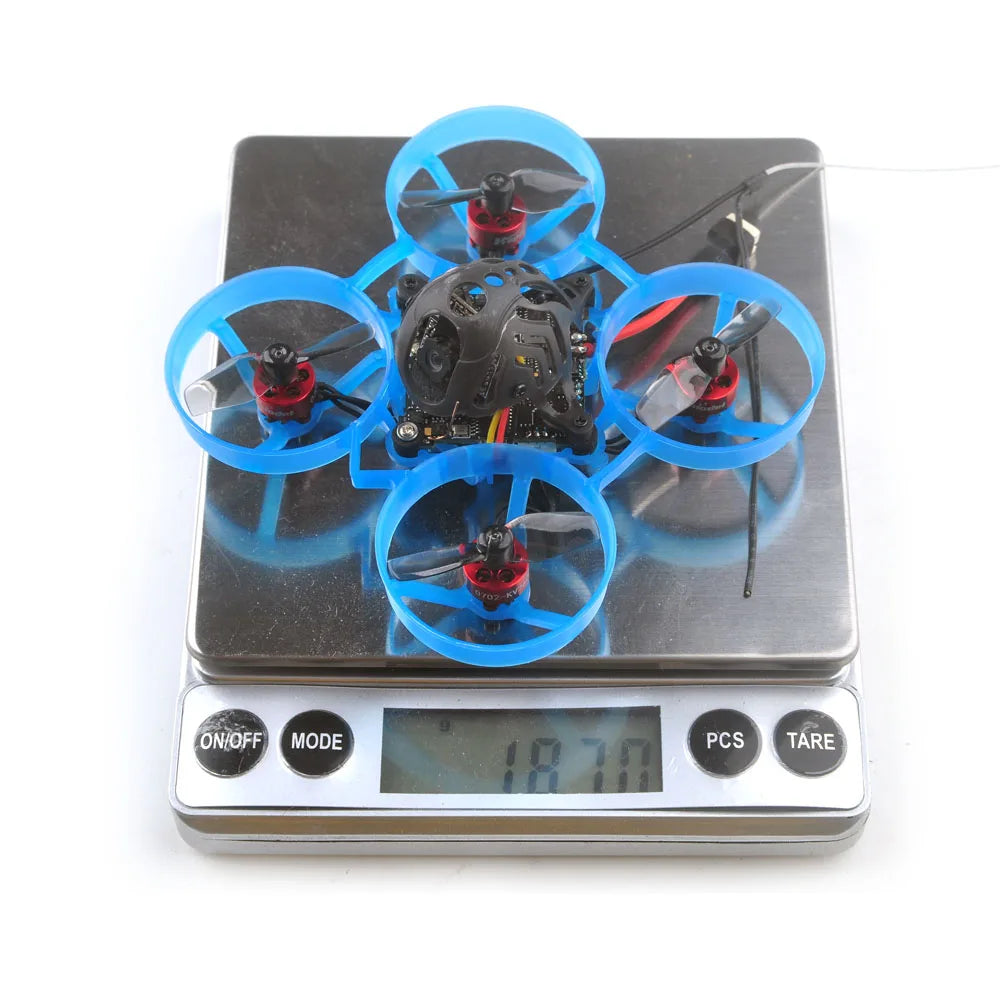

Weight: 18.7g
Receiver option:
2.4GHz ExpressLRS SPI receiver
915MHz ExpressLRS Serial-based receiver
868MHz ExpressLRS Serial-based receiver
|
|
Mobula6 ELRS 2.4G |
Mobula6 ELRS 915MHz |
Mobula6 ELRS 868MHz |
|
Flight controller |
ELRS F4 2G4 |
CrazyF4 ELRS |
CrazyF4 ELRS |
|
Firmware target |
CRAZYBEEF4SX1280 |
CRAZYBEEF4DX |
CRAZYBEEF4DX |
|
Built-in ExpressLRS receiver |
SPI 2.4GHz |
Serial-base 915MHz |
Serial-base 868MHz |
|
Built-in Dshot ESC |
5A |
5A |
5A |
|
Receiver antenna plug |
SMD ceramic antenna |
IPEX MHF3 |
IPEX MHF3 |
|
Onboard VTX power |
25mw~200mw |
25mw~200mw |
25mw~200mw |
|
Brushless Motor |
0702 KV26000 |
0702 KV26000 |
0702 KV26000 |
|
Propeller |
HQPROP 31mm Bi-blade |
HQPROP 31mm Bi-blade |
HQPROP 31mm Bi-blade |
|
Battery |
1s 300mah Lipo battery |
1s 300mah Lipo battery |
1s 300mah Lipo battery |
Package includes:
|
Item Name |
Qty |
|
Mobula6 1S 65mm whoop Drone Frame |
1 |
|
ELRS F4 2G4 flight controller built-in SPI expresslrs 2.4G receiver |
1 |
|
CrazyF4 ELRS flight controller built-in 915MHz expresslrs receiver |
|
|
CrazyF4 ELRS flight controller built-in 868MHz expresslrs receiver |
|
|
SE0702 KV26000 brushless motor |
4 |
|
HQPROP 31mm bi-blade propellers(4cw+4ccw) |
1 |
|
Runcam Nano3 1/3 CMOS 800TVL camera |
1 |
|
Onboard 5.8G 25mw~200mw VTX |
1 |
|
1S 300mah 30C LiHV Battery |
4 |
|
1S Lipo/LIHV USB Charger |
1 |
|
Propeller disassemble tool |
1 |
Spare parts specifications:
|
Motor |
Mode: SE0702 KV26000 |
|
Propellers |
HQprop31mmx2 |
|
Flight controller |
ELRS F4 2G4 flight controller built-in SPI expresslrs 2.4G receiver |
|
Onboard 4in1 ESC |
MCU upgraded to EFM8BB21 |
|
Onboard SPI ExpressLRS 2.4GHz Receiver |
Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz |
|
Onboard Serial-based ELRS Receiver |
Operation current: ~100Ma Firmware target: Happymodel_RX_ES915RX Receiver protocol: CRSF Could bind with Happymodel ES915TX , Frsky R9M and DIY ELRS TX module(need to flash the same version ELRS firmware) Firmware flash via Betaflight pass-through |
|
Onboard 5.8g VTX |
Output power: 25mw~200mw |
|
Runcam Nano3 |
Model: RunCam Nano 3 Image Sensor: 1/3" CMOS Horizontal Resolution: 800TVL Lens : 2.1mm(M8) FOV 160° Signal System: PAL/NTSC Non Switchable S/N Ratio: >50dB Electronic Shutter Speed: Auto Auto Gain Control (AGC): Auto Min. Illumination: 0.01Lux@1.2F D-WDR: Auto Day/Night: Color Power:DC 3-5.5V Current: 110mA@5V 120mA@3.3V Housing Material: ABS Net Weight: 1.2g Dimensions: L14mm*W14mm*H9mm |
|
Lipo Battery |
Capacity:300mAh Connector: PH2.0 |
