SPECIFICATIONS
Aerial Photography: No
Anti-wind Ability: other
Brand Name: AIRFORTH
Camera Mount Type: Other
Control Channels: 2 CHANNELS
Controller Battery: other
Controller Mode: MODE1,MODE2
Drone Weight: other
Flight Time: <5
High-concerned chemical: None
Indoor/Outdoor Use: Indoor-Outdoor
Is Batteries Included: No
Is Electric: No Battery
Material: Plastic
Origin: Mainland China
Package Includes: Original Box
Recommend Age: 14+y
Remote Control: No
Remote Distance: other
Takeoff Weight: other
Transit Time (Days): other
Video Capture Resolution: Other
Notice before buy:According to DJI's warranty policy, if there is a problem with the DJI O4 Air unit installed on the BNF Drone, it needs to be sent back to China mainland for warranty, please noticed.
The Happymodel Mobula7 O4 micro FPV whoop comes out now . It comes with the new DJI O4 air unit which would provide excellent and unbelievable FPV footage. And the new Happymodel RS1102 KV10000 motor with HQPROP 45mm propellers , bring a powerful and smooth flying experience. This would be a good option for indoor and backyard FPV flying.
Features:
Equipment with New DJI O4 air unit
2S battery support Powerful and Smooth freestyle flying
UART ExpressLRS receiver support stable control link
Lighter and small for indoor FPV

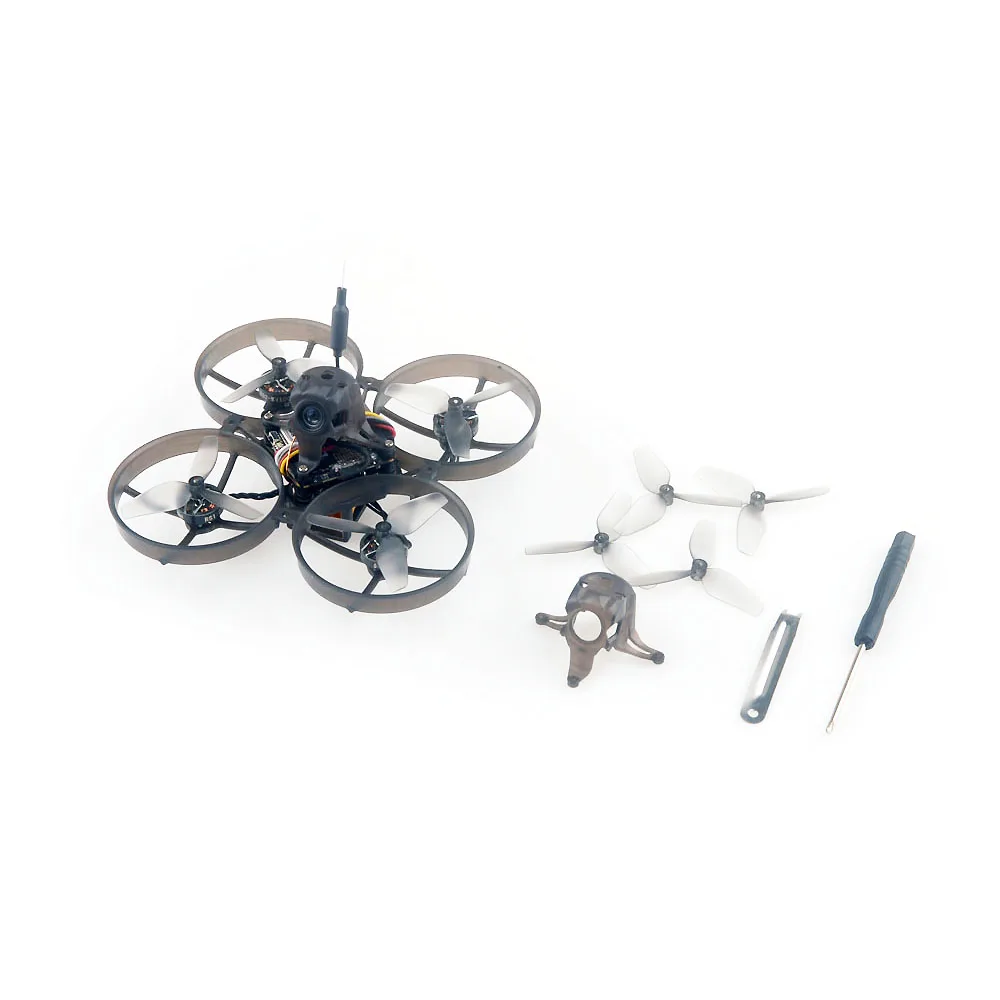

Package includes:
| Item Name | Qty |
| Happymodel M80 Frame | 1 |
| CrazyF405HD ELRS flight controller firmware target:BETAFLIGHTF4 | 1 |
| RS1102 KV10000 brushless motor | 4 |
| HQPROP 45MMX3 tri-blade propellers(4cw+4ccw) | 1 |
| DJI O4 Air unit | 1 |
| Canopy | 1 |
| Screw driver | 1 |
Spare parts specifications:
| Motor | Mode: RS1102 KV10000 Configu-ration:9N12P Stator Diamter:11mm Stator Length:2mm Shaft Diameter:Φ1.5mm Motor Dimension(Dia.*Len):Φ13.5mm*14mm Weight(g):2.8g No.of Cells(Lipo):1-2S |
| Propellers | Weight:0.33g Material: Poly Carbonate Pitch:0.9 Props Dia:45mm Hub Thickness:5mm Shaft:1.5mm |
| Flight controller | MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH) GYRO Sensor: BMI270 (SPI connection) Mount hole size: 25.5mm*25.5mm Power supply: 1-2S battery input (DC 2.9V-8.7V) Built-in 12A(each) Blheli_S 4in1 ESC Built-in Serial ExpressLRS 2.4G Built-in BMP280 Barometer Built-in 8MBp blackbox Built-in voltage meter sensor , voltage meter scale 110 Built-in current meter sensor , current meter scale 470 |
| Onboard 4in1 ESC | Power supply: 1-2S LiPo/LiPo HV Current: 12A continuous peak 15A (3 seconds) Support BLHeli_S Bluejay firmware Factory firmware: Bluejay ESC V0.19 Firmware target: Z-H-30 Default protocol: DSHOT300 When use 1s battery and high KV 0702/0802 motors, should set startup power to 1100/1200 |
| Onboard UART ExpressLRS 2.4GHz Receiver | Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz RF Frequency: 2.4GHz Antenna: enameled copper wire 31mm length Telemetry output Power: <12dBm Default firmware version: ExpressLRS V3.0.1 Firmware target: HappyModel EP 2400 RX Could update firmware via ExpressLRS configurator |
| DJI O4 Air Unit | Weight: Air Unit (camera module included): Approx. 8.2 g Transmission Module: 30×30×6 mm (L×W×H) Camera Module: 13.44×12.36×16.50 mm (L×W×H) Camera Cable Length: 50mm Coaxial Cable: 50 mm 3-in-1 Cable: 50 mm Operating Frequency: 5.170-5.250 GHz 5.725-5.850 GHz Operating frequency varies by region. Refer to local regulations. Transmitter Power (EIRP): 5.1 GHz: <23 dBm (CE) 5.8 GHz: <30 dBm (FCC) <14 dBm (CE) <30 dBm (SRRC) Live View Quality: 1080p at 30/50/60/100fps |

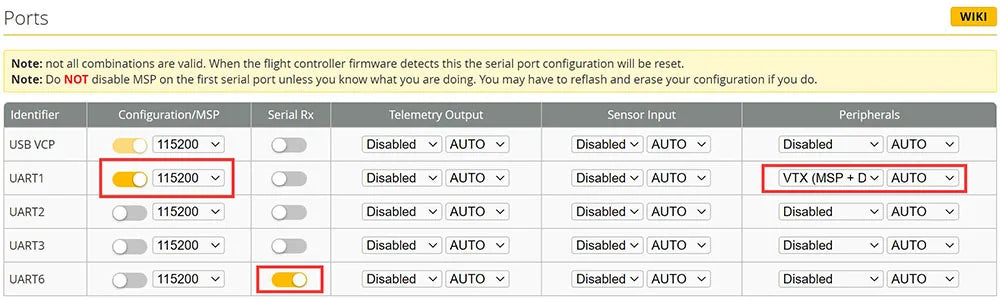

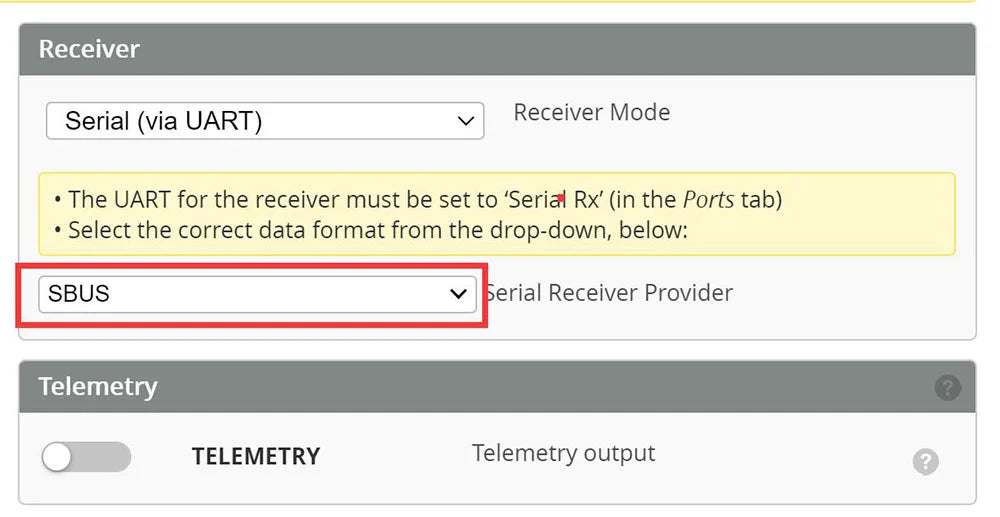

***If you want to use DJI FPV Remote controller, please change betaflight settings like following picture,no need do any hardware modification to the flight controller:
