SPECIFICATIONS
Aerial Photography: No
Anti-wind Ability: other
Brand Name: NoEnName_Null
Camera Mount Type: Other
Control Channels: 2 CHANNELS
Controller Battery: other
Controller Mode: MODE1,MODE2
Drone Weight: other
Features: Other
Flight Time: <5
High-concerned chemical: None
Indoor/Outdoor Use: Indoor-Outdoor
Is Batteries Included: No
Is Electric: No Battery
Material: Plastic
Origin: Mainland China
Package Includes: Original Box
Recommend Age: 14+y
Remote Control: No
Remote Distance: other
Takeoff Weight: other
Transit Time (Days): other
Video Capture Resolution: Other

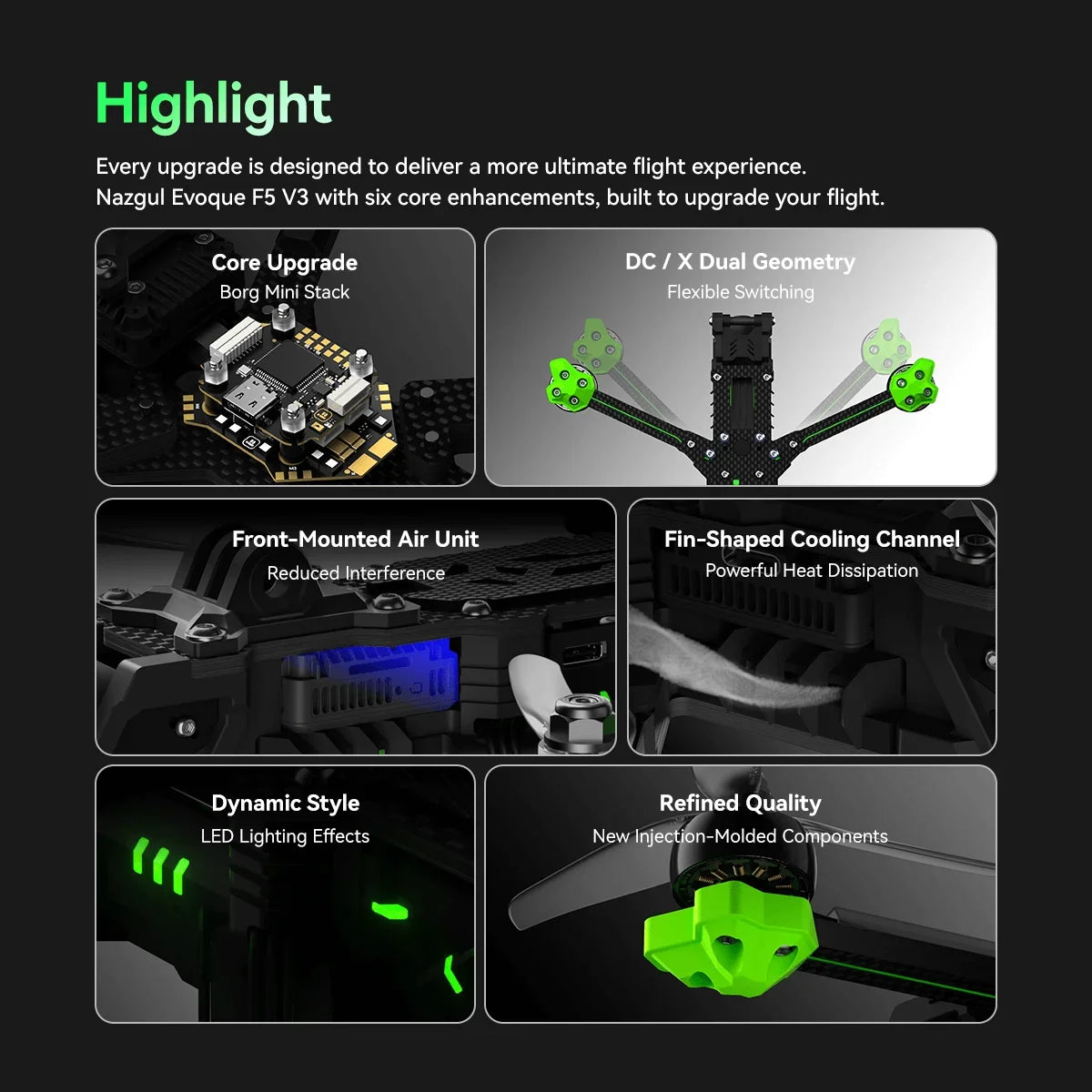

Every upgrade of the Nazgul Evoque F5 V3 is engineered to elevate your flight experience to new heights, featuring six core enhancements that redefine versatility and performance for drone enthusiasts. At its core, the innovative switchable DC/X-frame design stands out as a game-changer—seamlessly adapting to every flight scenario you demand. Opt for the DC geometry when capturing stunning cinematic shots, ensuring zero propeller obstruction for crystal-clear footage, or switch to the agile X geometry to unlock dynamic, high-speed freestyle maneuvers, making it a versatile companion for both creative filming and adrenaline-fueled flights.
Whether you’re a professional pilot chasing precise control or a hobbyist seeking immersive fun, this drone is intuitive to master, empowering you to explore diverse flying styles and unlock endless aerial enjoyment.

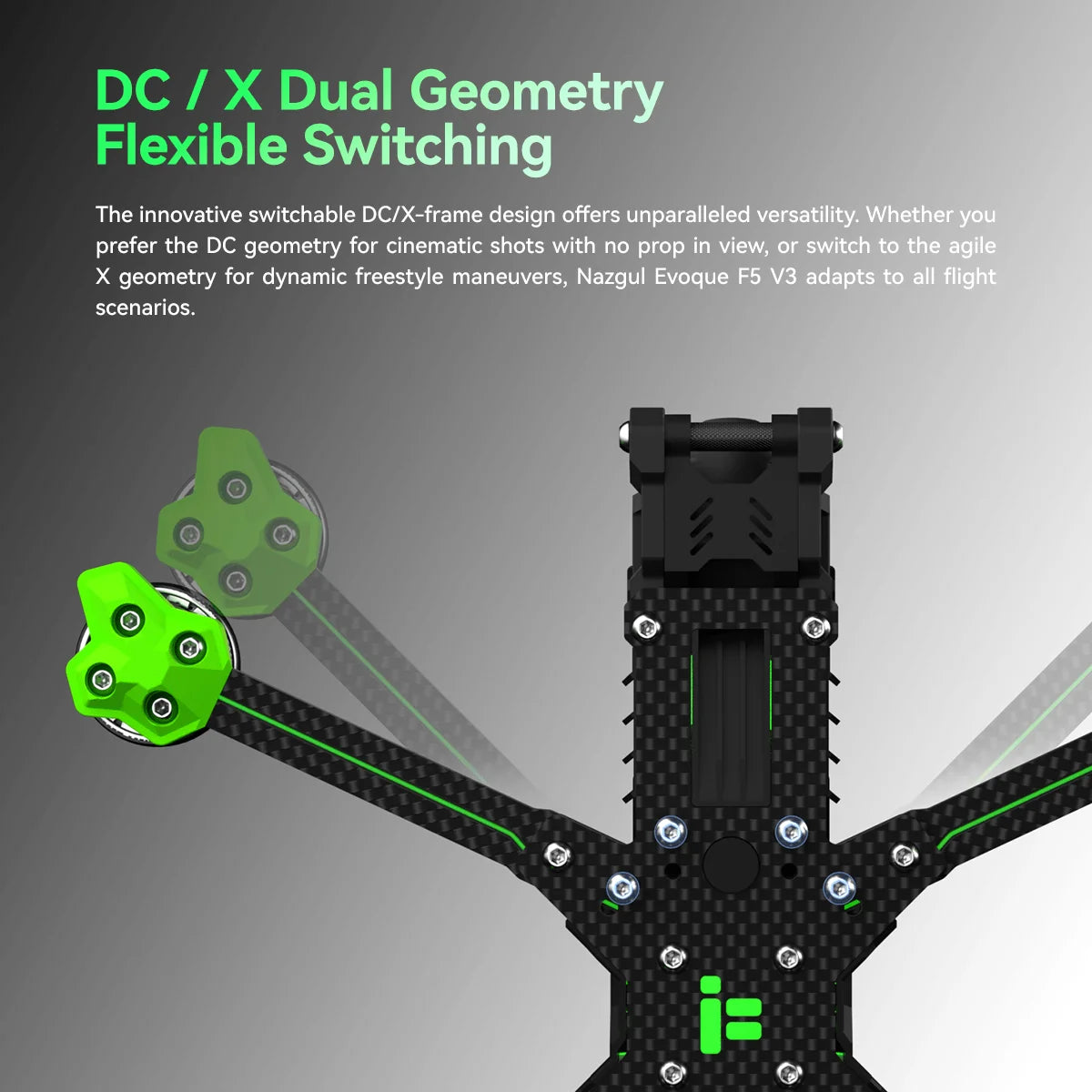

DC /X Dual Geometry Flexible Switching
The innovative switchable DC/X-frame design offers unparalleled versatility. Whether you prefer the DC geometry for cinematic shots with no prop in view, or switch to the agile X geometry for dynamic freestyle maneuvers, Nazgul Evoque F5 V3 adapts to all flight scenarios.

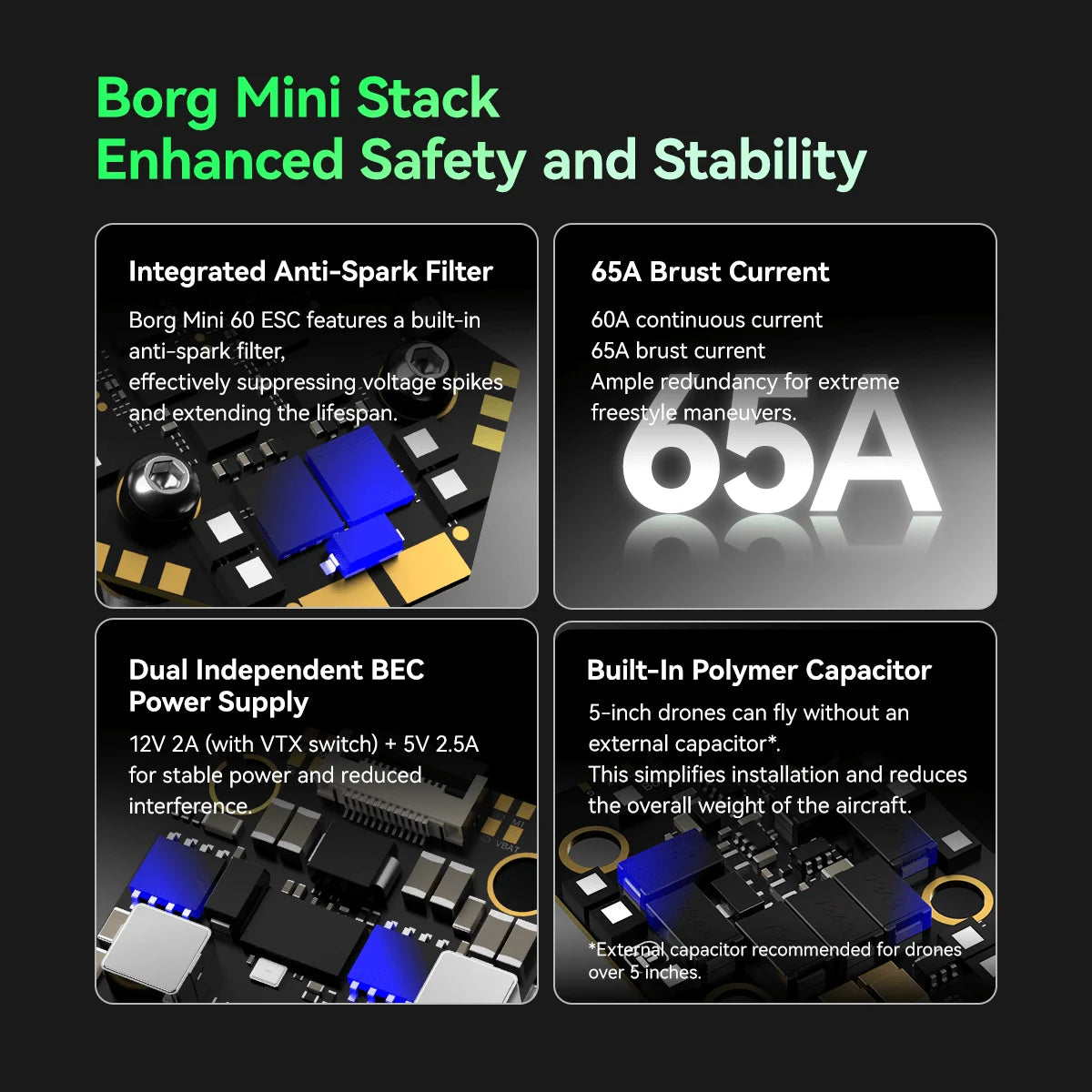

Borg Mini Stack Enhanced safety and stability
Integrated anti-spark Filter, 65A brust current, dual independent BEC power supply, and built-in polymer capacitor further enhancing safety and stability.

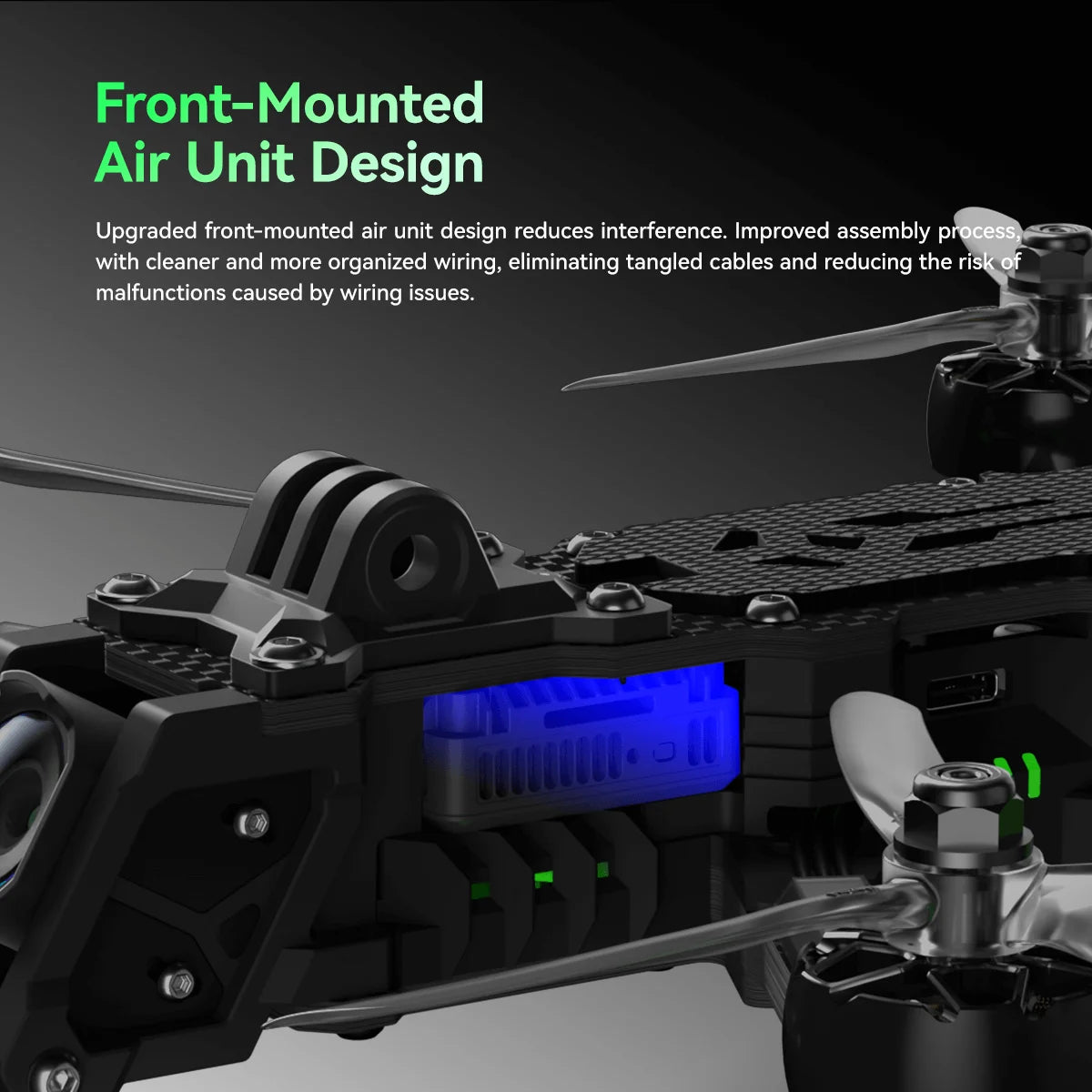

Front-Mounted Air Unit Design
Upgraded front-mounted air unit design reduces interference. Improved assembly process with cleaner and more organized wiring, eliminating tangled cables and reducing the risk of malfunctions caused by wiring issues.
Upgraded Appearance Style Meets Performance
Innovative Fin-Shaped Cooling Channel significantly enhances heat dissipation. Even in hot weather, it quickly disperses heat to ensure stable flight performance.
Refined Injection-Molded Construction Upgraded Quality
Upgraded from TPU printed parts to full injection-molded components, delivering superior material integrity and refined tactile smoothness.
Flagship Recording Capability Equipped with DJl O4 Air Unit Pro
Upgraded with a 1/1.3-inch image sensor, delivers remarkable performance in low-light and night environments. Capture low-altitude, high-speed flight footage in 4K resolution with an ultra-wide 155° FOV. Experience the immersive visual impact of flight like never before, with crisp 4K output that effortlessly meets your creative needs.
Product Name: Evoque F5 V3 O4 HD BNF
FC: Borg Mini F7 Flight Controller
ESC: Borg Mini 60 ESC
Video Transmission: DJI O4 Air Unit Pro
Geometry: DeadCat (default) / True X (switchable)
Frame wheelbase: 236mm(DC-Default)/239mm(True X)
Motor: XING2 2207 1750KV motors
Prop: Nazgul F5 propellers
Weight: 492±5g
Takeoff Weight: Approx. 736±5g (With 1480mAh Battery)
Dimensions (L×W×H): 230*207*54mm(DC-Default)/207*199*54mm(True X)
Adjustable angle of the camera: 10-45°

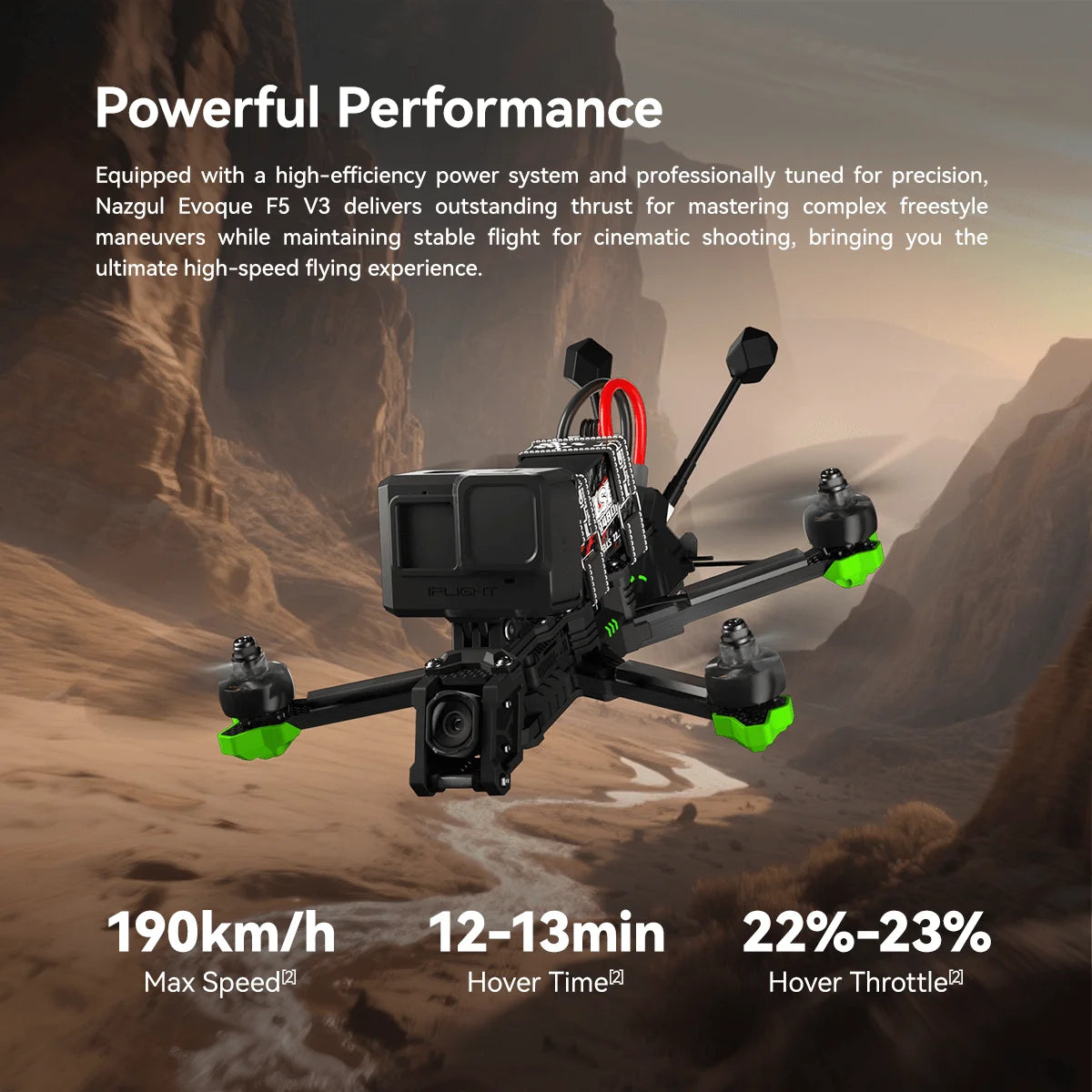

Max Speed: 190 km/h
Maximum Takeoff Altitude: 7000 m
Max Hover Time: Approx. 12-13 min (No load With 6S 1480mAh)
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: Dual Antennas
GNSS： GPS+SBAS+Galileo+QZSS+Glonass (Optional)
Product Name: DJI O4 Air Unit Pro
Image Sensor: 1/1.3-inch
Lens: FOV: 155°
ISO: 100-25600
Video Resolution: 1080p/100fps H.265
Video Format: MP4, Max Video Bitrate: 130Mbps
Color Mode: Normal Mode/D-Log M
Stabilization: RockSteady 3.0+ ; Stabilization function off (When RockSteady is enabled, the shooting angle only supports standard.)
Live View Quality: 1080P@100fps
Operating Frequency: 5.170-5.250 GHz & 5.725-5.850 GHz
Transmitter Power (EIRP): 5.1GHz＜23dBm(CE)/5.8GHz＜33dBm(FCC)/＜14dBm(CE)/＜30dBm(SRRC))
Max Video Transmission Range: With DJI Goggles 3/DJI Goggles N3: 15 km (FCC), 8 km (CE), 8 km (SRRC)
Communication Bandwidth: Max 60 MHz
Antenna: Dual antennas
Built-in Storage: 4GB
Supported SD cards: microSD (up to 512GB)
Operating Temperature: -10° to 40° C
Weight: Air Unit (camera module included): Approx. 32 g
Dimensions: Transmission Module: 33.5×33.5×13 mm (L×W×H)
1 x Nazgul Evoque F5 V3 6S O4 HD BNF
2 x Antennas
1 x Battery pad
2 x propeller(Pairs)
2 x Battery strap
