SPECIFICATIONS
Aerial Photography: Yes
Anti-wind Ability: 1
Brand Name: Aoft Technology
Camera Mount Type: 2-Axis Gimbal
Control Channels: 4 channels
Controller Battery: 450mah/550mah
Controller Mode: MODE2
Drone Weight: 55g
Features: App-Controlled
Flight Time: 5~10
High-concerned chemical: None
Indoor/Outdoor Use: Indoor-Outdoor
Is Batteries Included: Yes
Is Electric: No Battery
Material: Plastic,Metal
Model Number: Cetus X FPV Kit
Operator Skill Level: Beginner,Intermediate
Origin: Mainland China
Package Includes: Original Box,Batteries,Remote Controller,charger,Operating Instructions
Recommend Age: 14+y
Remote Control: Yes
Remote Distance: 200m
State of Assembly: Ready-to-Go
Takeoff Weight: 70g
Transit Time (Days): 200meters
Type: HELICOPTER
Video Capture Resolution: Other
Bullet Point
Note: FC (Betaflight FC Version) has been replaced from F4 1S 12A FC to F4 2S 15A V1.0 FC since Sep 2023.
Item: Cetus X FPV Kit
Weight: 55g
Wheelbase: 95mm
FC*: F4 2S 15A V1.0 FC (Betaflight FC Version)/Cetus BL V3 FC (Cetus FC Version)
Motors:1103 11000KV Motor
Props:Gemfan 2020 4-Blades Props
Camera: C04 FPV Camera (Caddx Nano Ant Camera/Runcam Nano 4)
Camera Adjustable Angle: 0°-40°
Receiver Protocol: ELRS 2.4G (Betaflight FC Version)/Frsky D8 (Cetus FC Version)
VTX: M04 25-400mW VTX (Betaflight FC Version)/Cetus 25-350mW VTX V2 (Cetus FC Version)
Quadcopter:Cetus X Brushless Quadcopter
Transmitter:LiteRadio 3 Radio Transmitter
Goggles:VR03 FPV Goggles
Battery:BT2.0 450mAh 1S 30C Battery
Flight time: 5 mins
Specification
Nothing quite beats the experience of flying Cetus X with an enhanced propulsion system, and longer radio and video transmission. With a very functional and potential remote controller and FPV goggles, pilots can unlock more accomplishments to the next level.
The Betaflight FC comes with the most popular firmware in the FPV community.Beginners are able to learn and understand more about FPV, which is an essential way to get drone experience.
The Cetus FC version offers anauxiliary flight function for pilots with three speed modes. It is easier and more suitable for initial pilots.
Classical white design inherited fromCetus Seriesand ade of PA12 material, the Cetus X frame has an excellent impact resistance in drop & impact and reduces the risk of damage, giving you more peace of mind.
The 360° protection of the whoop frame ensures safe flights both indoors and outdoors. Meanwhile, the FPV camera supports 0°-40° adjustable degrees, which provides different views for pilots.
LiteRadio 3 reserves a nano bay that supports the external TX module for the compatibility of more quadcopters. And the VR03 FPV goggles which are newly added a Micro SD card slot to save the video with DVR recording, support most Analog VTXs in the market.

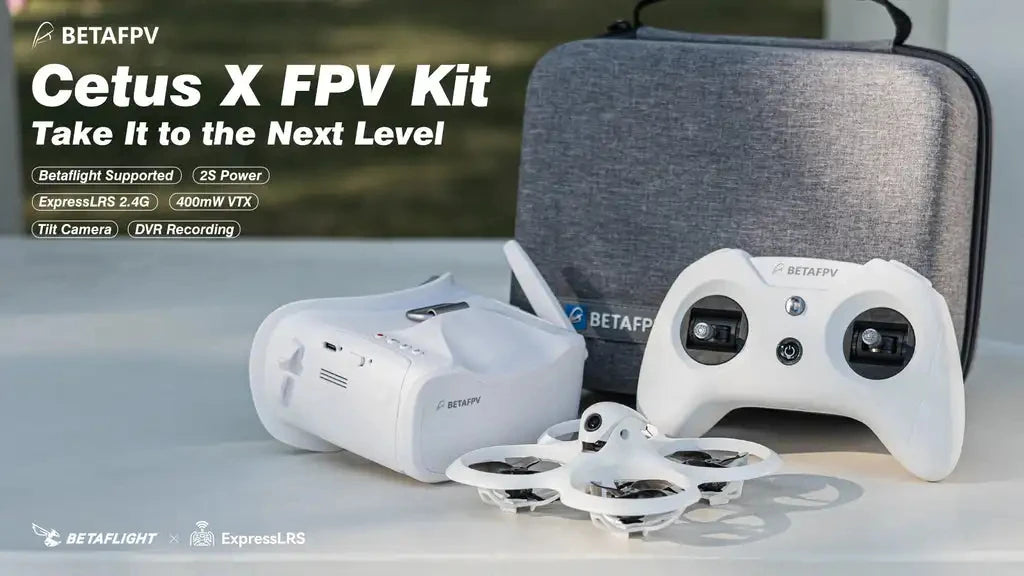

The quadcopter, radio transmitter, FPV goggles, and all of the accessories are packed in an EVA portable storage bag. It is convenient to carry outside and better to protect the equipment.

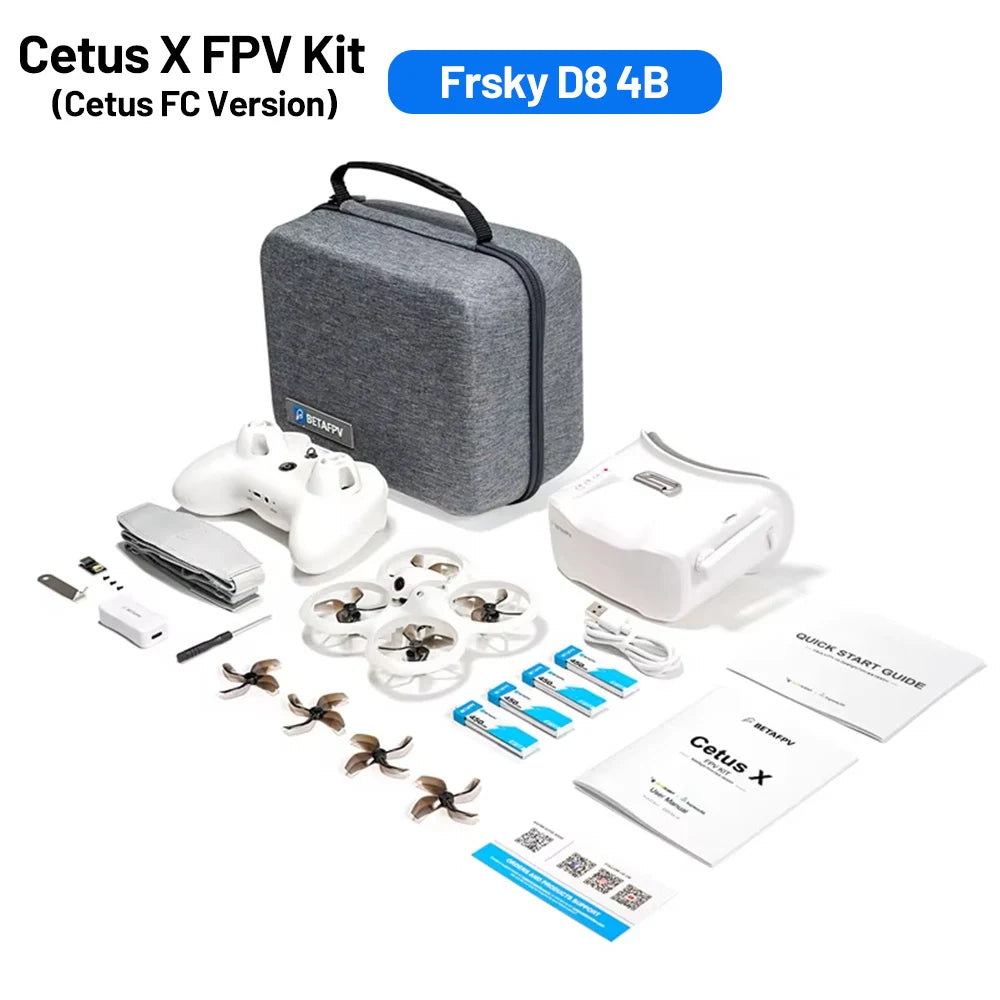

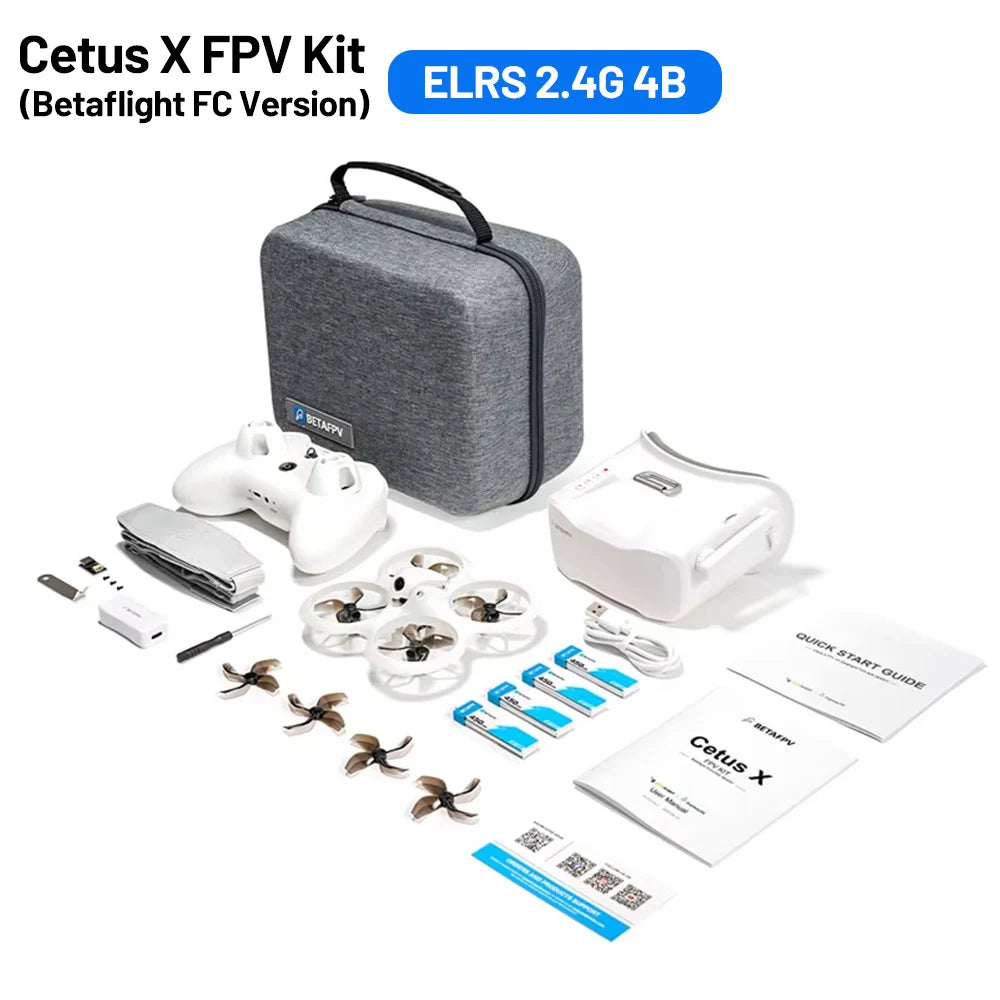

Package
-

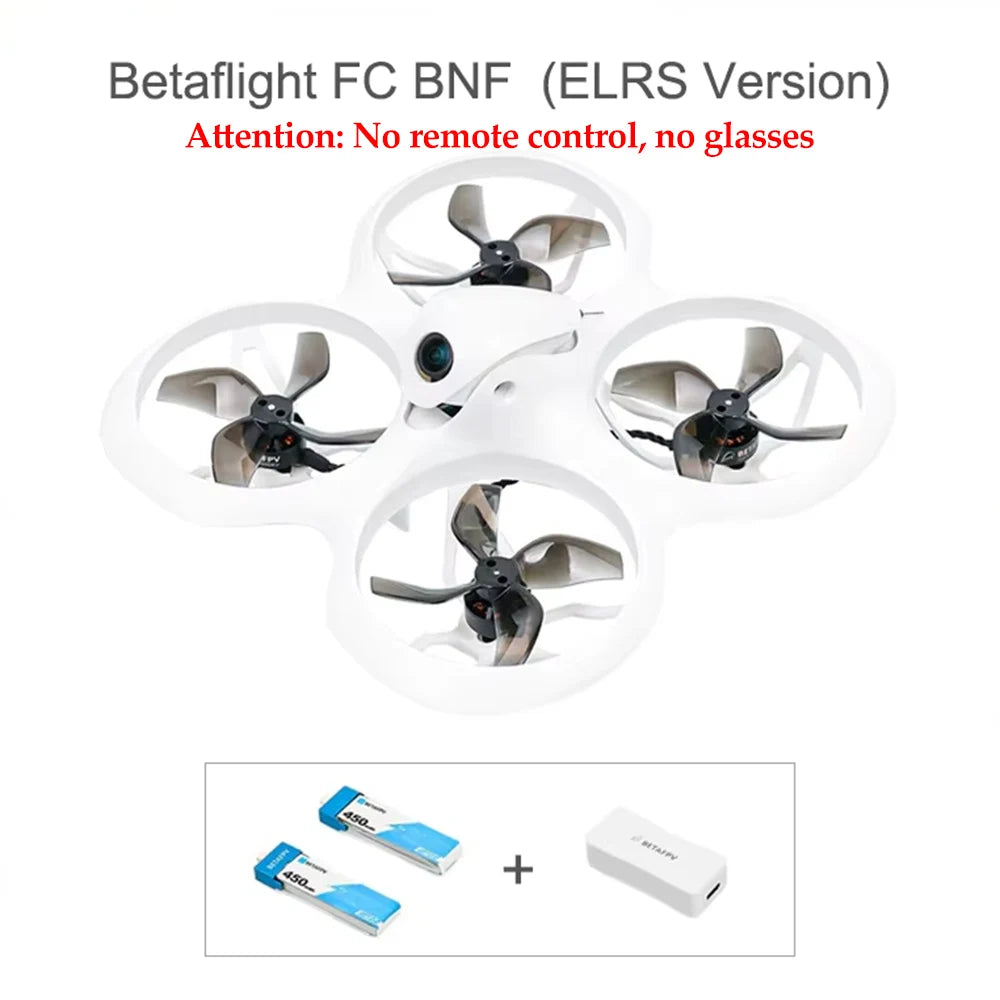

1 * Cetus X Brushless Quadcopter (Betaflight FC or Cetus FC Version)
1 *LiteRadio 3 Transmitter (ELRS 2.4G or Frsky)
1 *BETAFPV VR03 FPV Goggles
4 *BT2.0 450 mAh 1S Lipo Battery
1 *BT2.0 Battery Charger and Voltage Tester
1 *USB Charging Cable (Type-C)
1 *Type-C to FC Adapter
1 *Prop Removal Tool
4* Gemfan 2020 4-Blades Prop (Spare Set)
2 * User Manual (Betaflight FC or Cetus FC Version)
1 *Portable Storage Bag
-
Cetus FC or Betaflight FC

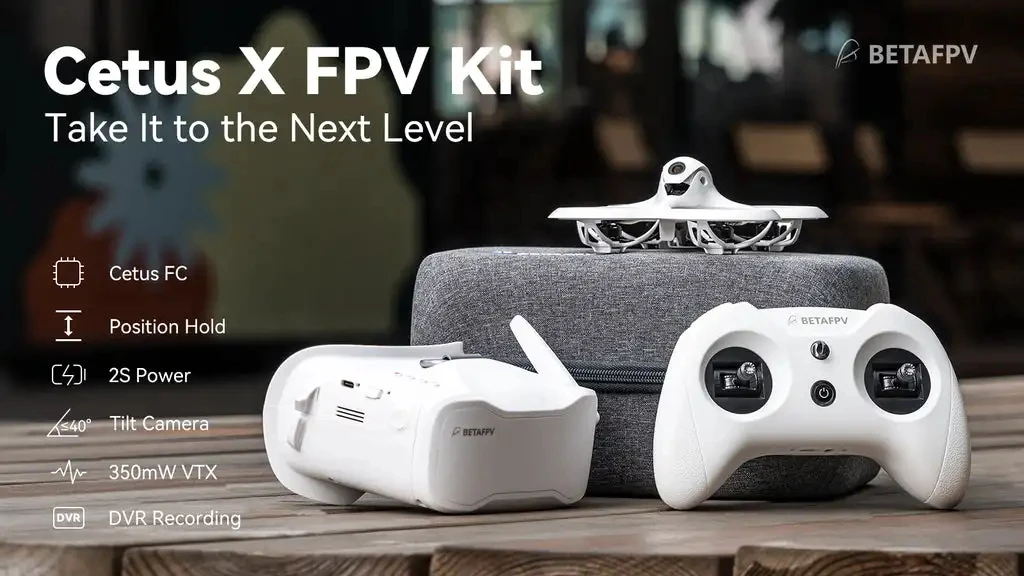

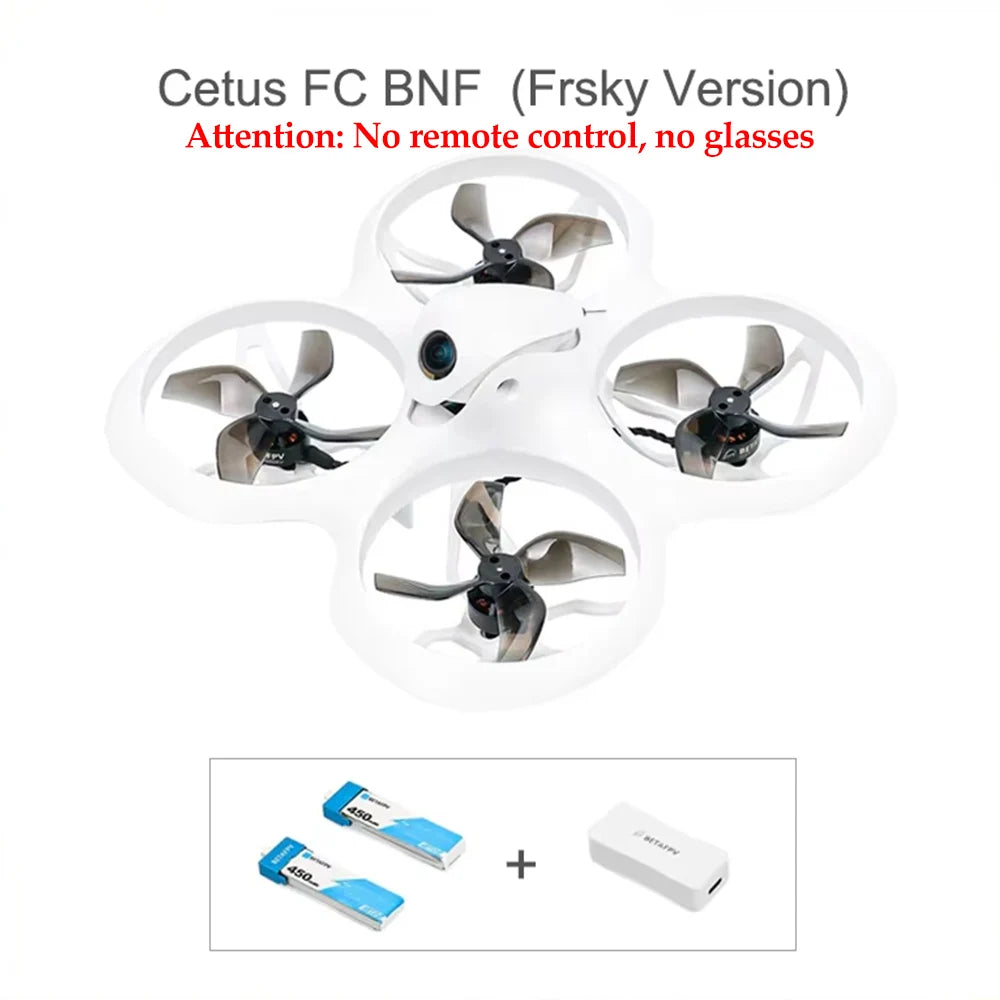

Cetus X with the classical Cetus flight controller version is released. It supports the position hold function, which provides easier control to pilots. If select the Betaflight FC version, pilots are able to get and learn tons of FPV knowledge via the popular open source Betaflight flight controller community. Both FC versions perform great in power and speed and feature higher-grade control modes for pilots to get advanced.
Cetus FC Version
BetaflightFC Version
Flight Controller
Cetus BL V3 FC
F4 2S 15A V1.0 FC
Receiver Protocol
Frsky D8
ExpressLRS 2.4G
Flight Mode
N/S/M/Turtle Mode
Angle/Horizon/Air/Turtle Mode
VTX
25-350mW
25-400mW
Position Hold
Support
Not Support
Configuration Software
BETAFPV Configurator
Betaflight Configurator
Note: FC (Betaflight FC Version) has been replaced from F4 1S 12A FC to F4 2S 15A V1.0 FC since Sep 2023.
Auxiliary Flight Function

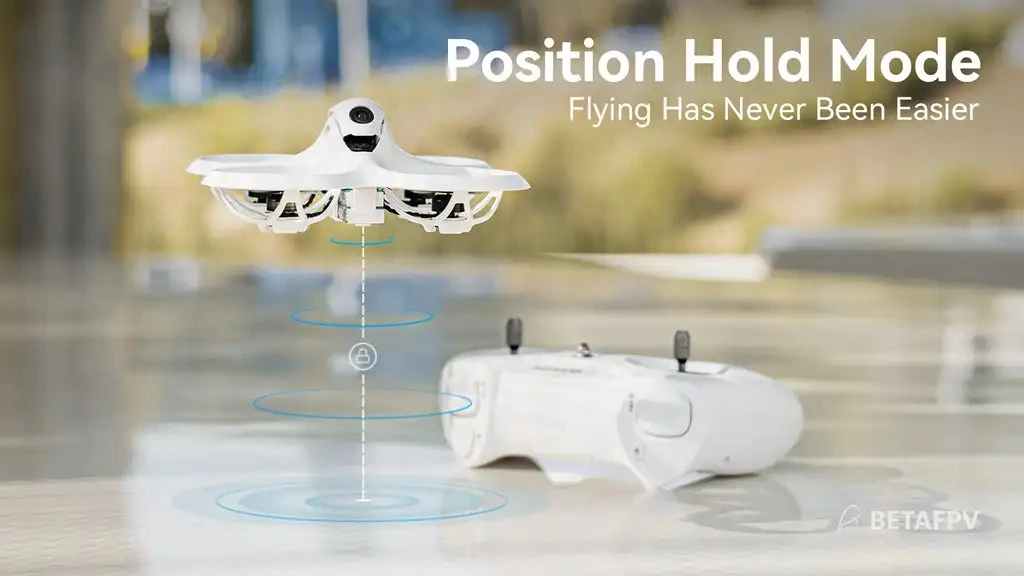

Built-in highly precise barometer to detect the height, the version with Cetus FC benefits from great stability due to its position hold mode, and auto-hovering, which enables the drone to stay at the current height. This function also ensures an emergency landing of the drone whenever loses control or is on low battery. Meanwhile, its stable flight allows you to catch the best footage with the VR03 FPV Goggles very well. It really does an immense amount of fun and ease of flight for all pilots.

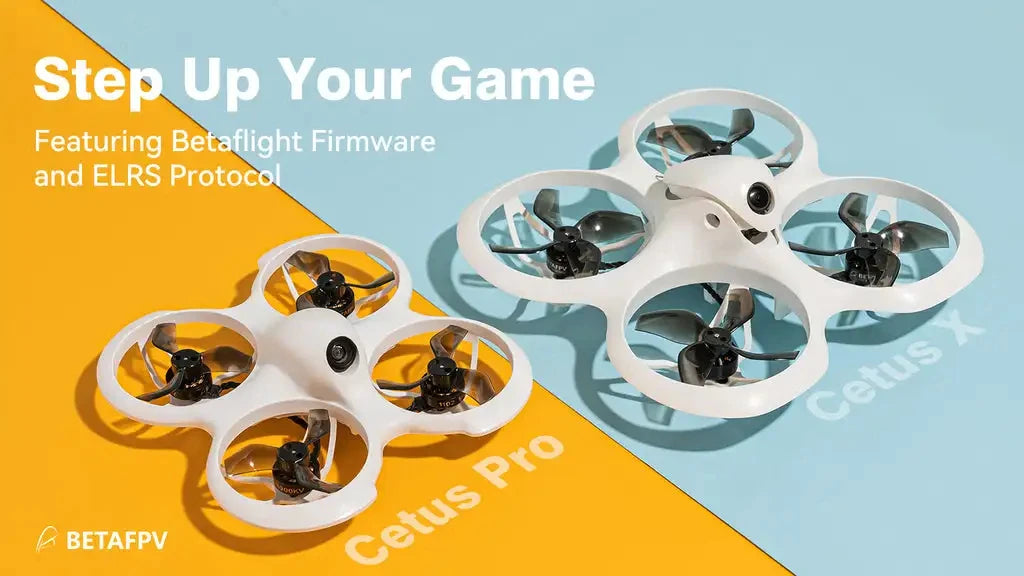

Powered by 2S, Cetus X has loads of punch and speed, making it smoother and more suitable for outdoor practice, great for the next level. For indoor practice, the Cetus Pro with 1S power, which has the same auxiliary flight function, is easier for initial pilots to control and fly.
Note: The position hold function is only available in N mode.

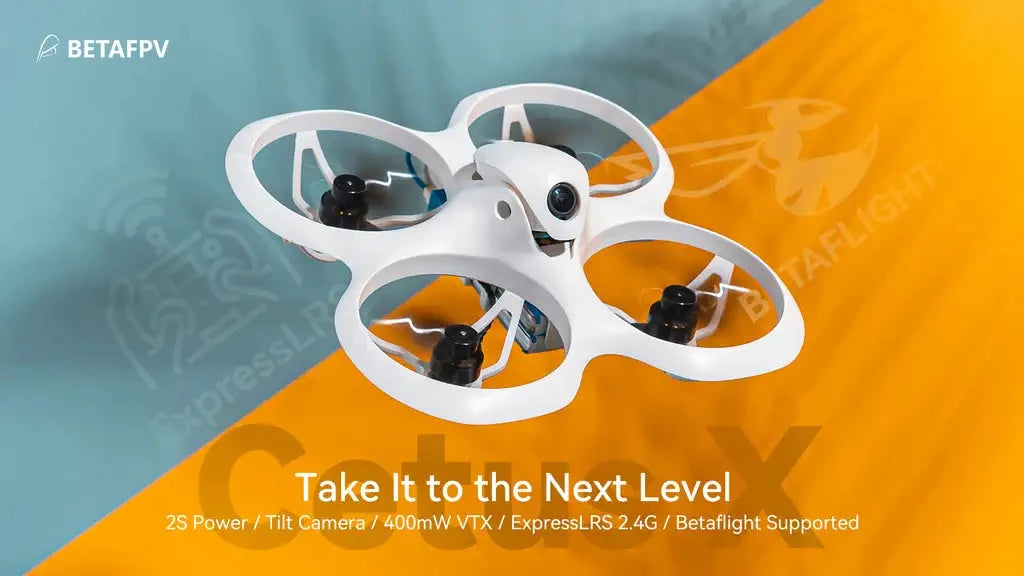

Powerful Propulsion System

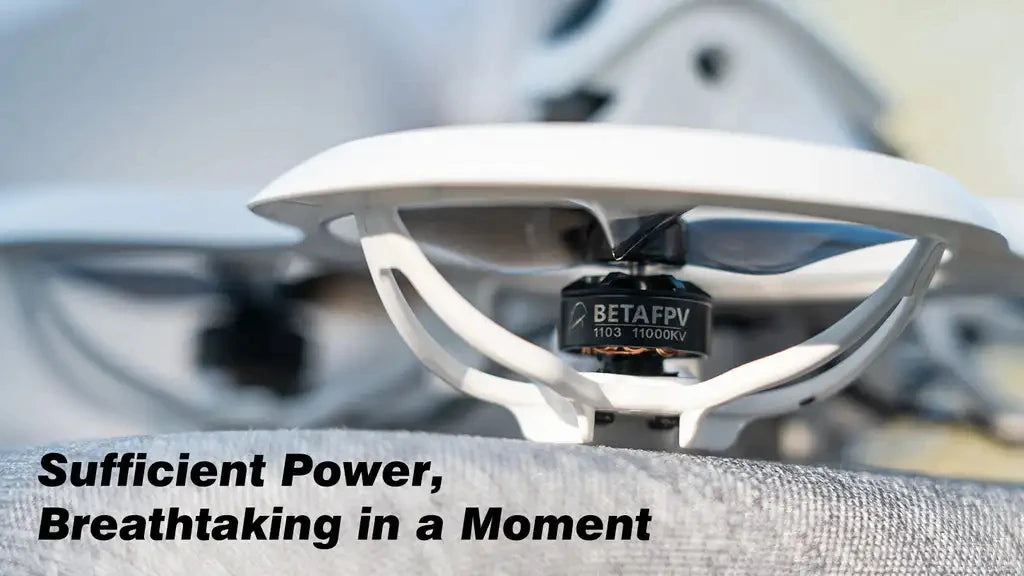

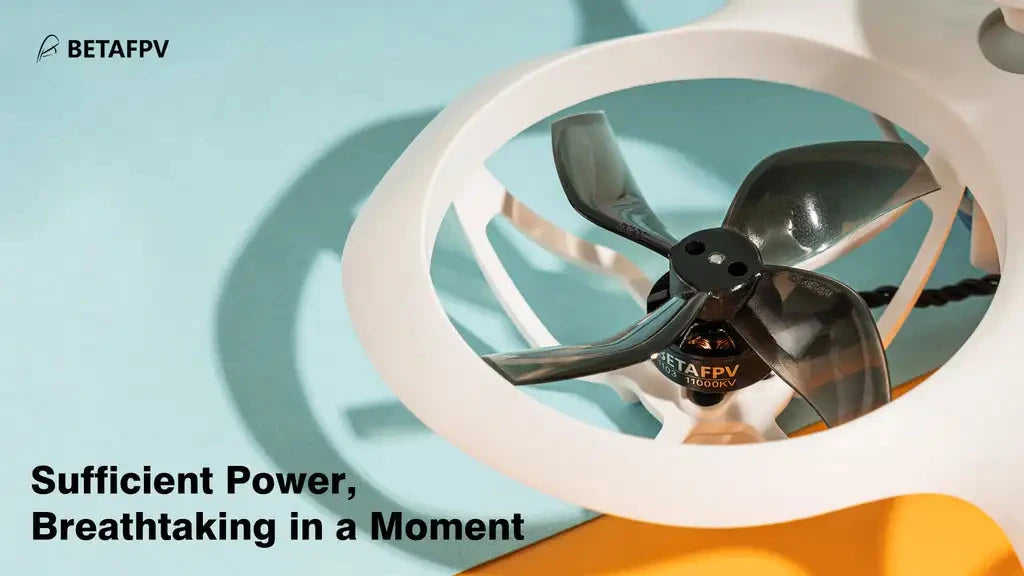

Equipped with1103 11000KV Brushless Motorand Gemfan 2020 4-blade props, Cetus X Brushless Quadcopter delivers powerful propulsion, making it a 2S power whoop drone with some real punch to it. Besides, the whole quadcopter is light and durable enough, offering pilots a high-efficiency flight experience.

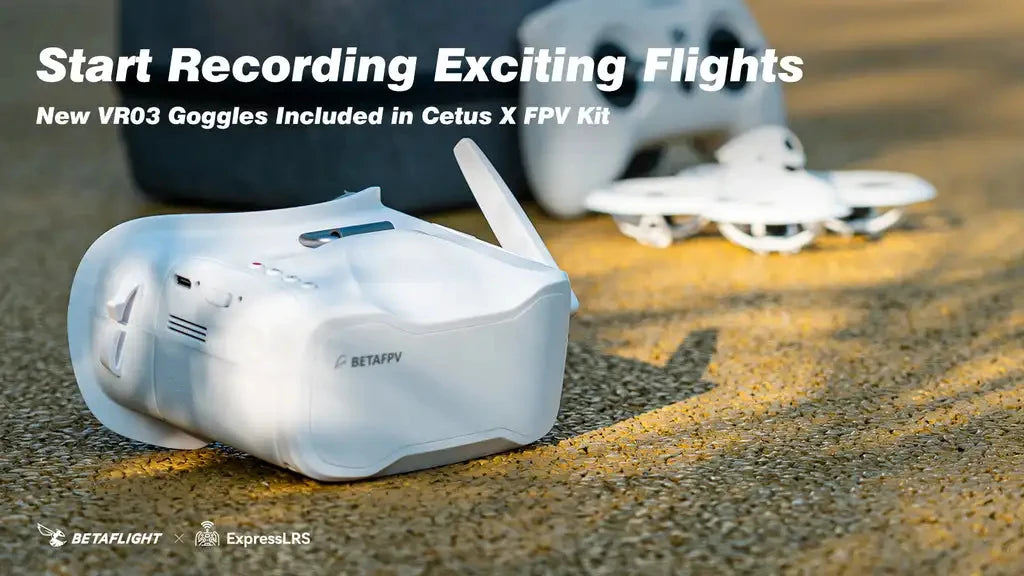

Recording Every Flight Moment
Newly developed by BETAFPV, and based onVR02 FPV Goggles, the VR03 FPV Goggles take features of VR02 and come with a DVR recording function. Pilots can enjoy the playback saved through the goggles or export the videos by Micro SD card. This exciting function allows pilots to catch the memorably breathtaking moment, greatly heightening the FPV flying experience.

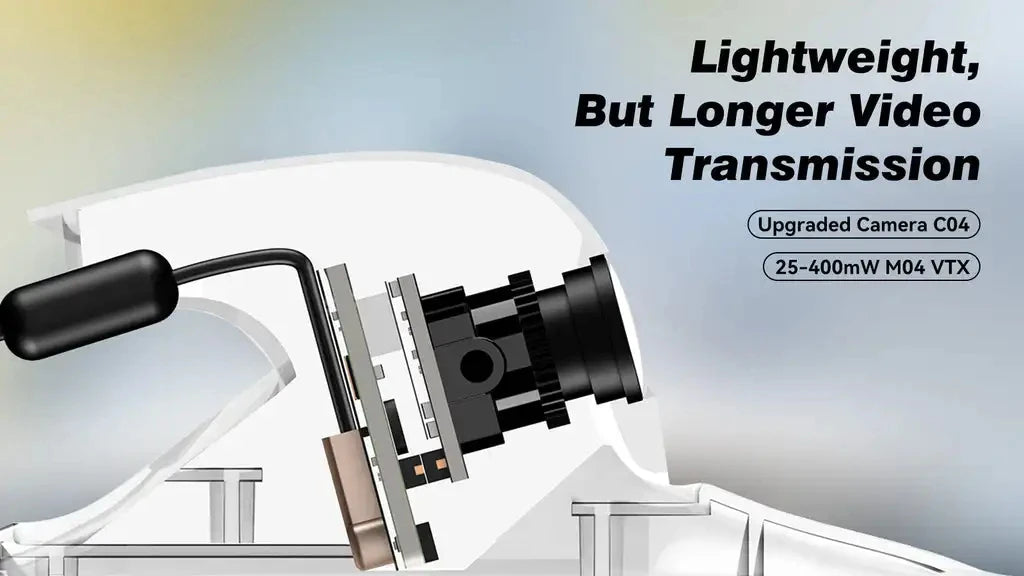

Improved Video Transmission

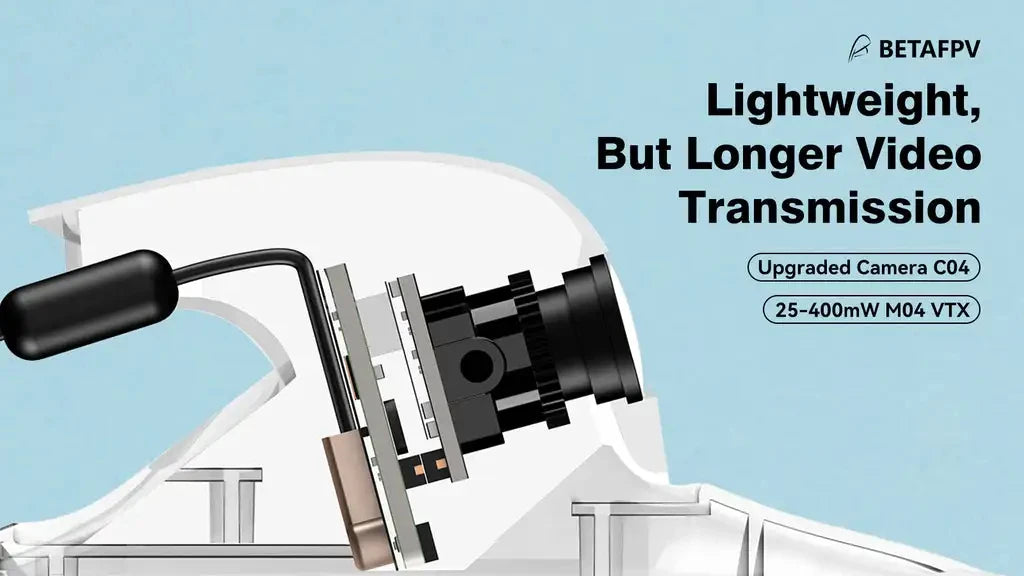

Cetus X comes with M04 25-400mW VTX and C04 FPV camera. Both VTX features a lightweight and adjustable output power for longer distance flying. Combining this VTX and the excellent radio link ExpressLRS 2.4G, pilots can fly whoop drones longer to explore more possibilities and have fun. In addition, C04 FPV camera (based on Caddx Nano Ant Camera/Runcam Nano 4) shows better quality in FPV flight compared withC02 FPV camera.

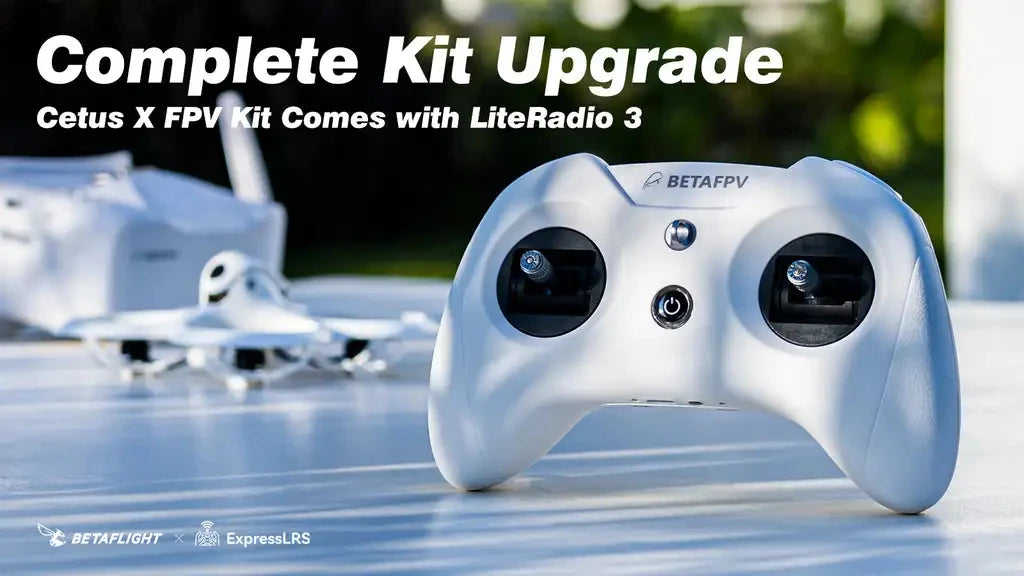

LiteRadio 3 Radio Transmitter
This transmitter features an ergonomically designed handle and has superb performance in its working time, a newly updated gimbal. Besides, this version supports BETAFPV Configurator, which is a utility designed to simply update, configure, and tune the radio controller. Experience the thrill of total immersion with unrivaled control and capture the world around you.
FPV Simulator Supported
First time flying a quadcopter? You can learn and practice flying a quadcopter through an FPV simulator before real flying. LiteRadio 3 is available to play FPV simulators like DRL/DCL/Uncrashed/Liftoff. More convenient for practicing and charging at the same time. Here is the display of Liftoff.Download Liftoff here.
Note: This radio transmitter isn't compatible with Windows 11/Windows 10 systems running on AMD CPUs. If you wanna connect to a simulator, you will need to revert it to the ELRS 2.0 firmware.
Various Modes, Accessible to All

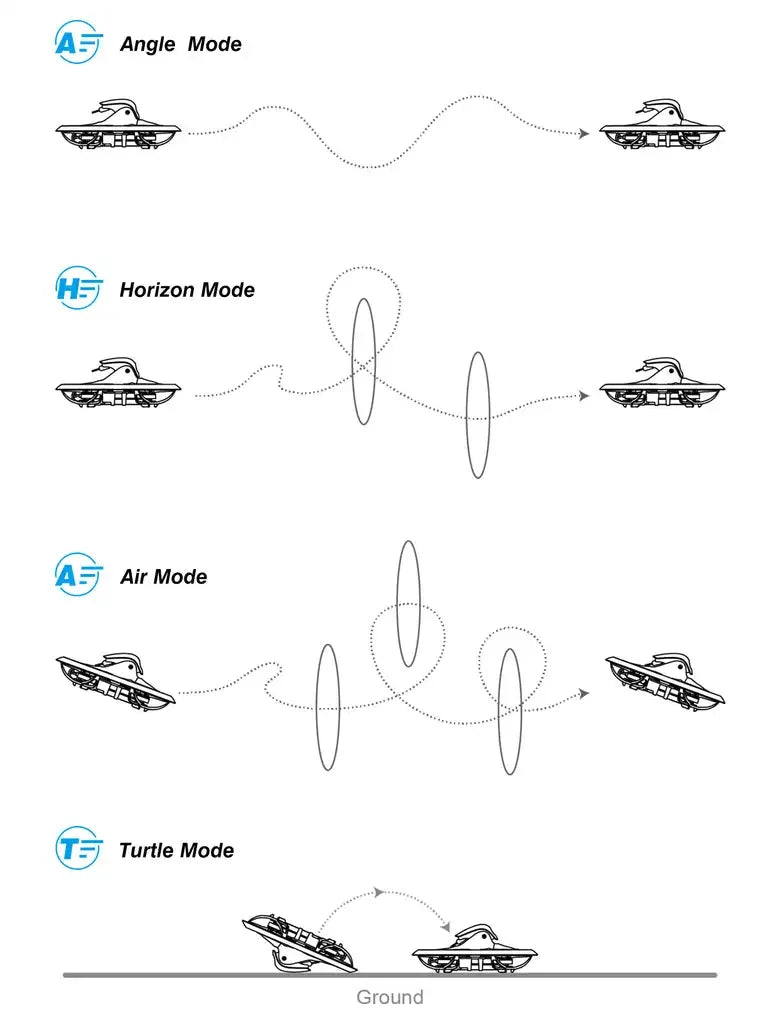

Cetus X (Betaflight FC) supports Angle/Horizon/Air Modes, which can satisfy the different needs of pilots and adapt to various flight environments. When the quadcopter falls to the ground and upside down, you can activate turtle mode by LiteRadio 3 transmitter to flip it over and resume flying.

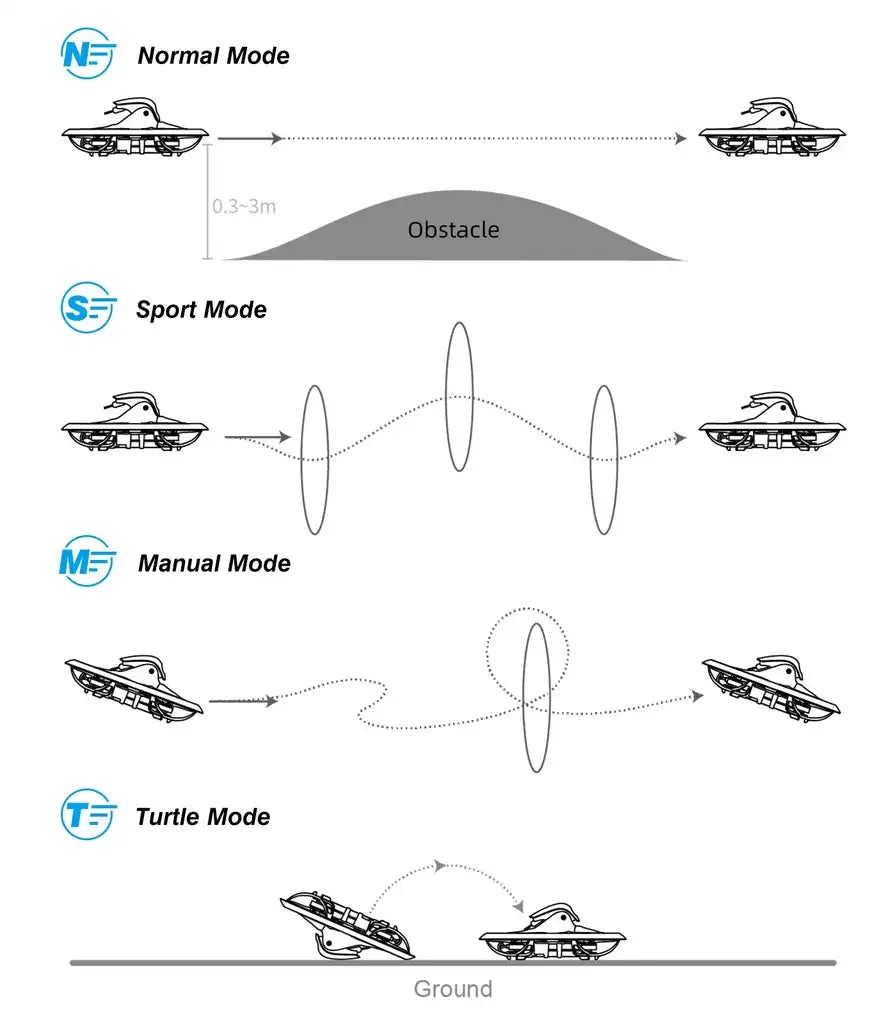

The version with Cetus FC has N/M/S three flight modes and supports 3 different speeds with SLOW/MID/FAST. Whether you're a seasoned FPV pilot or a complete beginner, the Cetus X FPV Kit helps anyone fly confidently from day one.
Note: The slow speed of Cetus FC version is not available on its M mode.
BETAFPV Cetus Series
BETAFPV Cetus Series has been very popular since its release in 2021 and become the primary FPV choice for new beginners. Whether propulsion system, radio transmitter, VTX range, or other functions, BETAFPV never stops step to make the product better. From the initial Cetus to Cetus X so far, Cetus Series always satisfies customers' needs no matter new beginners or seasoned pilots.
