Summary

The Cinelog30 V2 is a 3-inch FPV drone designed for both cinematic shots and recreational flying. It features an advanced protective frame and builds on the Cinelog series' superior handling and stability. With extensive upgrades, it takes everything you loved about the Cinelog series and cranks it up for even better filming and flying.
The advanced shock-absorbing system drastically minimizes instability, ensuring exceptionally stable and high-quality footage. Its quiet operation makes it ideal for various filming scenarios.

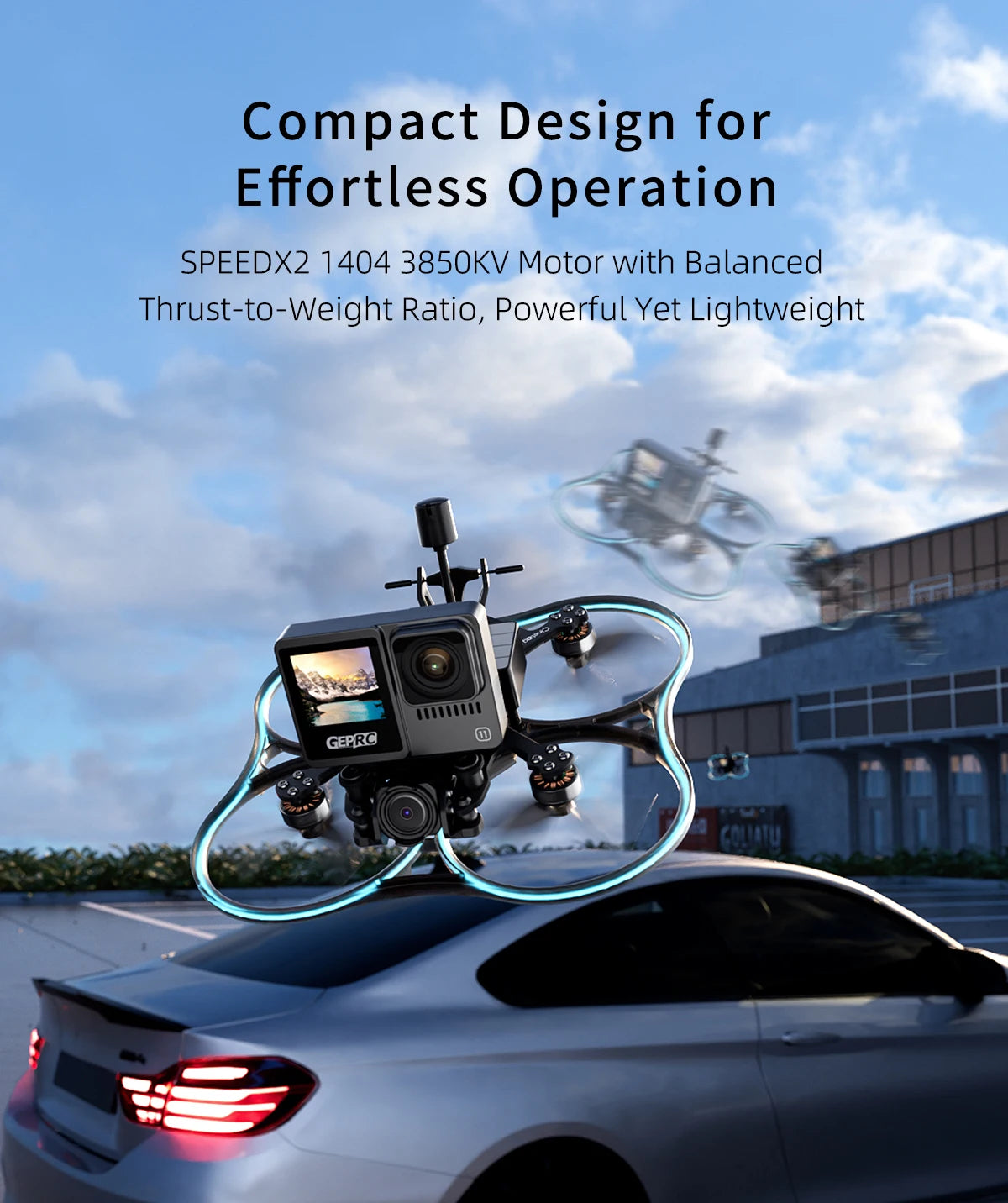

Powered by the TAKER F722 45A 32Bit AIO flight controller, 1404 3850KV motors, and HQprop DT76mm propellers, the Cinelog30 V2 offers up to 8'30'' of flight time with a LiHV 4S 720mAh battery. Compatible with Naked GoPro, Action2, and Insta360 cameras, it provides versatile shooting options.

Feature

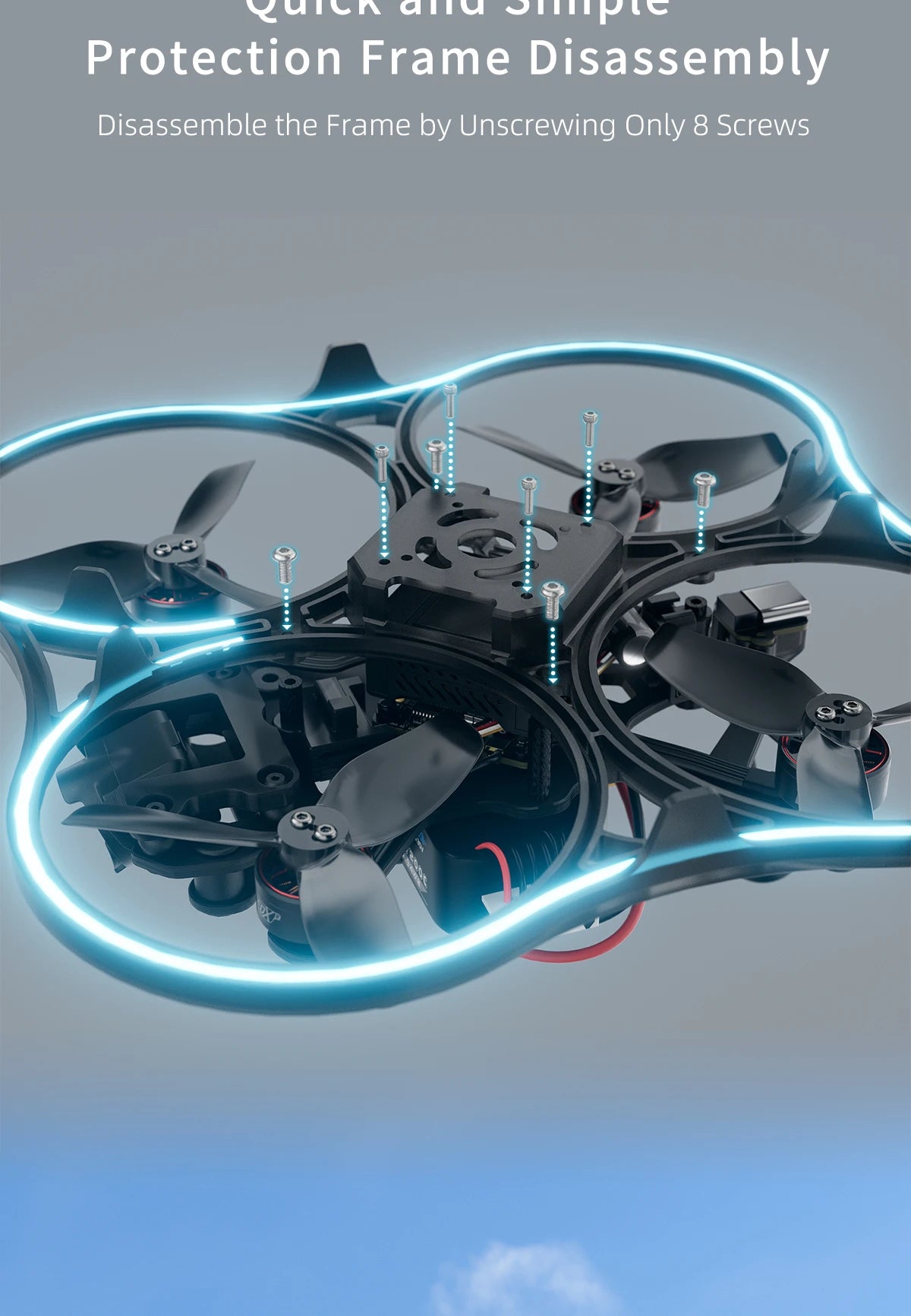

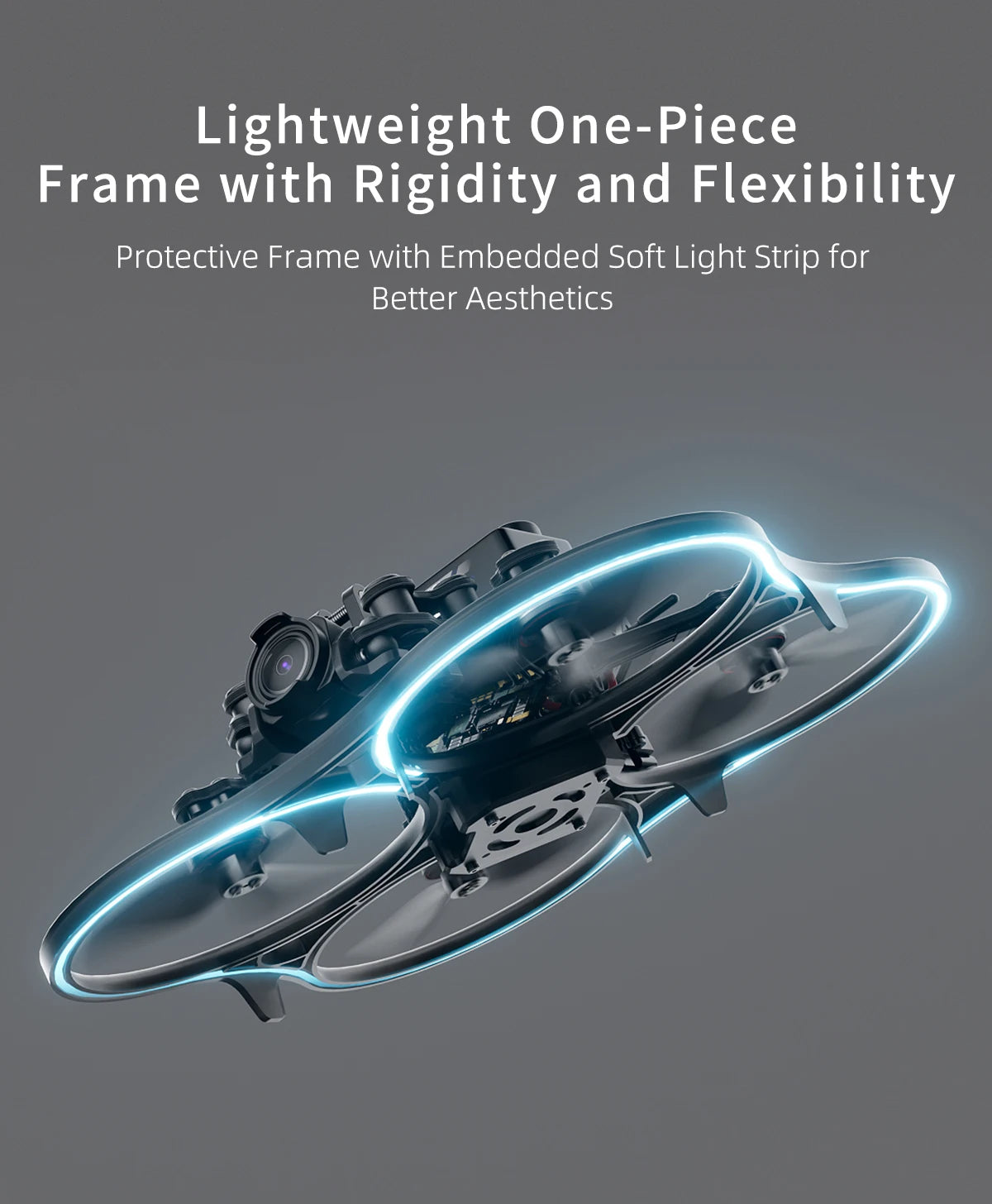

1. Constructed from advanced materials, the integrated frame is lightweight yet highly rigid.

2. Featuring a LiPo 4S 720mAh battery, the take-off weighs only 249g, complying with FAA regulations.

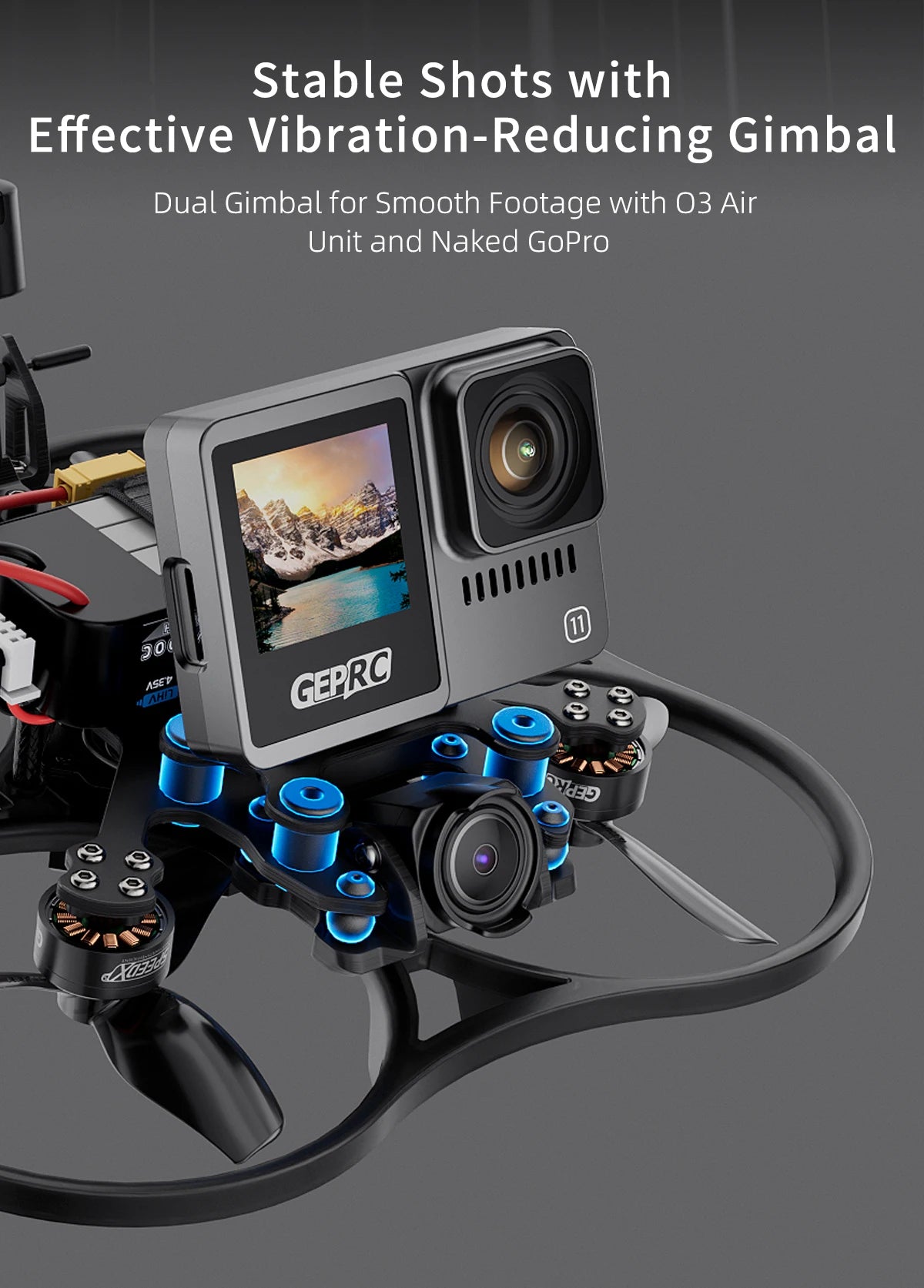

3. The shock-absorbing gimbal delivers smooth, stable footage with the O3 directly.

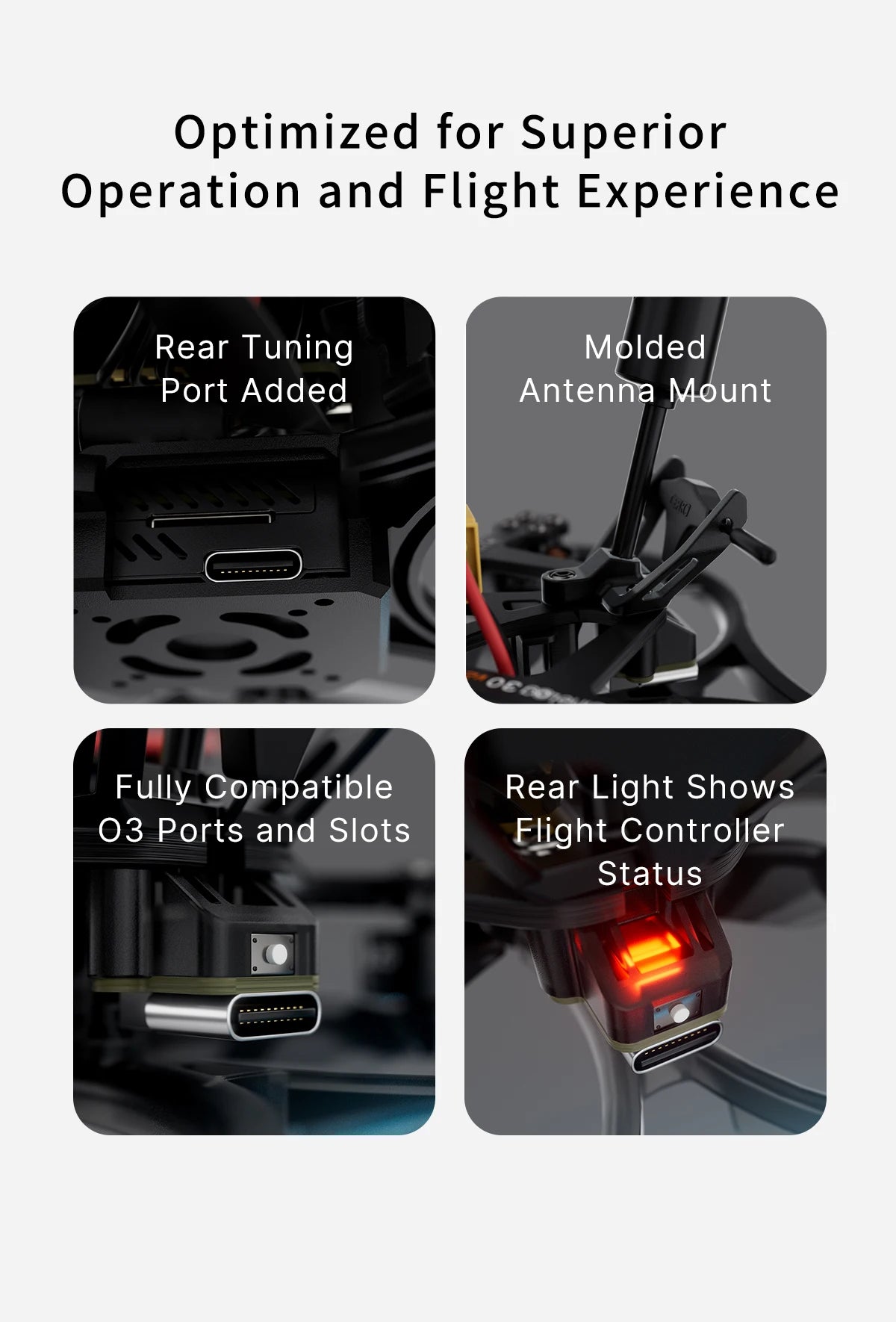

4. The rear USB port allows for easy parameter adjustments.

5. The O3-compatible memory card slot and optimized USB port simplify card removal.

6. Offers superior flying experience with a Naked GoPro.

7. Facilitate battery changing by fastening the battery with a CNC aluminum part and strap together.

8. The drone operates with minimal noise, and the protective frame reduces the risk of injury during impacts.

9. Fine-tuned by the GEPRC team, it offers a refined flying experience with up to 8'30'' of flight time.

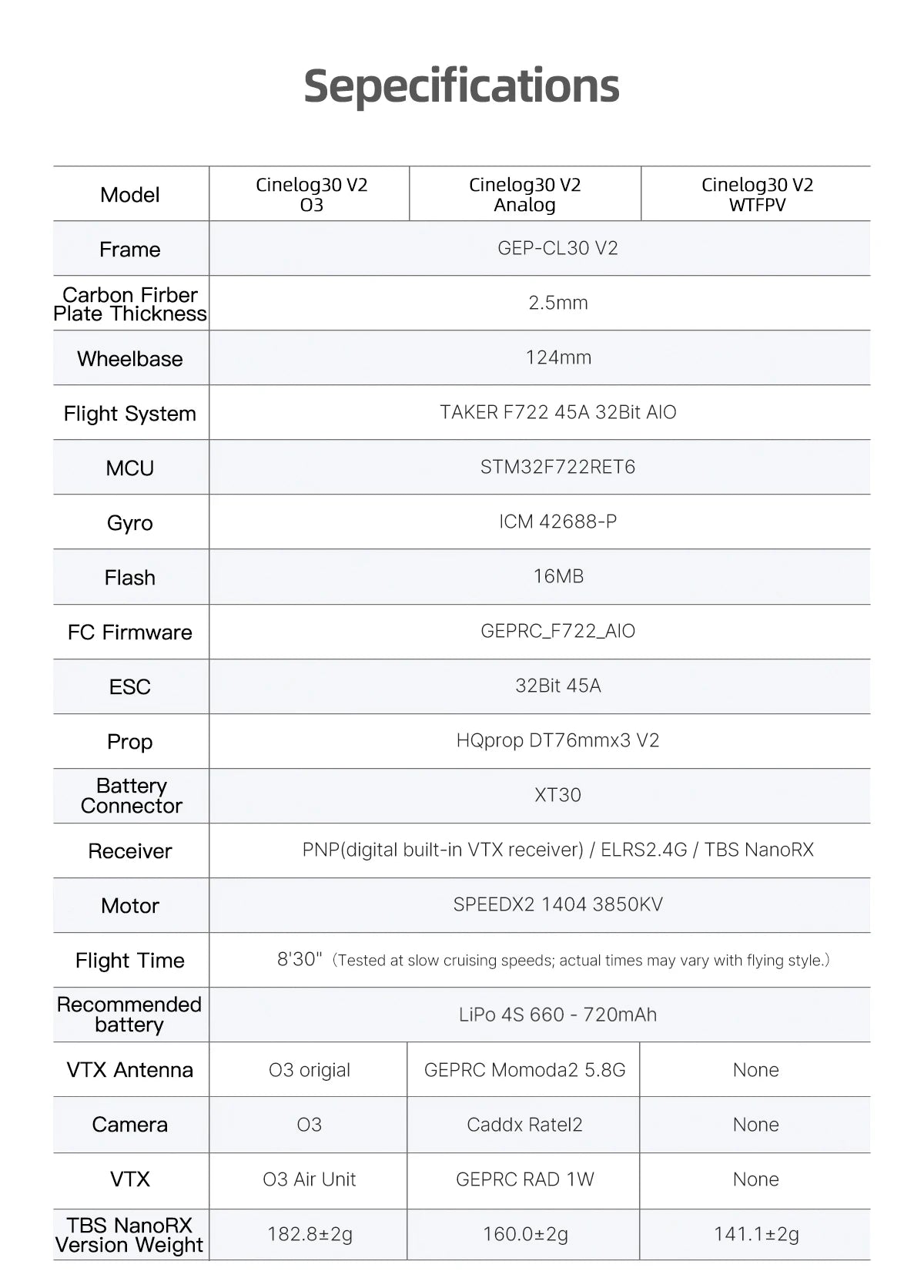

Specifications

• Model: Cinelog30 V2 O3 Quadcopter

• Frame: GEP-CL30 V2

• Carbon Plate Thickness: 2.5mm

• Wheelbase: 124mm

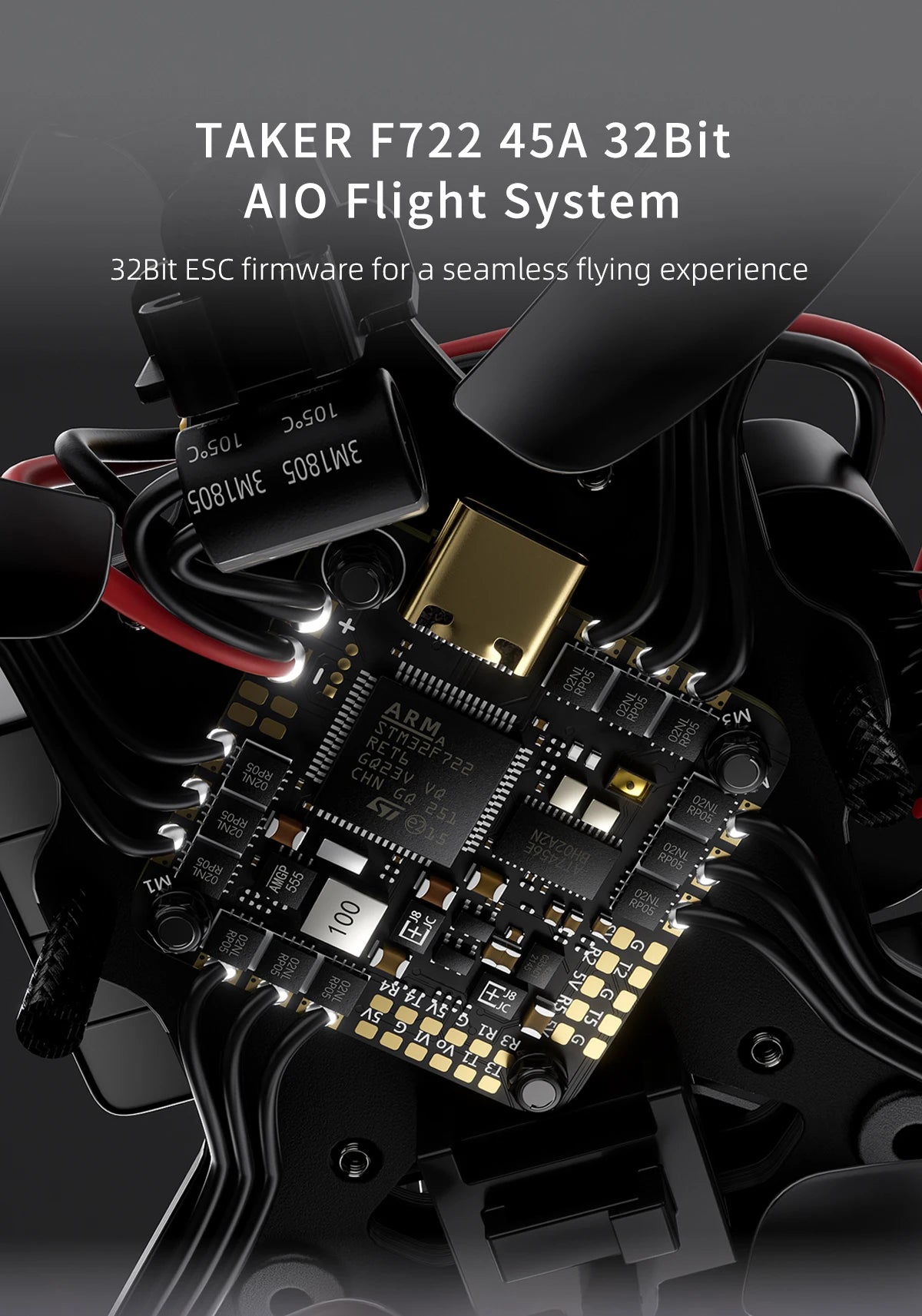

• Flight System: TAKER F722 45A 32Bit AIO

• MCU: STM32F722RET6

• Gyroscope: ICM 42688-P

• FC Firmware: GEPRC_F722_AIO

• Flash: 16MB

• ESC: 32Bit 45A

• Motor: SPEEDX2 1404 3850KV

• Propeller: HQprop DT76mmx3 V2

• Battery Connector: XT30

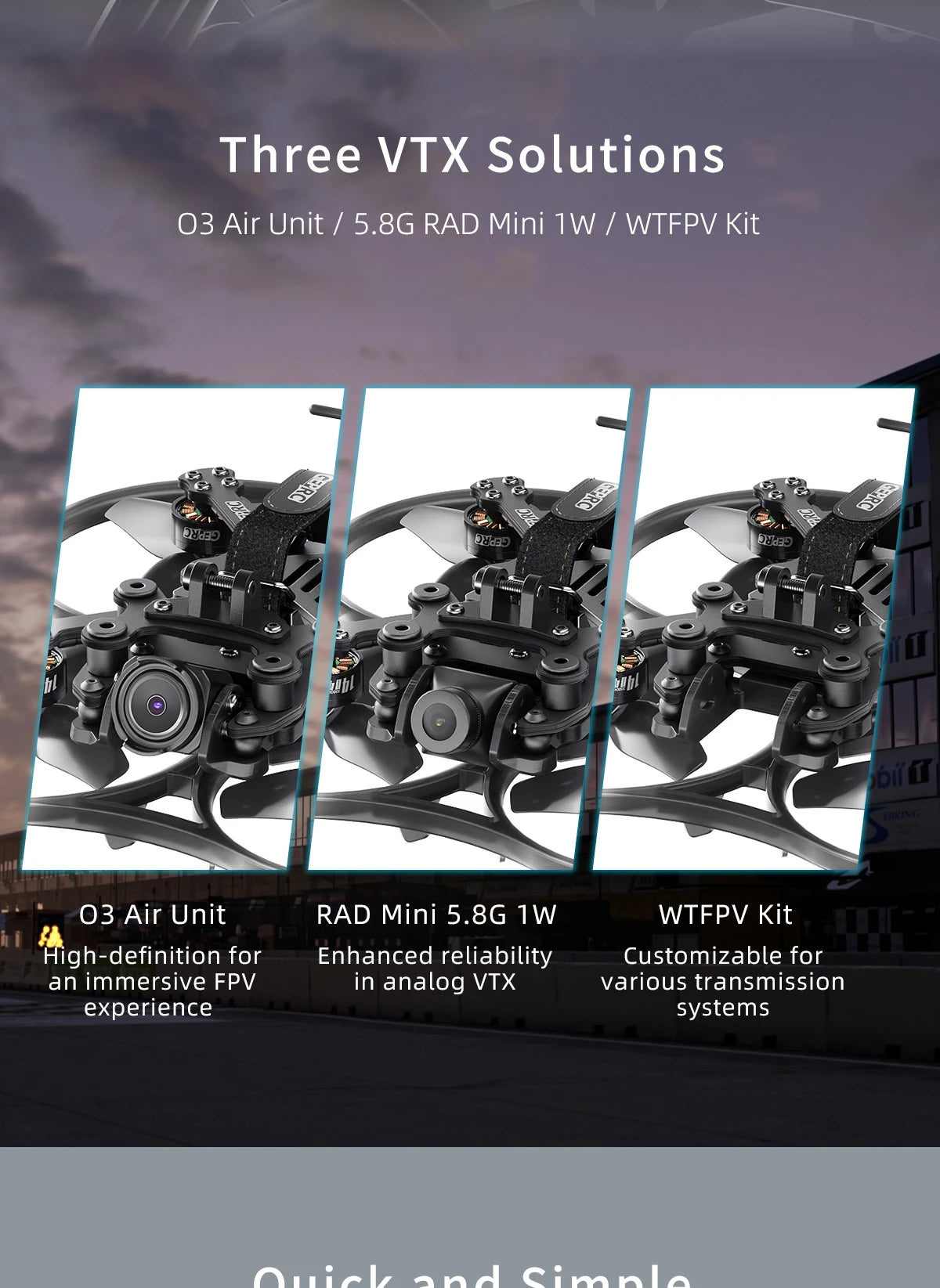

• VTX: O3 AIR Unit

• Camera: O3

• Antenna: O3 original

• Receiver: PNP(digital built-in receiver) / ELRS2.4G / TBS NanoRX

• TBS NanoRX Version Weight: 182.8g

• Recommended Battery: LiHV 4S 660mAh-720mAh

• Flight Time: 6'- 8'30; (based on low-speed cruising, actual time varies with flying style)

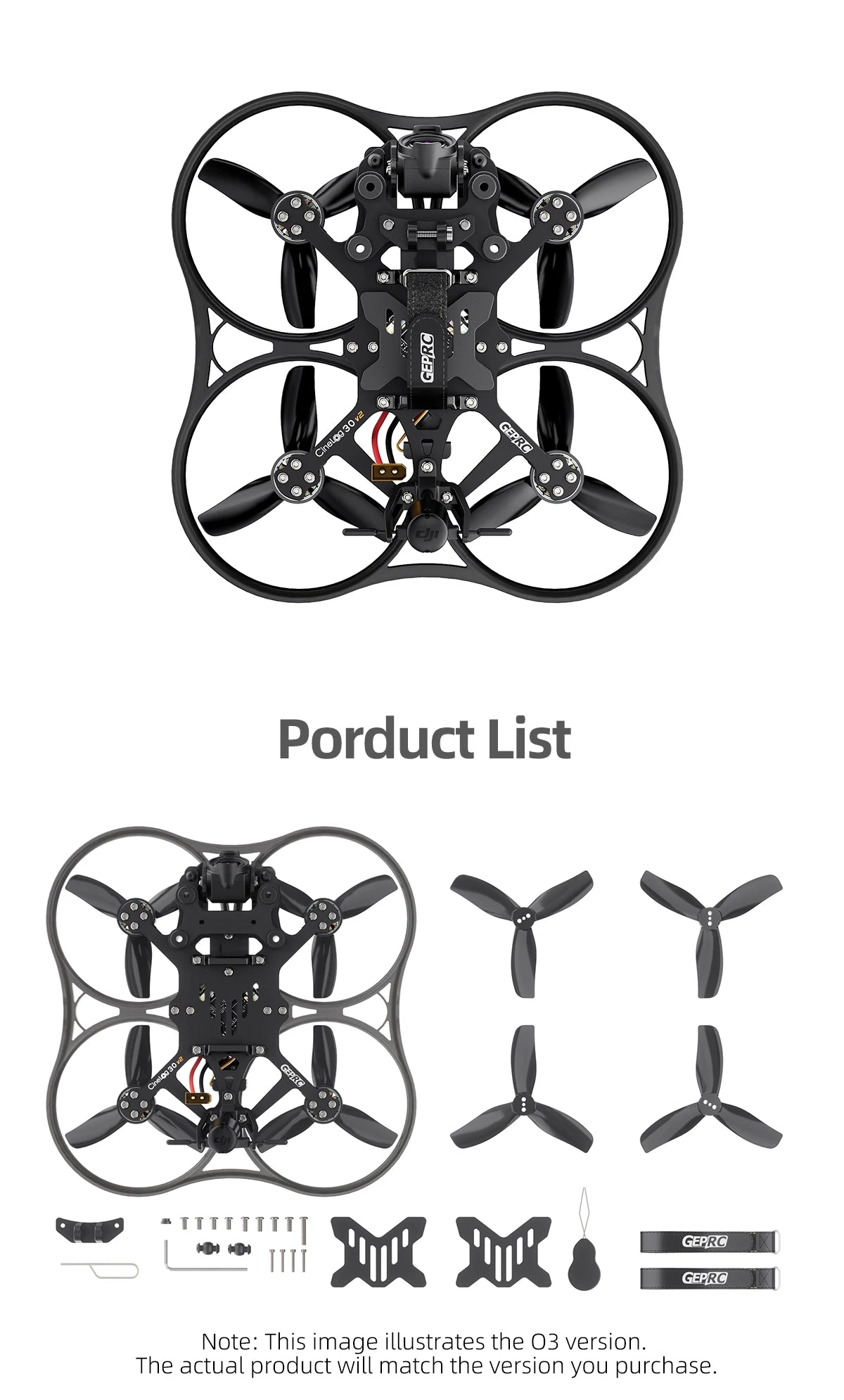

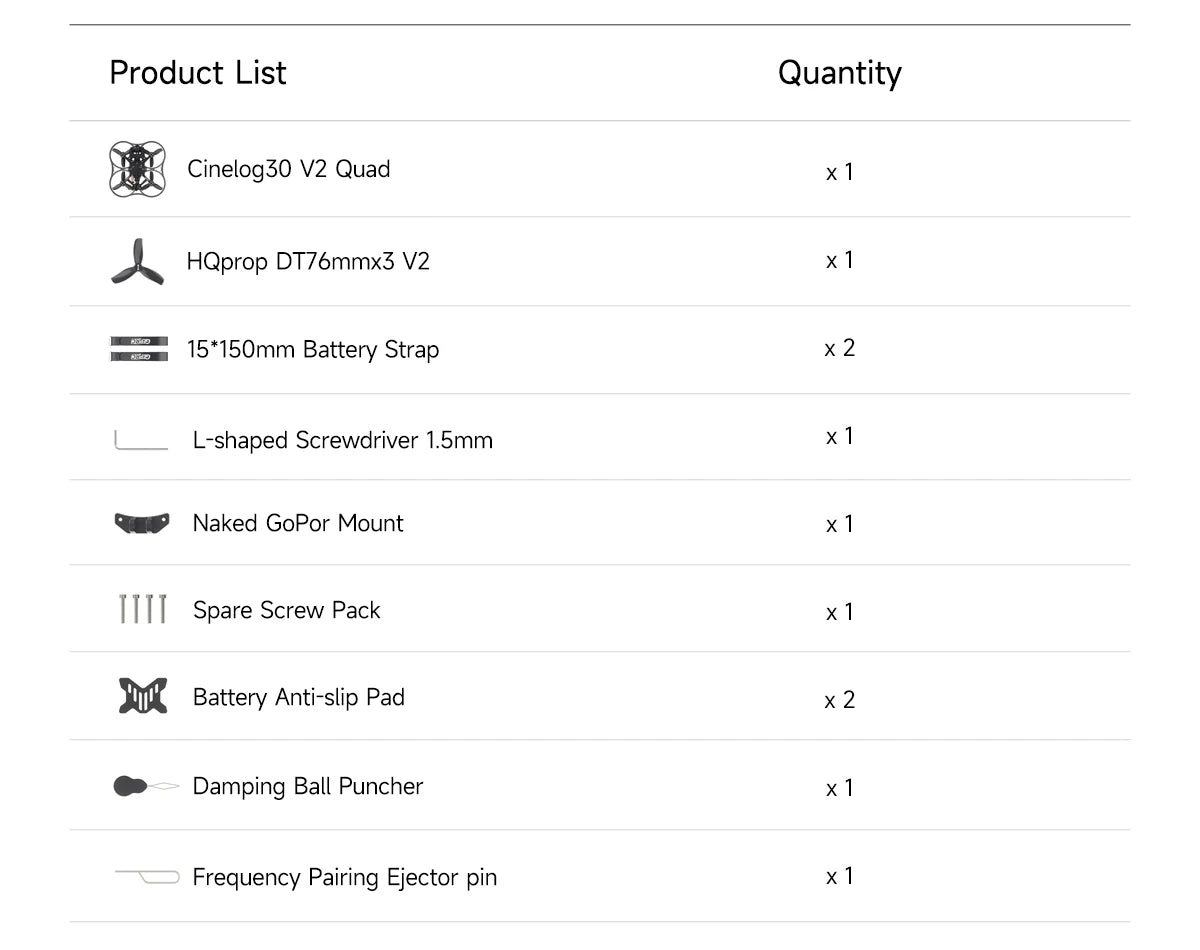

Includes

1 x Cinelog30 V2 Quadcopter
1 x HQprop DT76mmx3 V2 propeller (pack）
2 x 15*150mm battery straps
1 x L-shaped screwdriver 1.5mm
1 x Spare screw pack
2 x Battery anti-slip pads
1 x Damping ball puncher
1 x Frequency pairing ejector pin
1 x Naked GoPro mount

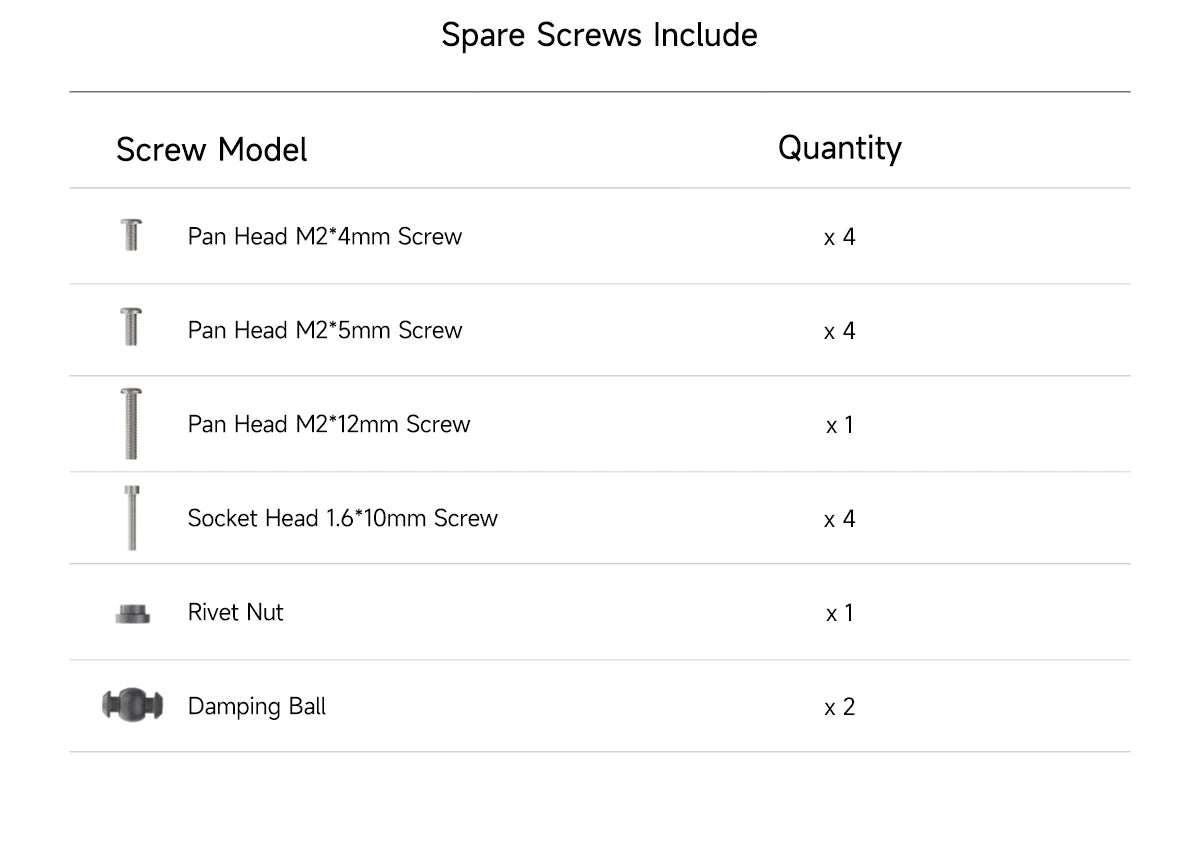

Spare Screws Include:
4 x M2*5mm Pan-Head screws
1 x Swage nut
4 x M2*4mm Pan-Head screws
4 x 1.6*10mm screws
2 x O3 damping balls

----------------Warranty Policy--------------

Warranty Policy Does NOT Cover What?

Crashes or fire damage caused by non-manufacturing factors, including but not limited,to pilot errors. Water damage or other damages caused by improper installation,incorrect use,or operation not in accordance with officialinstructions or manuals.
Damage caused by a non-authorized service provider.
Damage caused by unauthorized modification of circuits and Error weld mismatch or misuse of the battery and charger.

Damage caused by operation in bad weather (i.e. strong winds,rain,snow,sand/dust storms,etc)

• Damage caused by operating the product in an environment with electromagnetic interference

• (i.e. in mining areas or closeto radio transmission towers,high-voltage wires,substations,etc.)

• Damage caused by operating the product in an environment suffering from interference from other wireless devices (i.etransmitter, video-downlink,Wi-Fi signals,etc.)

• Damage caused by a crashes when components have aged or been damaged.

• Damage caused by operating the unit with a low charge or defective battery of any form.

• Damage resulting from any non-GEPRC technical or other support(online community for example),such as assistance with;how-to; questions and or inaccurate product set-up and installation.

• GEPRC is not responsible for issues involving 3rd party products and warranty. For example with issues involing Caddx and D J l,the customer must get warranty support directly from the 3rd party company

Purchasing Matters needing attention

1.When players purchase model aircraft products,they need to understand the relevant basic operation knowledge

2.Model aircraft have certain dangers,children need to touch the model under the supervision of adults. Make sure the flying environment is safe and away from people when flying the model

3.When flying in the outer field,you should pay attention to the relevant regulations of the local government or relevant management agencies to avoid unnecessary losses.

4.Before flying the model,please ensure that the model is securely connected,all equipment is working properly,and all control actions are responding normally to avoid accidents.

5.In the store to purchase model products abnormal situation can not be solved,please contact customer service technical support for help,such as do not consult technical support to solve their own or do not operate according to technical support guidance caused by the loss and accident the store does not assume responsibility for compensation.

6.The model aircraft model has a certain risk,please be sure to operate in a safe situation,your purchase behavior represents that you have recognized the above situation and bear the corresponding responsibility,the improper use of products,did not pay attention to safety caused by the loss and injury,the store does not b
