SPECIFICATIONS
Aerial Photography: No
Anti-wind Ability: other
Brand Name: AIRFORTH
Camera Mount Type: Other
Control Channels: 2 CHANNELS
Controller Battery: other
Controller Mode: MODE1,MODE2
Drone Weight: other
Flight Time: <5
High-concerned chemical: None
Indoor/Outdoor Use: Indoor-Outdoor
Is Batteries Included: No
Is Electric: No Battery
Material: Plastic
Origin: Mainland China
Package Includes: Original Box
Recommend Age: 14+y
Remote Control: No
Remote Distance: other
Takeoff Weight: other
Transit Time (Days): other
Video Capture Resolution: Other
Summary

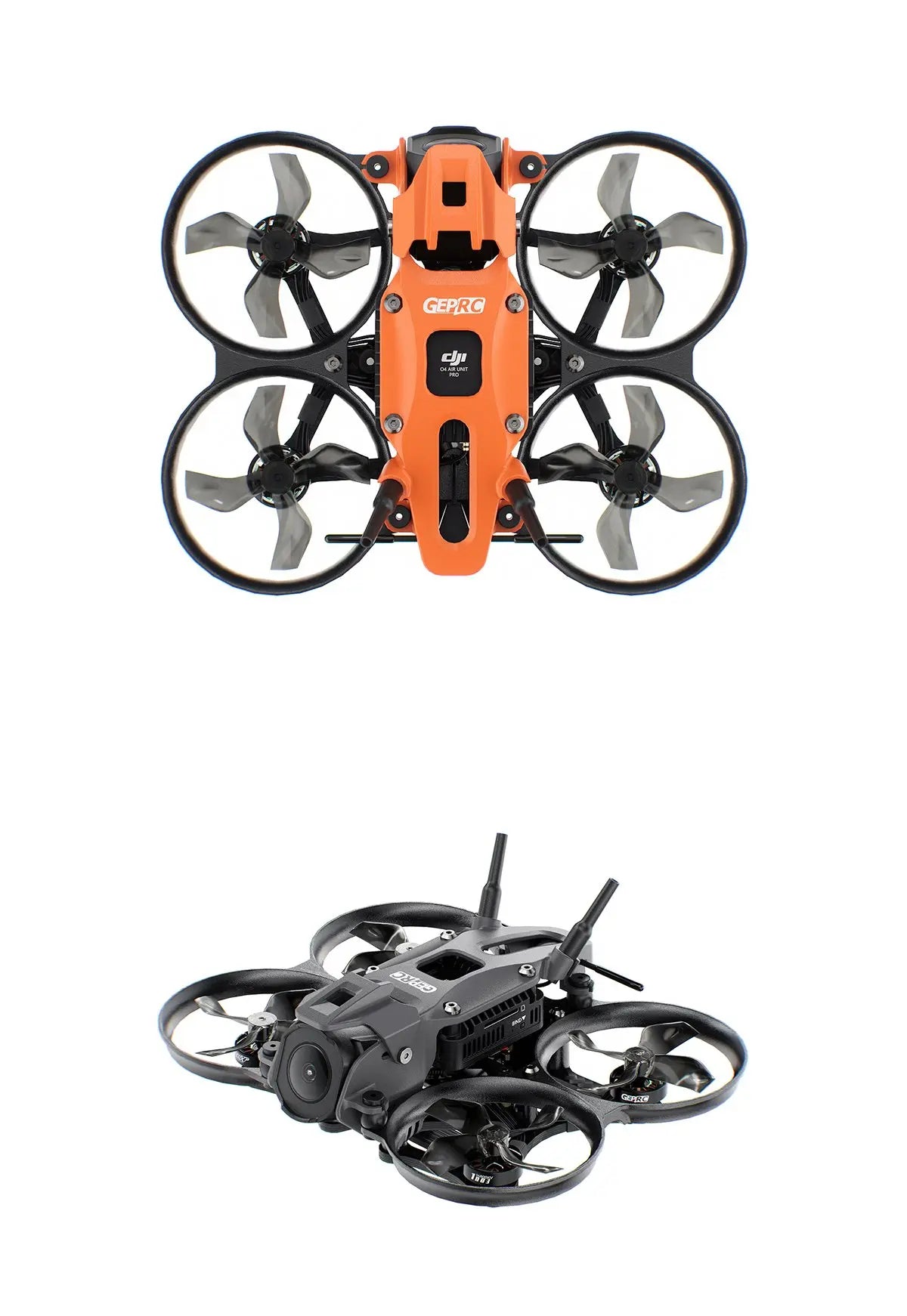

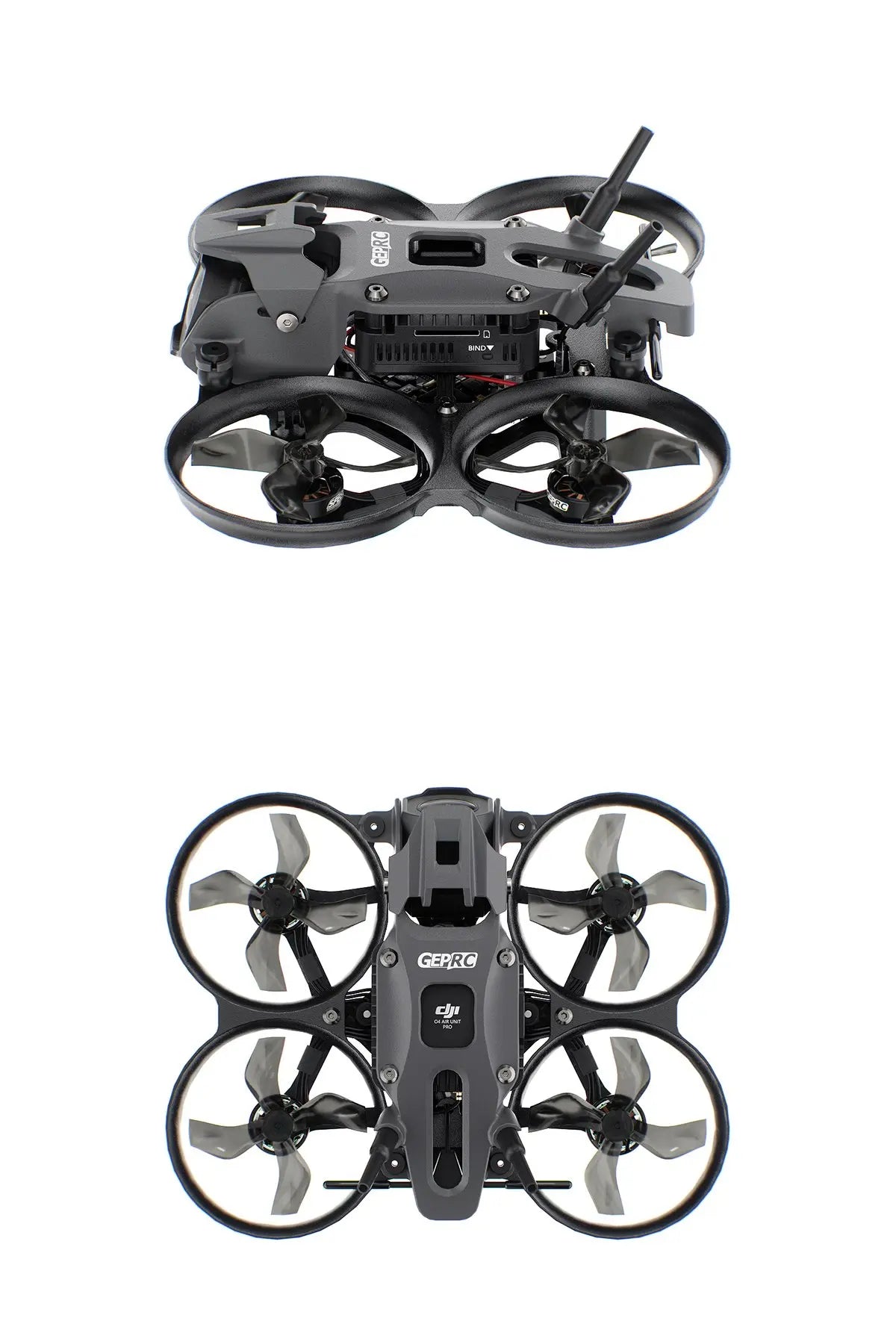

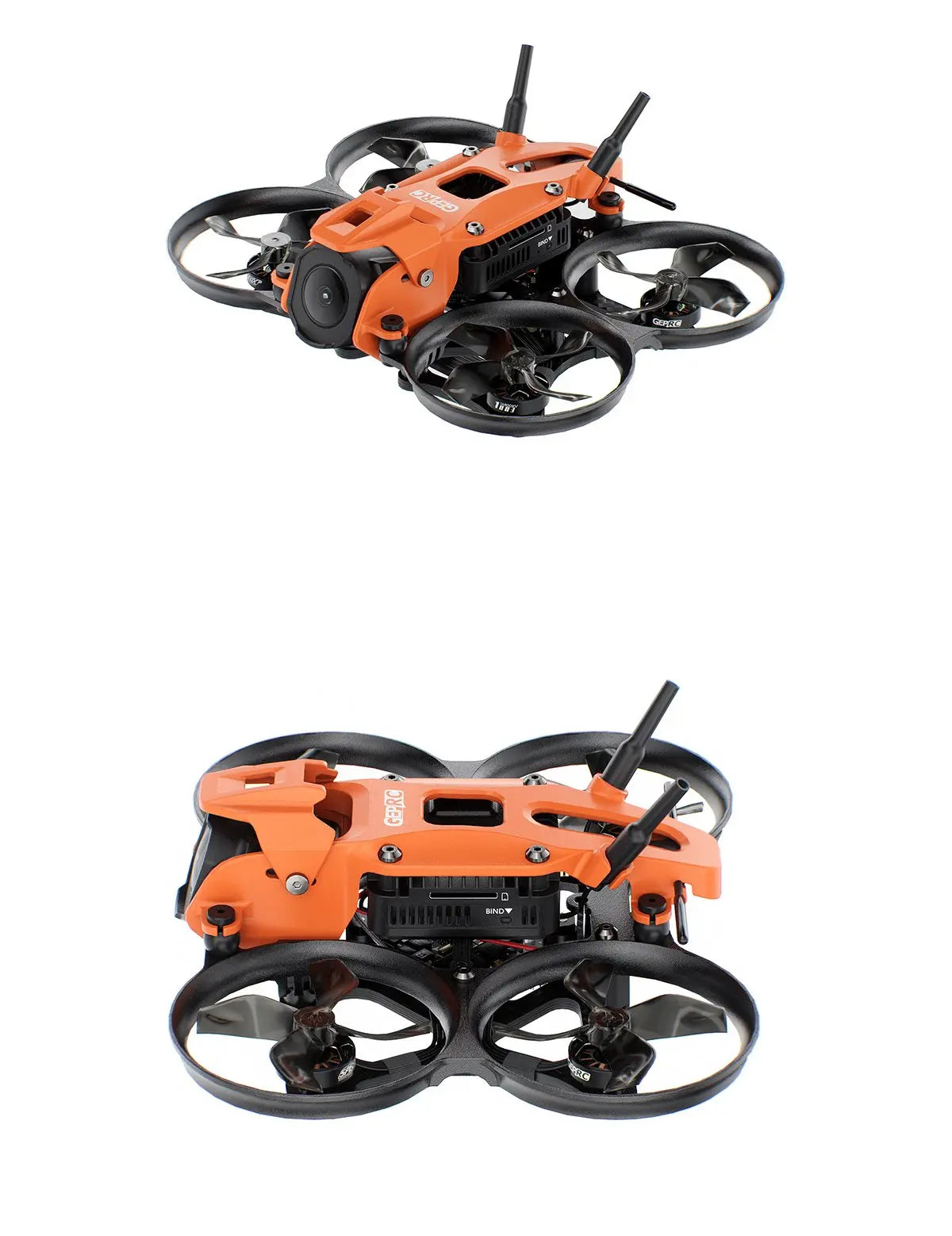

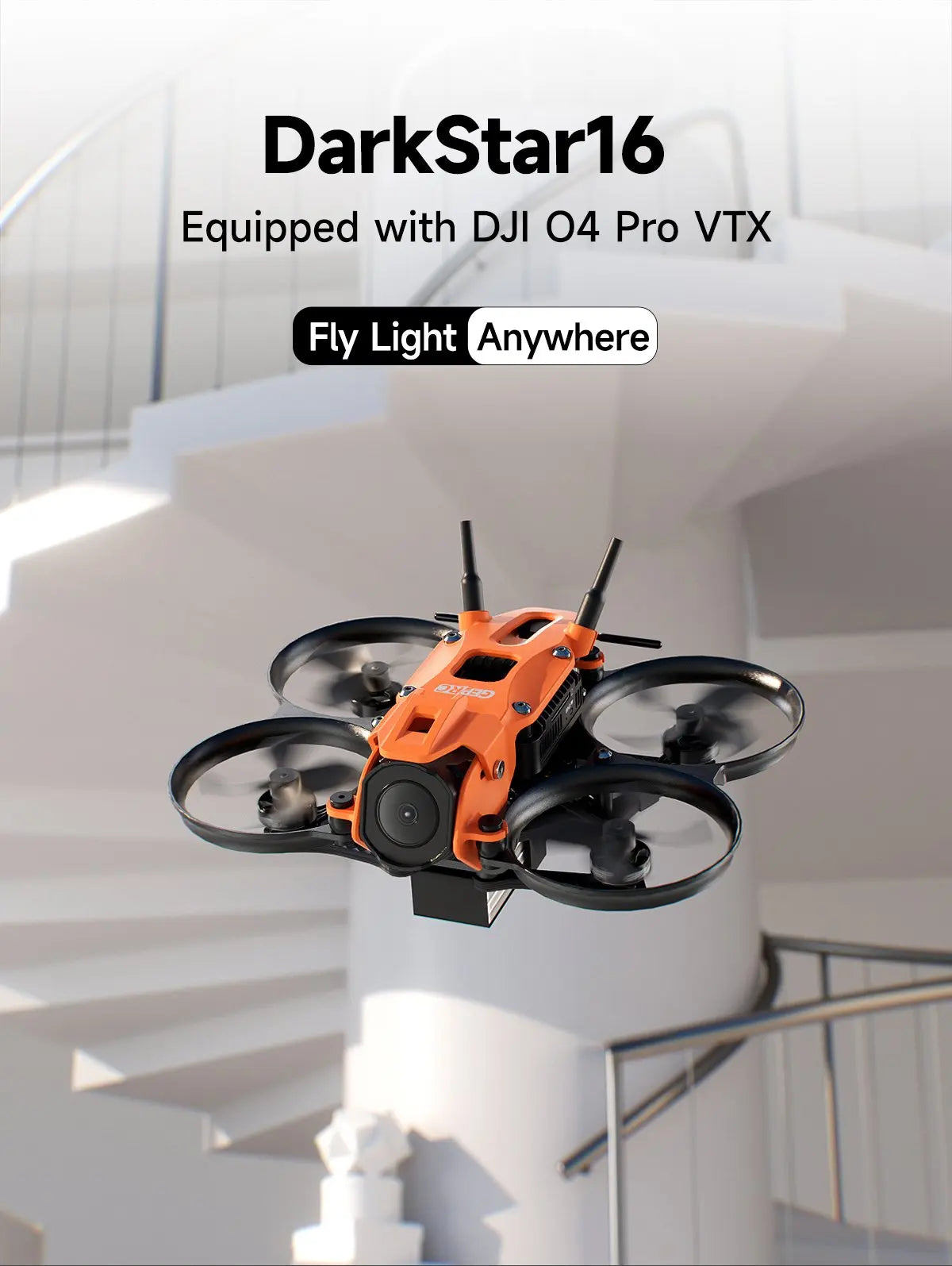

The Darkstar16 is GEPRC’s latest TinyWhoop, designed for flexible, on-the-go flying.

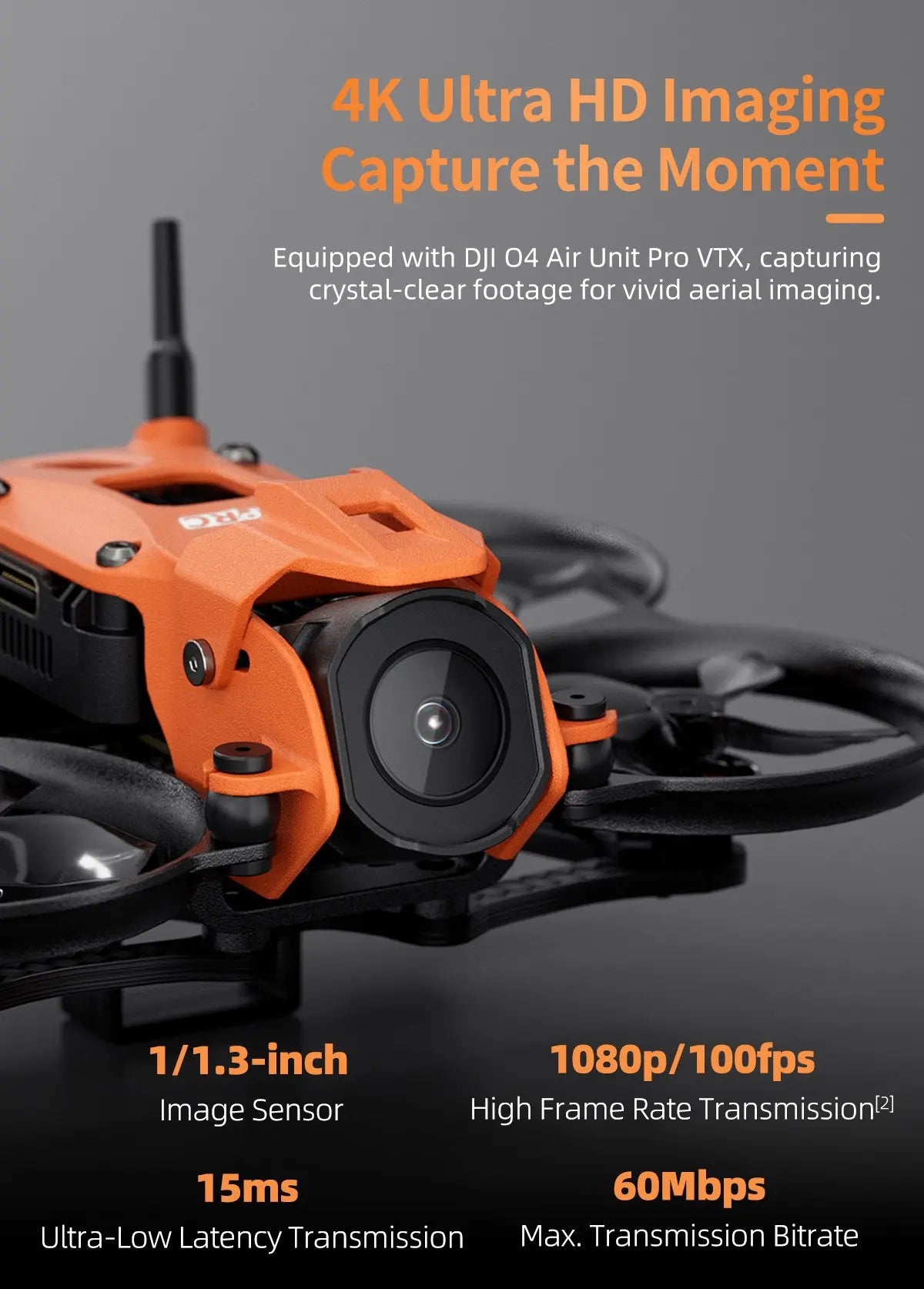

Featuring a 1.6-inch frame and the DJI O4 Air Unit Pro system, it comes equipped with a larger CMOS sensor that delivers sharper, clearer images and improved low-light performance.
The modular VTX, combined with an integrated top cover and four-point damping ball system, effectively filtering out resonances and reducing the jello effect in footage, ensuring stable and clear imaging.
The Darkstar16 offers a high-performance, creative flight experience.

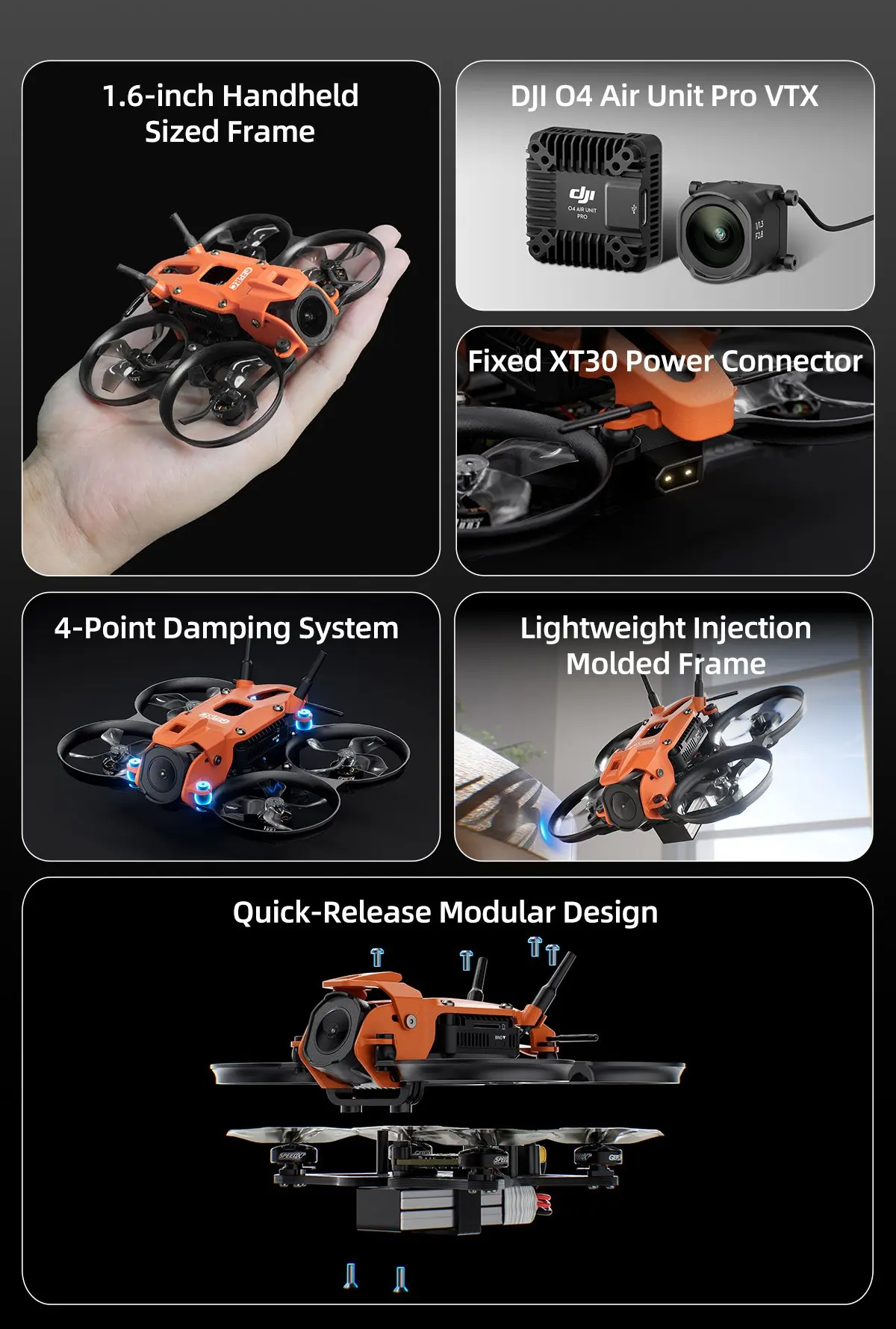

Feature
- The integrated four-point damping system ensures stable aerial imaging, empowering limitless creativity.
- Quick-release design lets you detach the VTX module by removing just 6 screws.
- Equipped with the DJI O4 Air Unit Pro, featuring a larger CMOS for clearer images and better low-light performance.
- Lightweight molding strikes a balance between durability and performance.

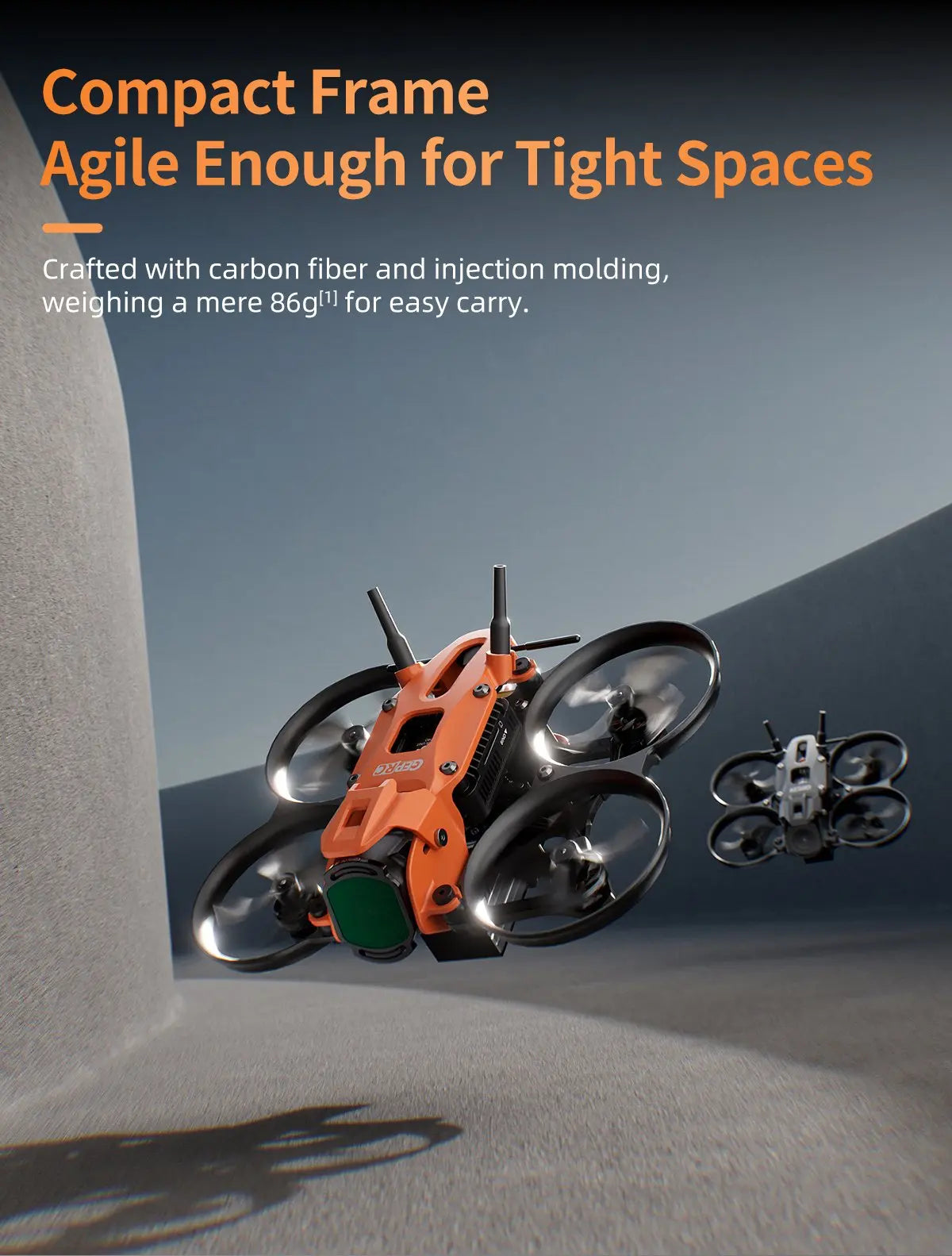

- The compact 1.6-inch frame offers portability for efficient filming.
- The fixed XT30 power connector ensures simple on/off operation.

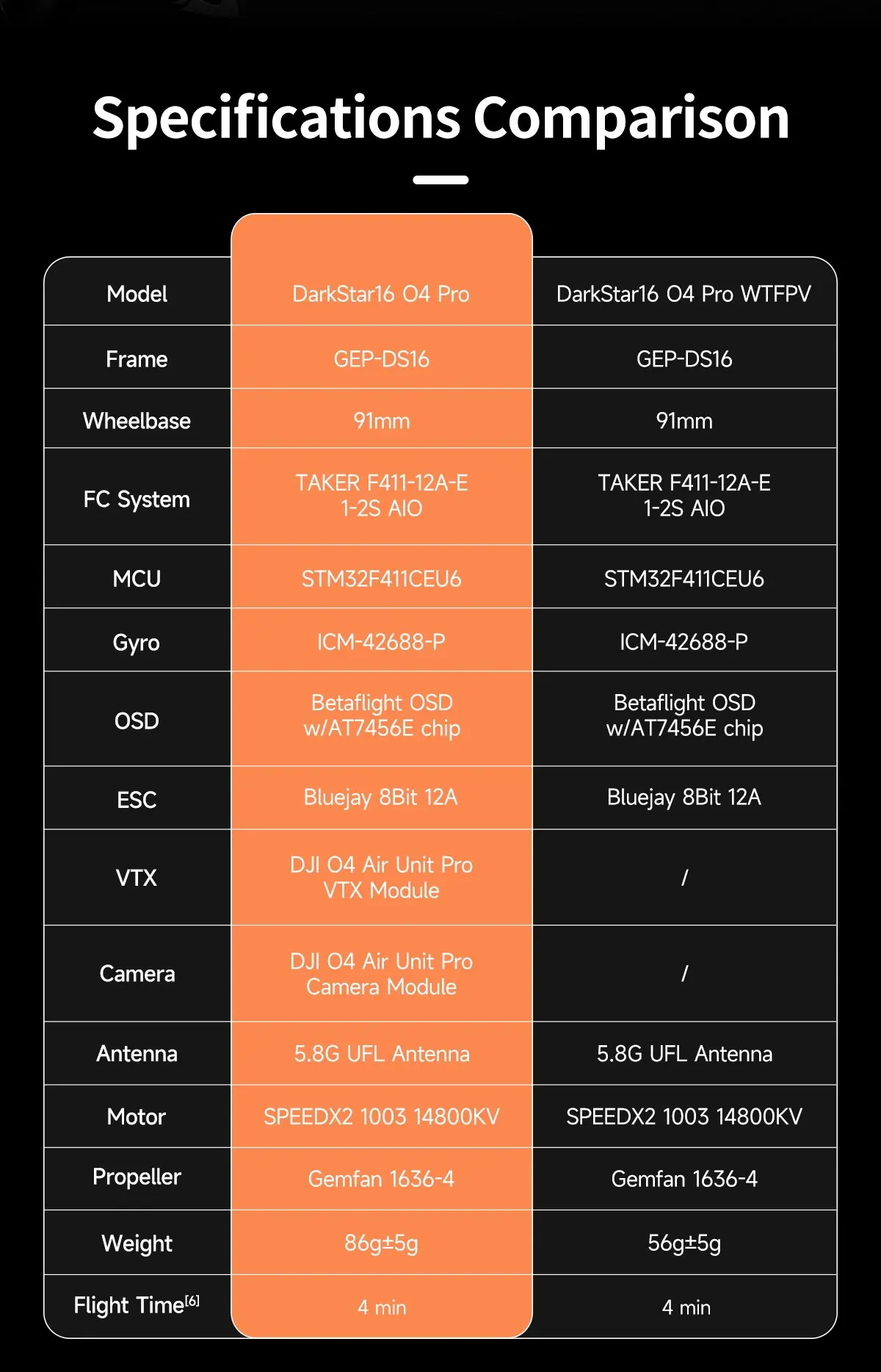

Specifications
- Model: DarkStar16 O4 Pro
- Frame: GEP-DS16
- Wheelbase: 91mm

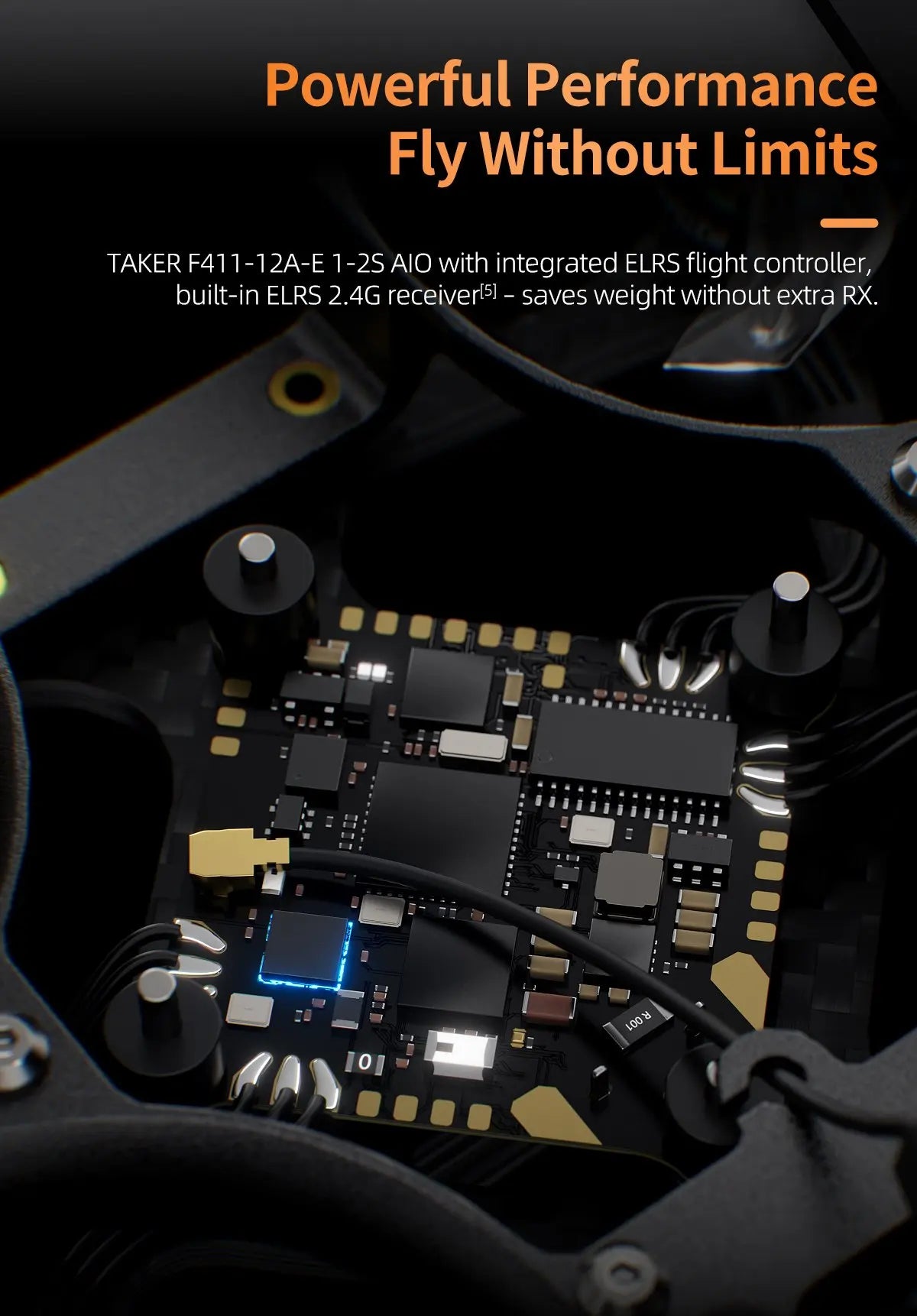

- FC System: TAKER F411-12A-E 1-2S AIO
- MCU: STM32F411CEU6
- Gyro: ICM42688-P
- OSD: Betaflight OSD w/AT7456E chip
- ESC: Bluejay 8Bit 12A
- VTX: DJI O4 Air Unit Pro VTX Module
- Camera: DJI O4 Air Unit Pro Camera Module
- Antenna: 5.8G UFL antenna

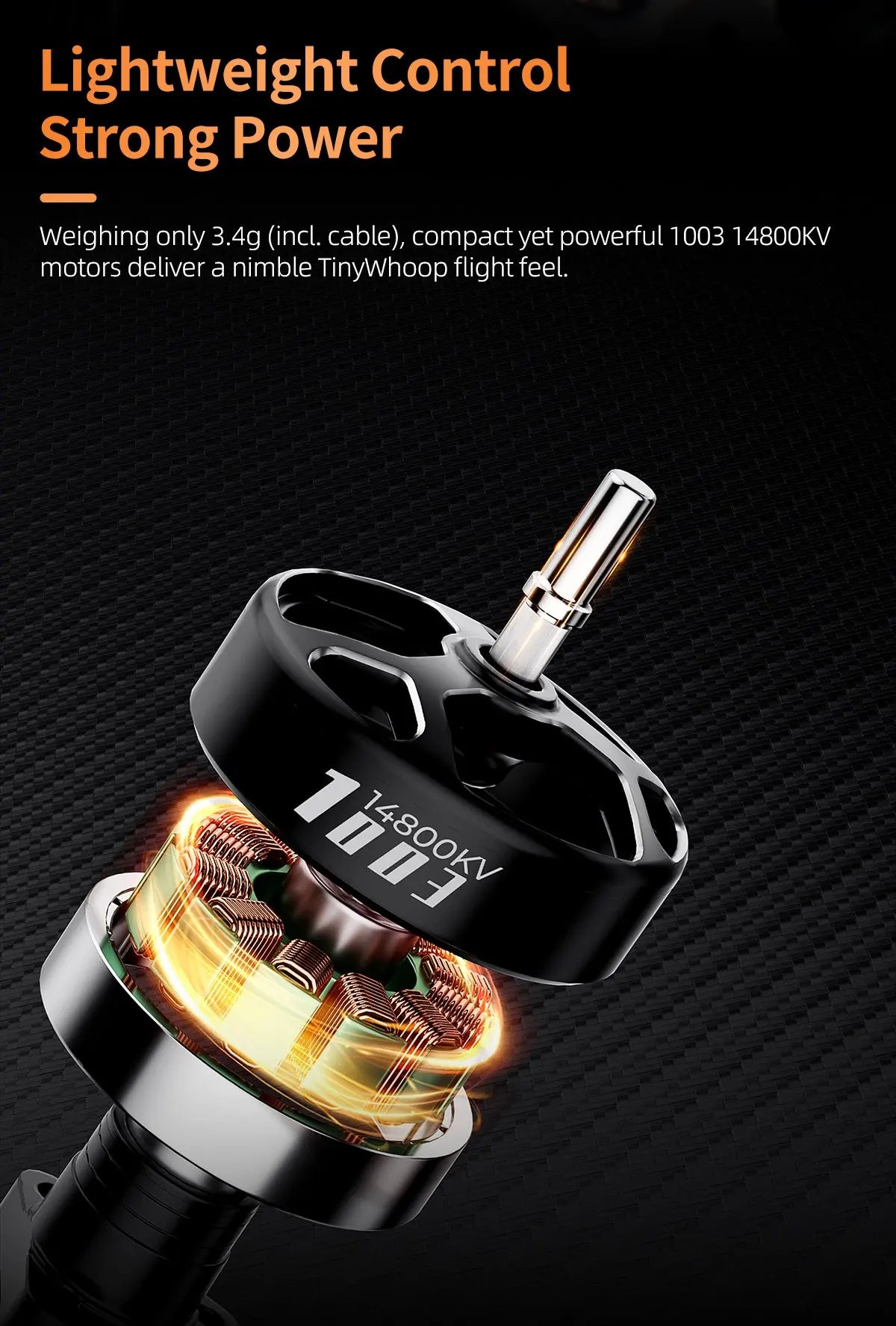

- Motor: SPEEDX2 1003 14800KV
- Propeller: Gemfan1636-4
- DarkStar16 O4 PNP (Built-in O4 air unit Pro receiver) Version Weight: 86g±5g
- Receiver: PNP / ELRS2.4G
- Recommended battery: LiHV 2S 530mAh
- Flight time: 4′00″ (with LiHV 2S 530mAh battery, low-speed indoor cruising）

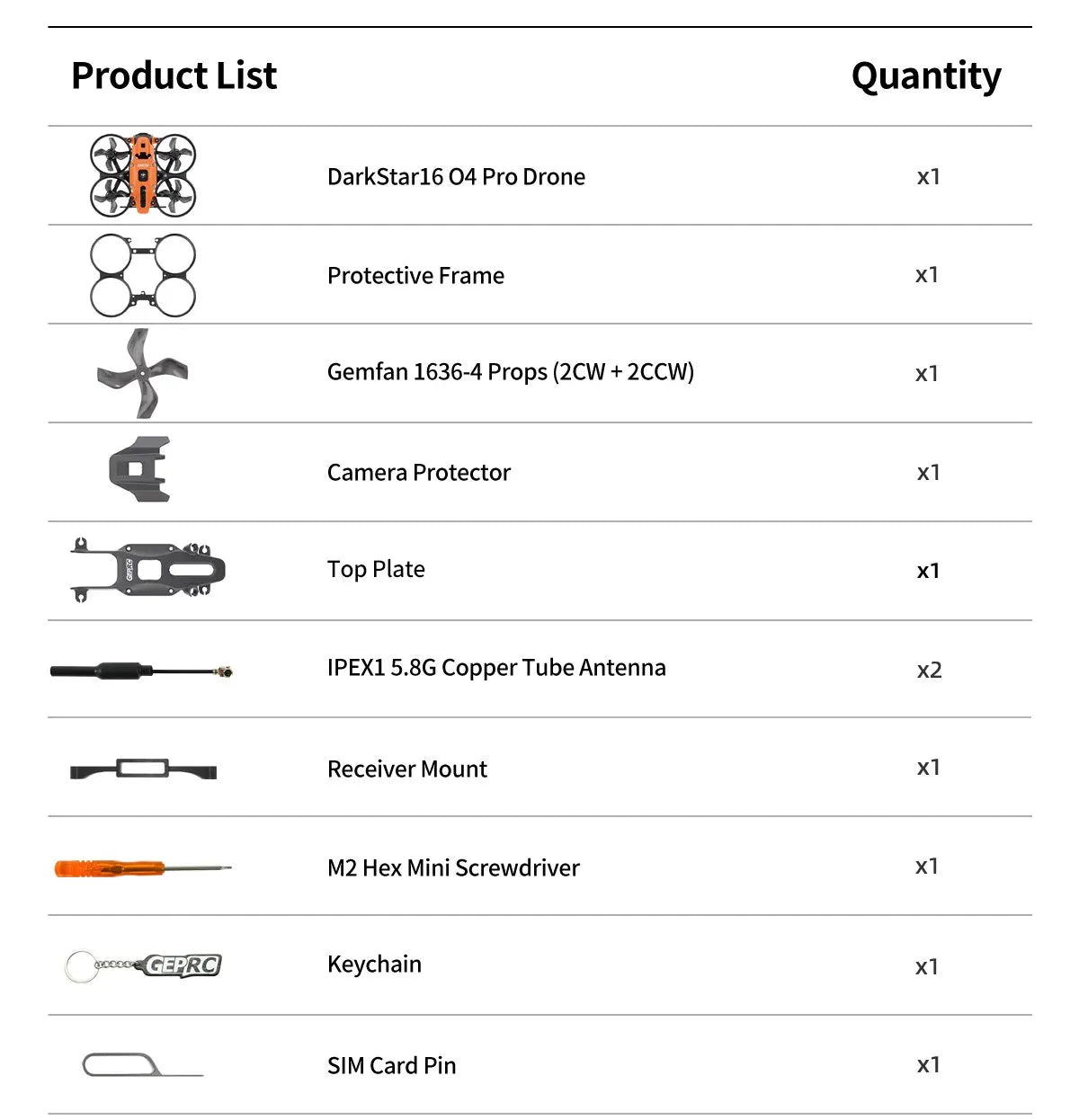

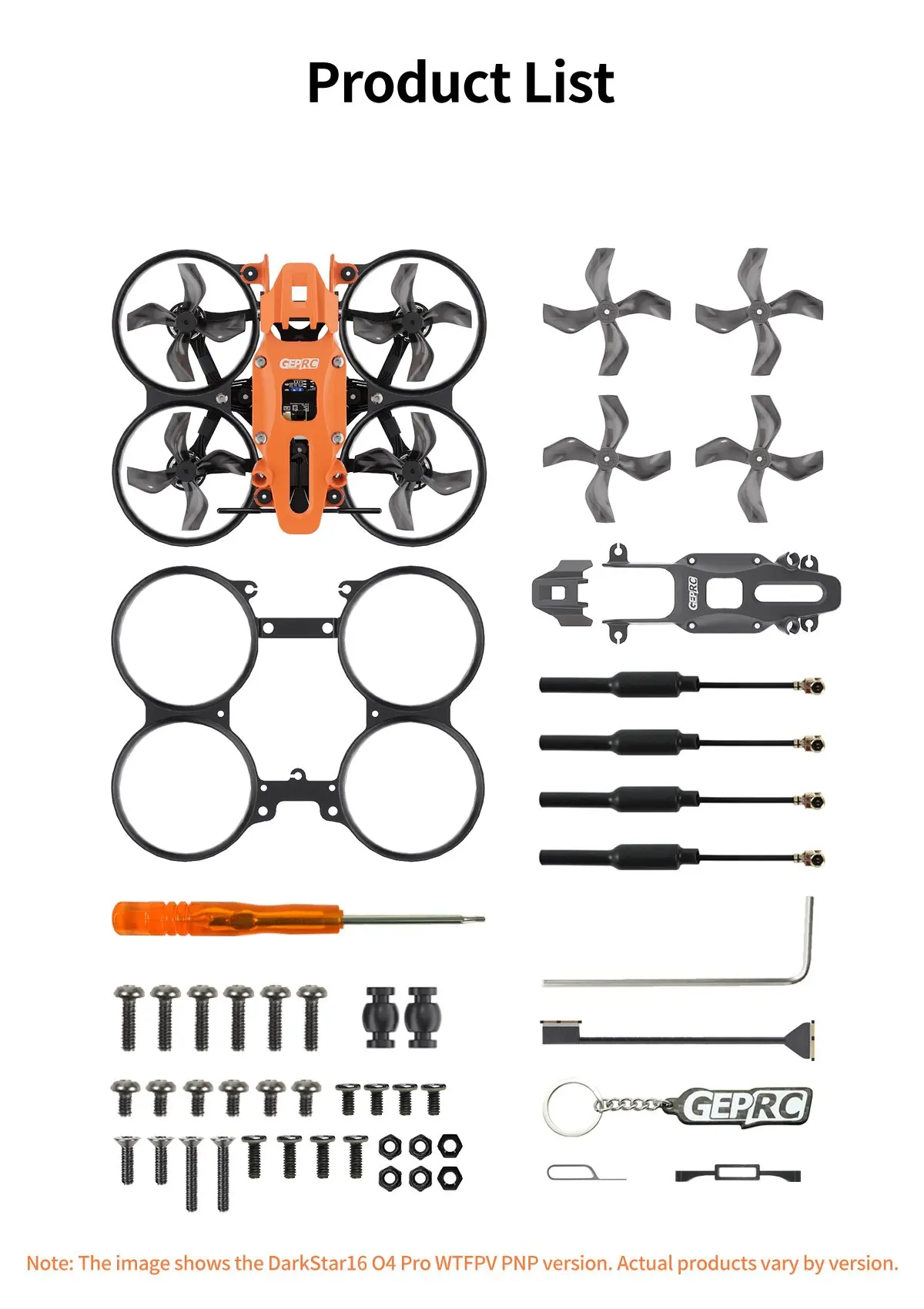

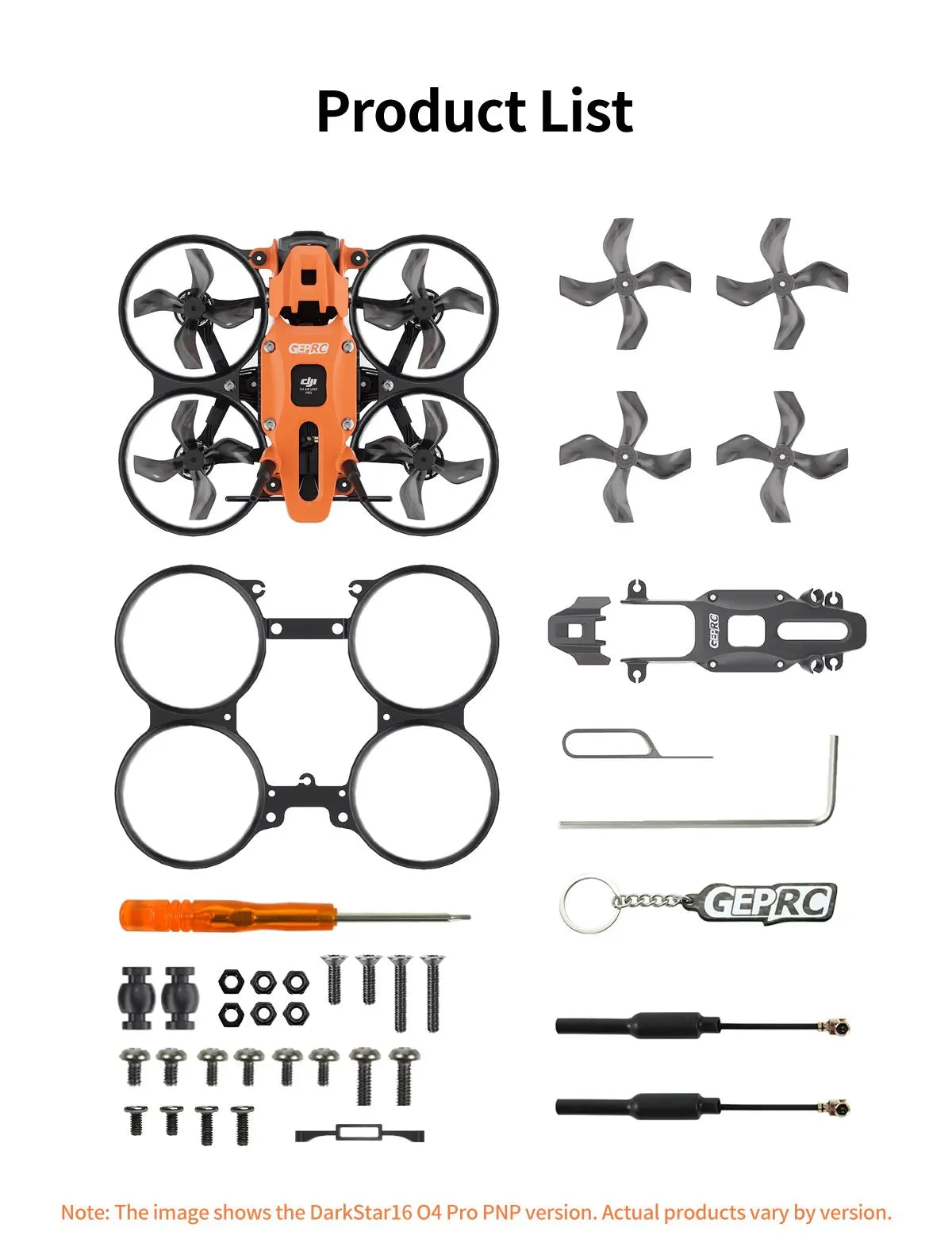

Includes
1 x Darkstar16 top plate (grey）
1 x Darkstar16 camera protector (grey)
1 x Darkstar16 protective frame (black)
1 x Gemfan1636-4 (2CW+2CCW)
1 x Plum screwdriver

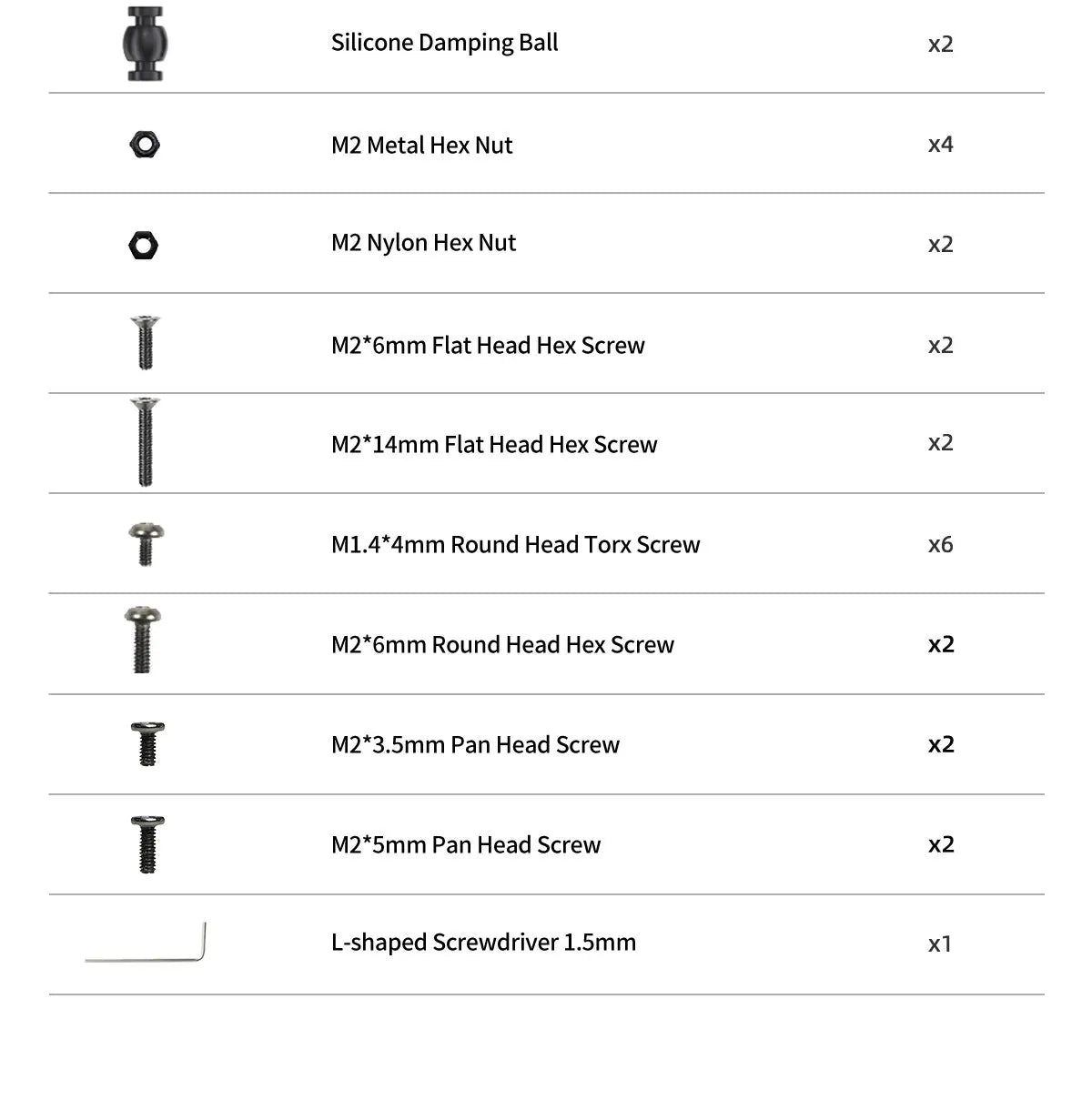

1 x Spare screw pack
1 x Keychain
